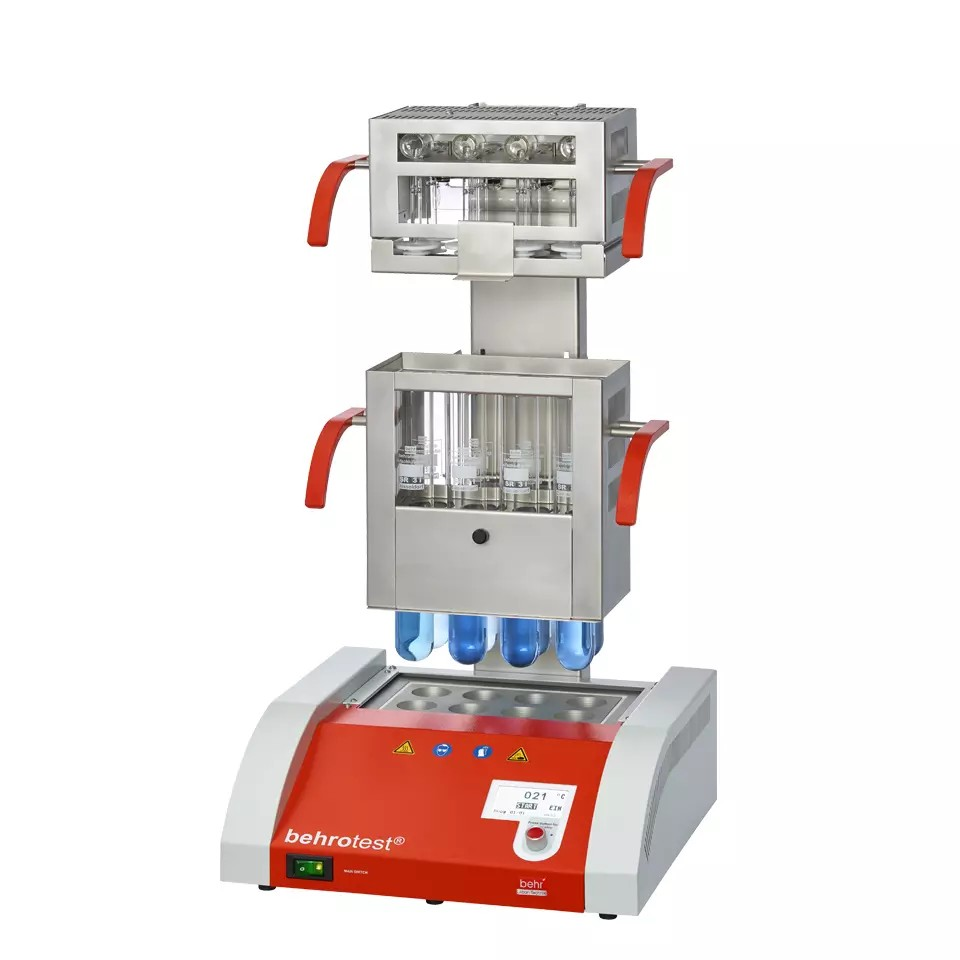

BEHR Behrotest® Kjeldahl Block Digestion system, Automatic Lift
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Sample Processing, Nitrogen Determination | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Behr Labor-Technik | ||
| Product Grade | Analytical grade | ||
The BEHR behrotest® Kjeldahl Block Digestion Systems with Automatic Lift represent the next generation of safe, efficient, and automated Kjeldahl digestion.
Engineered for both 100 mL (micro) and 250 mL (standard) digestion vessels, these systems combine powerful block heating, automated sample lifting, and intelligent digital control to ensure precision, safety, and user convenience.
Available in four configurations — K 12 L, K 20 L, K 24 L, and K 40 L — the K-Block Lift series eliminates manual handling of hot sample racks and acids, enhancing both laboratory safety and efficiency.
Key Features
1. Fully Automatic Lift System
- Integrated automatic sample lift removes the need for manual handling of heavy, hot digestion racks.
- Lift mechanism raises the rack and extraction hood after digestion for cooling and safety.
- Programmable cooling and extraction time for consistent, hands-free operation.
2. Smart Control & Connectivity
- behr one-button operation for intuitive programming of temperature and time profiles.
- Windows-compatible software enables bi-directional transfer of methods and programs between the system and PC.
- Supports up to 25 freely configurable digestion programs.
- USB interface for data storage, profile transfer, and documentation.
3. Intelligent Heating & Temperature Control
- Uniform block heating up to 430°C ensures consistent digestion across all samples.
- High-performance stainless-steel heating block with precision temperature control.
- Multilingual menu navigation simplifies global laboratory use.
4. Safe & Efficient Design
- Automatic lift eliminates manual acid handling and risk of burns or splashes.
- Extraction hood with exhaust collector removes toxic fumes.
- Removable viewing door allows visual monitoring of digestion progress.
- Built-in software manages lift timing, cooling, and extraction automatically.
5. Robust Stainless-Steel Construction
- Non-corrosive, acid-resistant stainless-steel housing for long operational life.
- Sturdy frame, extraction hood, and insert rack designed for continuous use in harsh chemical environments.
Technical Specifications
| Model | Sample Positions | Vessel Volume (mL) | Temperature (°C) | Power (W) | Current (A) | Width (cm) | Depth (cm) | Height (cm) | Weight (kg) | Code |
|---|---|---|---|---|---|---|---|---|---|---|
| K 12 L | 12 | 250 | Up to 430 | 1500 | 8 | 42 | 51 | 76.5 | 30 | B00632827 |
| K 20 L | 20 | 250 | Up to 430 | 2200 | 10 | 42 | 51 | 76.5 | 34 | B00632826 |
| K 24 L | 24 | 100 | Up to 430 | 1500 | 8 | 48 | 51 | 76.5 | 30 | B00632825 |
| K 40 L | 40 | 100 | Up to 430 | 2200 | 10 | 48 | 51 | 76.5 | 34 | B00632824 |
Accessories and Consumables
| Accessory | Description | Code |
|---|---|---|
| SR 3i Digestion Vessel | Round-bottom 250 mL glass vessel | B00217959 |
| SR 4 Digestion Vessel | Round-bottom 100 mL glass vessel (micro-Kjeldahl) | B00217960 |
| AFS Anti-Foam Tablets | Prevent foaming during steam distillation (1000 pcs/tin) | B00217936 |
| SIST 100 Boiling Stones | Anti-bumping granules, 100 g tin | B00217914 |
| WP Weighing Paper | 95 × 110 mm, 250-sheet pad | B00441136 |
| KT Catalyst Tablets | CuSO₄ / TiO₂ / Se formulations (1000 pcs/tin) | B00217934–B00490920 |
Applications
- Food & Feed Analysis: Protein and nitrogen determination in meat, dairy, grains, and beverages.
- Agriculture & Fertilizer Testing: Nitrogen and phosphorus analysis in soil, compost, and fertilizers.
- Environmental Laboratories: Nitrogen analysis in wastewater, sludge, and ash samples.
- Industrial & Pharmaceutical Labs: Organic nitrogen determination in raw materials and formulations.
- Research & Education: Automated training systems for Kjeldahl digestion.
Unique Advantages
- Automatic lifting system eliminates manual handling of hot samples.
- Programmable cooling and extraction time improves process control.
- User-friendly software with method storage and USB connectivity.
- Uniform, high-temperature heating up to 430°C for complete digestion.
- Acid-resistant stainless-steel design ensures durability and safety.
- Compatible with micro and macro Kjeldahl vessels (100 mL / 250 mL).
The BEHR behrotest® Automatic Kjeldahl Block Digestion Systems (K 12 L / K 20 L / K 24 L / K 40 L) deliver automation, accuracy, and laboratory safety for nitrogen and protein analysis.
With automatic sample lifting, programmable heating profiles, and acid-resistant construction, these systems streamline Kjeldahl digestion while minimizing manual labor and operator risk.
Designed for high-throughput laboratories across food, environmental, agricultural, and industrial sectors, they represent the highest standard of BEHR precision and reliability.
- Sample Size: 250 mL x 8 Sample Positions (K 8 L) 12 Sample Positions (K 12 L) 250 mL x 20 Sample Positions (K 20 L) 100 mL x 24 Sample Positions (K 24 L) 100 mL x 40 Sample Positions (K 40 L)
