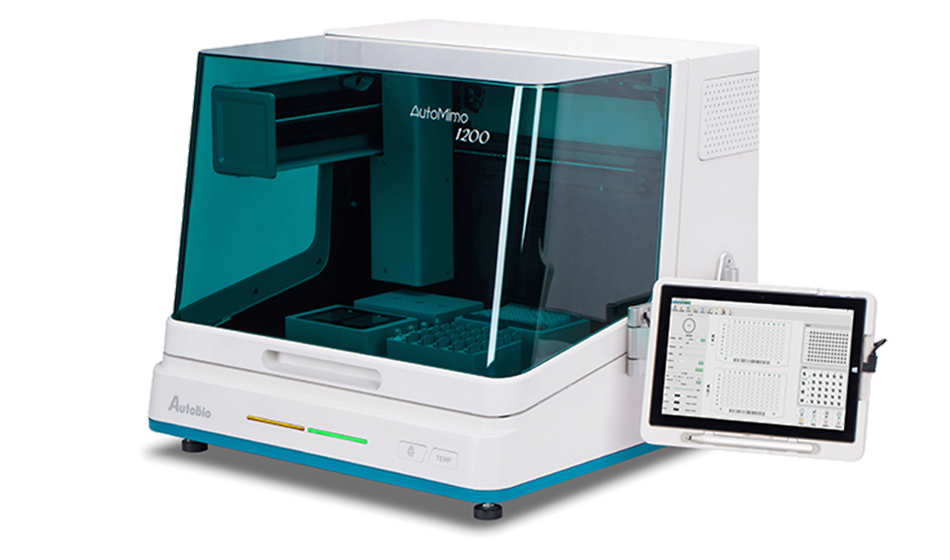

Autobio AutoMimo 1200 Automated Pipetting System for MALDI-TOF
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Liquid Handling | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Autobio Diagnostics | ||
| Product Grade | Microbiology grade | ||
The Autobio AutoMimo 1200 is an advanced automated pipetting platform engineered to enhance sample preparation efficiency and workflow precision for microbial identification systems such as MALDI-TOF MS (Matrix-Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometry).
Developed by Autobio Diagnostics, the AutoMimo 1200 delivers high pipetting accuracy, standardized workflows, and biosafety protection, optimizing throughput for microbial identification laboratories. It is fully compatible with Autobio MALDI-TOF systems and other commercial MALDI-TOF platforms.
Key Features
1. High-Precision Pipetting Technology
- Gas-path pipetting system ensures accurate and consistent pipetting from 1 µL to 200 µL.
- 1 µL pipetting CV ≤ 8%, 200 µL pipetting CV ≤ 2%, ensuring excellent reproducibility.
- Multi-mode pipetting supports continuous pipetting of up to 1,000 wells per hour for high-throughput workflows.
- Integrated incubation and heating control enables precise temperature management and rapid sample preparation.
2. Safety and Contamination Control
- Built-in high-efficiency air purification system prevents cross-contamination and exposure to biohazards.
- Ultraviolet (UV) sterilization module provides timed disinfection to reduce microbial and chemical risk.
- Sealed operation environment ensures biosafety for both operators and laboratory surroundings.
3. Intelligent Monitoring and Automation
- Real-time system monitoring detects and displays abnormal operating conditions.
- Automatic alarm notifications alert users to instrument errors or maintenance needs.
- Intuitive software interface designed for ease of use and efficient workflow setup.
- Supports direct reagent vial loading—no need for manual dispensing.
4. Ergonomic and Efficient Design
- User-friendly interface allows for customized protocols and streamlined operations.
- Ergonomic engineering minimizes operator fatigue and enhances user comfort.
- Compact footprint and robust stability for use in high-throughput microbiology laboratories.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 588 mm × 562 mm × 510 mm |
| Weight | 58 ± 2 kg |
| Sample Volume Range | 1 µL – 200 µL |
| Pipetting Repeatability | 1 µL CV ≤ 8%; 200 µL CV ≤ 2% |
| Throughput | Up to 1,000 wells per hour |
| Temperature Control | Precise heating system for incubation |
| Humidity (Operating) | ≤ 70% |
| Operating Temperature | 10°C – 30°C |
| Installation Requirements | Vibration-avoiding, stable, horizontal, four-point placement |
| Software Interface | Intuitive GUI with customizable pipetting modes |
Performance Highlights
- Standardized pipetting protocols enhance repeatability in MALDI-TOF sample preparation.
- Automated liquid handling reduces manual error and improves data consistency.
- Full compatibility with Autobio MALDI-TOF and other mainstream microbial identification systems.
- High-precision pipetting technology guarantees accuracy for minute sample volumes.
- Automated UV and air purification ensures biosafety compliance and contamination-free operation.
Applications
- Clinical Microbiology: Automated sample preparation for microbial identification and AST workflows.
- Pharmaceutical and Biotechnology Laboratories: Reagent handling and precision liquid transfer.
- Food and Environmental Microbiology: High-throughput sample processing for microbial detection.
- Research and Academic Institutions: Automated pipetting for analytical and diagnostic applications.
Unique Advantages
- High throughput and accuracy: Processes up to 1,000 wells/hour with exceptional precision.
- Comprehensive biosafety protection: Air filtration and UV sterilization for clean operation.
- Easy integration: Compatible with multiple MALDI-TOF MS platforms.
- Ergonomic and intelligent: Reduces manual workload and operator fatigue.
- Stable, compact design: Ensures minimal vibration for reliable and consistent pipetting.
The Autobio AutoMimo 1200 is a high-precision, fully automated pipetting workstation designed to streamline microbial sample preparation and improve workflow consistency in modern microbiology laboratories.
With its advanced gas-path pipetting mechanism, UV sterilization, and intelligent monitoring, it ensures accurate, contamination-free pipetting, supporting faster identification and reliable data generation for MALDI-TOF MS and related analytical systems.
A next-generation automation solution for clinical, industrial, and research laboratories seeking enhanced pipetting efficiency and biosafety.
