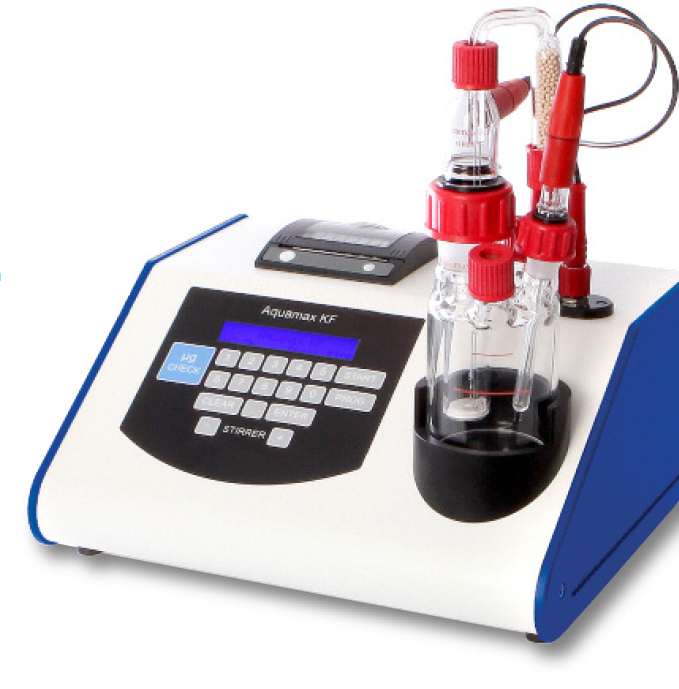

The Aquamax® Karl Fischer Plus Titrator is a robust, high-precision instrument designed for the determination of trace water content using coulometric Karl Fischer titration. This advanced moisture analysis system is ideal for laboratories requiring accurate ppm-level moisture determination in samples such as oils, fuels, solvents, chemicals, and other liquids.

The instrument combines coulometric titration with the Karl Fischer method, delivering extremely sensitive and reliable water content measurements ranging from 1 ppm up to 100% water. Its simple “press-go” operation, integrated printer, and programmable methods make it an extremely user-friendly instrument suitable for routine laboratory testing as well as on-site analysis.

The compact and portable design, integrated battery, and removable data storage enable users to perform moisture analysis both inside and outside the laboratory, making the Aquamax KF Plus particularly useful for petroleum laboratories, chemical plants, food analysis labs, and research facilities.

Key Features

Simple and User-Friendly Operation

• One-touch “Press Go” keypad operation
• 10 programmable analytical methods
• Multi-language interface and printout
• Built-in high-speed thermal printer

High Sensitivity Moisture Detection

• Detection range from 1 μg to 200 mg water
• Moisture range 1 ppm – 100%
• Maximum sensitivity 0.1 μg

Portable and Compact Design

• Fully portable system with internal battery
• Small footprint ideal for limited bench space
• Removable USB flash drive for data storage

Robust Measurement System

• Low Drift Cell measuring vessel
• Grease-free sealing system for easy assembly
• Improved baseline stability and reduced drift

Integrated Data Management

• USB and RS232 connectivity
• Removable flash drive for field testing
• Compatible with Results Manager software
• Stores statistics for up to 99 measurements

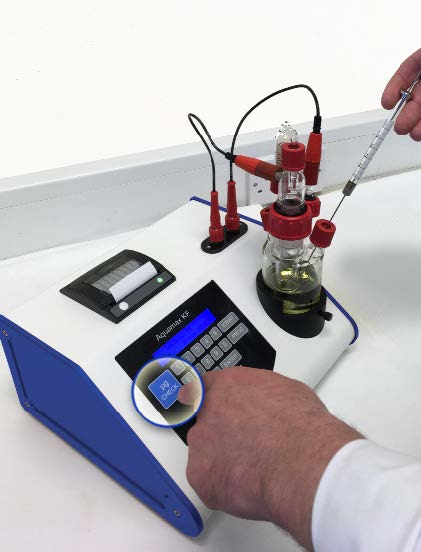

Water Check Verification System

The Aquamax KF Plus includes a μg verification function allowing quick performance verification of the instrument and reagents.

The operator can inject a small volume of distilled water (e.g., 1 μL or 10 μL) to confirm that:

• The instrument is functioning correctly
• The Karl Fischer reagent is performing within specification

After the verification check, the system automatically returns to the programmed analytical method, ensuring uninterrupted workflow.

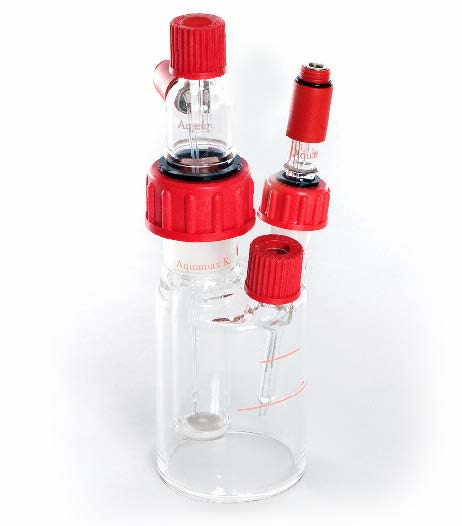

Tough Measuring Vessel Design

The instrument uses a Low Drift Cell (LDC) measuring vessel, specifically engineered for:

• Improved measurement stability
• Reduced baseline drift
• Easy assembly and cleaning
• No grease or PTFE sleeves required

The electrode locking system ensures tight sealing and reliable operation during titration.

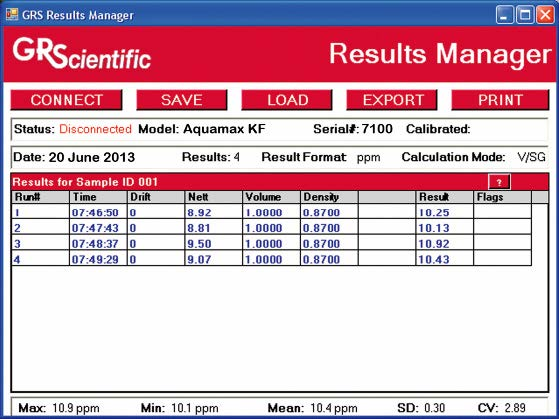

Results Manager Software

The Results Manager software provides comprehensive data management:

• Download results directly from the titrator
• View and analyze test results
• Print detailed analytical reports
• Export measurement data for record keeping

The system can also store results on a USB flash drive for later analysis on a computer.

Measurement Principle

The Aquamax KF Plus uses coulometric Karl Fischer titration, one of the most sensitive techniques for water determination.

In this method:

• Water reacts with iodine generated electrochemically in the titration cell
• The reaction continues until all water in the sample is consumed
• The amount of iodine generated corresponds directly to the water content

This technique allows precise detection of trace moisture levels down to microgram quantities.

Applications

The Aquamax Karl Fischer Plus is widely used in:

Petroleum and Fuel Analysis

• Water content in fuels
• Moisture in lubricating oils
• Petrochemical product testing

Chemical Industry

• Moisture in solvents
• Water determination in reagents
• Raw material quality control

Pharmaceutical Industry

• Moisture determination in APIs
• Quality control testing
• Pharmaceutical formulations

Food and Beverage Analysis

• Moisture content in edible oils
• Quality control of food ingredients

Research Laboratories

• Analytical chemistry studies
• Environmental analysis
• Materials science

Technical Specifications

Measurement Modes

Display and Data Handling

Instrument Specifications

Dimensions and Weight

Certification

Each Aquamax Karl Fischer titrator is supplied with a calibration certificate traceable to national standards, ensuring confidence in analytical accuracy.

The Aquamax Karl Fischer Plus Titrator is a powerful and user-friendly solution for accurate trace moisture analysis using the coulometric Karl Fischer method. Its high sensitivity, portable design, robust measurement system, and advanced data management capabilities make it an ideal instrument for laboratories performing water content determination in petroleum products, chemicals, pharmaceuticals, and food samples. With reliable performance and easy operation, the Aquamax KF Plus provides laboratories with a dependable tool for ppm-level moisture analysis.
