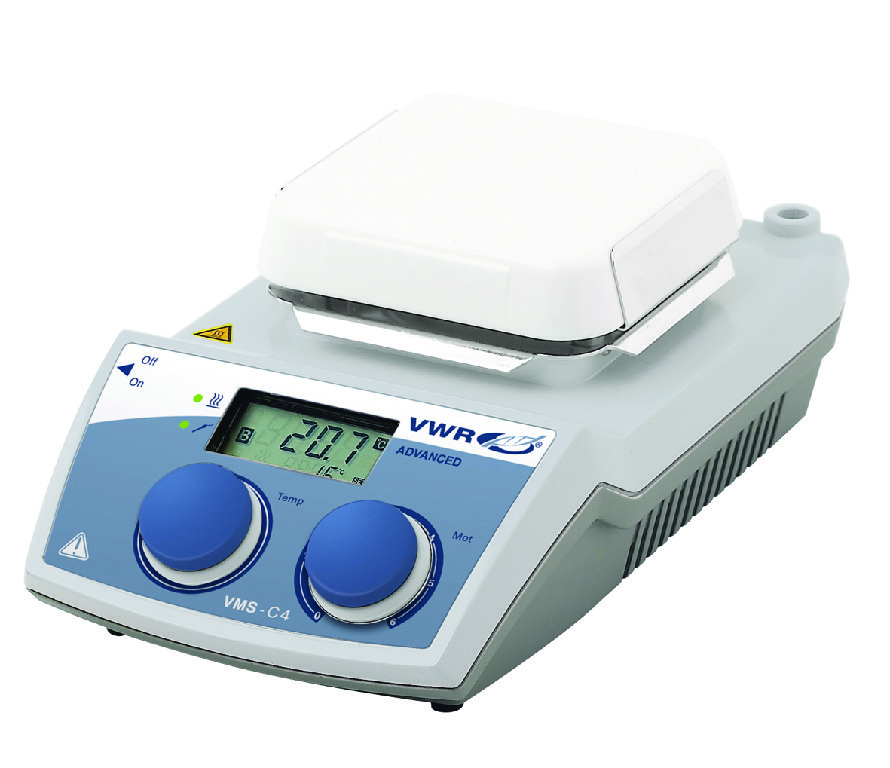

VWR® Professional Series, Digital Magnetic Stirrer, UK-plug
Catalog No :
CAS Number :
Brand :
In Stock
Plate Size: 180×180 mm
Plate material: Ceramic
Speed range: 60 - 1600 min⁻¹
Specifications:
| Application | Sample Processing | Warranty | 1 Year |
| Max Speed | 100 - 1500 min⁻¹ | ||
| Storage Temperature | Ambient | ||
| Product Type | Stirrer/Heater | ||
| Product Brand | VWR | ||
| Product Grade | Analytical grade | ||
The VWR® VMS Advanced Magnetic Hotplate Stirrers are compact and high-performance stirring and heating solutions designed for demanding laboratory applications. Featuring a glass-ceramic plate for superior chemical resistance and thermal conductivity, these units offer precision temperature control, intuitive displays, and enhanced safety features.
Equipped with a digital LCD display, microcontroller regulation, and optional PT1000 sensor input, these stirrers ensure accurate and repeatable results. The inclusion of an integrated 'hot' warning indicator and over-temperature safety circuit (shuts off heating above 550 °C) offers additional peace of mind during operation.
Key Features
- High-Performance Heating: Adjustable from 50 to 500 °C with 0.1 °C resolution using PT1000 sensor
- Powerful Stirring Capability: Speed range of 100–1500 rpm; up to 15 L H₂O stirring capacity (model-dependent)
- Dual Microcontroller Control: Ensures precise and reliable heating and stirring
- Digital Potentiometer: For exact target temperature setting
- Simultaneous Display: Real-time LCD showing both set and actual temperature
- Sensor-Linked Accuracy: ±0.5 °C control accuracy in medium with PT1000 probe
- Robust & Safe Design: Hot-top indicator, error code display, and automatic shutoff at 550 °C
- Chemical-Resistant Plate: Durable glass-ceramic surface for long-term lab use
- Three Operation Modes: Standard, safe, and adjustment protection modes
- Protection Class: IP21 (DIN EN 60529 compliant)
Applications
- Sample digestion and evaporation
- Reagent mixing and solution preparation
- Cell culture media preparation
- General lab heating and stirring procedures
Technical Specifications
| Model | Catalog No. | Plate Size (mm) | Stirring Capacity (H₂O) | Temp. Range (°C) | Heat Output (W) | Speed Range (rpm) | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|---|---|---|---|
| VMS-C4 Advanced | 442-0662 | 100 × 100 | 5 L | 50 – 500 | 250 | 100 – 1500 | 150 × 260 × 105 mm | 3 kg |
| VMS-C7 Advanced | 442-0665 | 180 × 180 | 10 L | 50 – 500 | 1000 | 100 – 1500 | 215 × 330 × 105 mm | 5 kg |
| VMS-C10 Advanced | 442-0668 | 260 × 260 | 15 L | 50 – 500 | 1500 | 100 – 1500 | 300 × 415 × 105 mm | 6 kg |
Common to all models:
- Power Input/Output: 15/1.5 W
- Plate Material: Glass-ceramic
- Protection Class: IP21
- Supplied with: PT1000 temperature probe
- Lead Time: Avg. 25 days (Model 442-0662)
The VWR® VMS Advanced Magnetic Hotplate Stirrers are reliable, compact, and safety-focused instruments built to handle routine and demanding lab mixing and heating tasks. With precision temperature control, chemical-resistant surfaces, and user-friendly operation, these units are indispensable for any modern laboratory focused on safety, accuracy, and performance.
- Capacity: Plate dimensions: 100×100 mm; Max. stirring capacity H₂O: 5L Plate dimensions: 180×180 mm; Max. stirring capacity H₂O: 10L Plate dimensions: 260×260 mm; Max. stirring capacity H₂O: 15L
