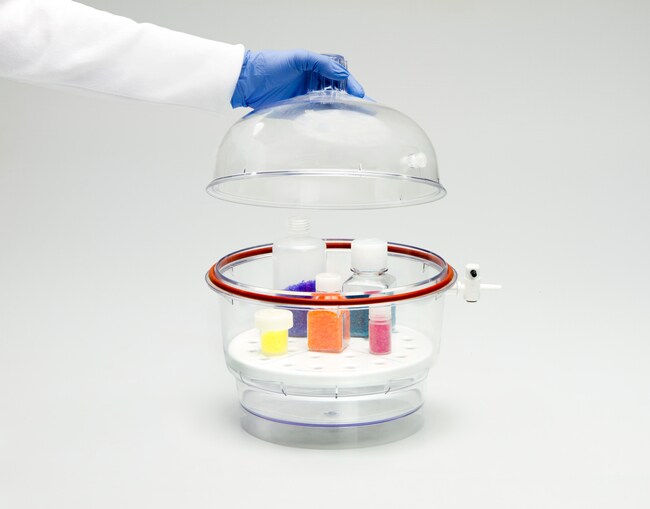

Thermo Scientific™ Nalgene™ Transparent Polycarbonate Classic Design Desiccator (Without Base Plate)
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Drying |
| Material | Polycarbonate |
| Storage Temperature | Ambient |
| Product Type | Laboratory Glassware |
| Product Brand | Thermo Fisher Scientific™ |
| Product Grade | Laboratory grade |
Lightweight, Nearly Unbreakable Vacuum Desiccator with Airtight Silicone O-Ring Seal (250 mm)
Thermo Scientific™ Nalgene™ Transparent Polycarbonate Classic Design Desiccator is a durable, cost-effective alternative to traditional glass desiccators, designed for safe moisture-free storage and vacuum drying applications. Constructed from high-strength transparent polycarbonate, this classic desiccator provides excellent visibility, superior impact resistance, and reliable vacuum performance without the need for vacuum grease.
A silicone O-ring ensures an airtight seal, reducing contamination risks associated with grease while maintaining a stable vacuum for extended periods. Suitable for both vacuum and non-vacuum conditions, this desiccator is ideal for laboratories requiring a lightweight, nearly unbreakable solution for drying hygroscopic samples and protecting sensitive materials from humidity.
Key Features and Benefits
Airtight Seal Without Vacuum Grease
Silicone O-ring provides a secure seal, eliminating the need for vacuum grease that can introduce contaminants into laboratory workflows.
Transparent Polycarbonate Construction
Lightweight and nearly unbreakable, offering excellent safety and durability compared with glass desiccators.
Suitable for Full Vacuum and Non-Vacuum Use
Designed to withstand full vacuum conditions safely when used according to instructions.
- Holds vacuum of 28 in.Hg (71.1 cm) for up to 24 hours
Wide Base for Superior Stability
Broad footprint enhances stability on laboratory benches and in drying workstations.
Convenient Vacuum Ports on Cover and Base
Ports on both the cover and base provide flexible vacuum connection options.
Replaceable Stopcock Assembly
Removable stopcock can be replaced or removed entirely, with a cap included if the port is not used.
Cost-Effective Alternative to Glass
Similar dimensions to glass desiccators but more economical and resistant to shattering or implosion.
Important Notes
- Base plate is sold separately
- Accepts standard 230 mm desiccator plates (e.g., Nalgene™ 5312-0230, not included)
- Do not autoclave
- Do not expose to organic solvents or solvent vapors
Replacement parts available:
- Stopcock assembly: Cat. No. 715311-0010
- Desiccator cover: Cat. No. 715311-0250
Applications
This desiccator is ideal for:
- Vacuum drying of hygroscopic samples
- Moisture-free storage of sensitive reagents
- Protection of powders, crucibles, and specimens
- Analytical chemistry and gravimetric workflows
- Research and pharmaceutical laboratories
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Top-loading vacuum desiccator |
| Material | Transparent polycarbonate |
| Seal Type | Silicone O-ring |
| Vacuum Capacity | Holds 28 in.Hg for 24 hours |
| Plate Compatibility | Standard 230 mm plate (sold separately) |
| Autoclavable | No |
| Solvent Resistance | Do not expose to organic solvents |
Dimensions and Weight
| Specification | Value |
|---|---|
| Inner Diameter | 25 cm (10 in.) |
| Outer Diameter | 28 cm (11 in.) |
| Height | 33 cm (13 in.) |
| Max Clearance Above Plate | 7.7 in. |
| Weight | 907 g (2 lb.) |
Ordering Information
| Catalog Number | Description | Packaging |
|---|---|---|
| 5311-0250PK | Nalgene™ Transparent Polycarbonate Classic Design Desiccator, 250 mm (without base plate) | 1 / pack |
| 5311-0250 | Nalgene™ Transparent Polycarbonate Classic Design Desiccator, 250 mm (without base plate) | Case of 4 |
Thermo Scientific™ Nalgene™ Transparent Polycarbonate Classic Design Desiccator provides a safe, lightweight, and contamination-reducing solution for vacuum drying and moisture-free sample storage. With its airtight silicone O-ring seal, durable polycarbonate construction, and reliable vacuum retention, it is an excellent alternative to fragile glass desiccators in modern research, analytical, and pharmaceutical laboratories.
- Pack Size: 1 Each 4/case
