Specifications:
| Application | Chemiluminescent Immunoassay | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Autobio Diagnostics | ||
| Product Grade | Medical grade | ||

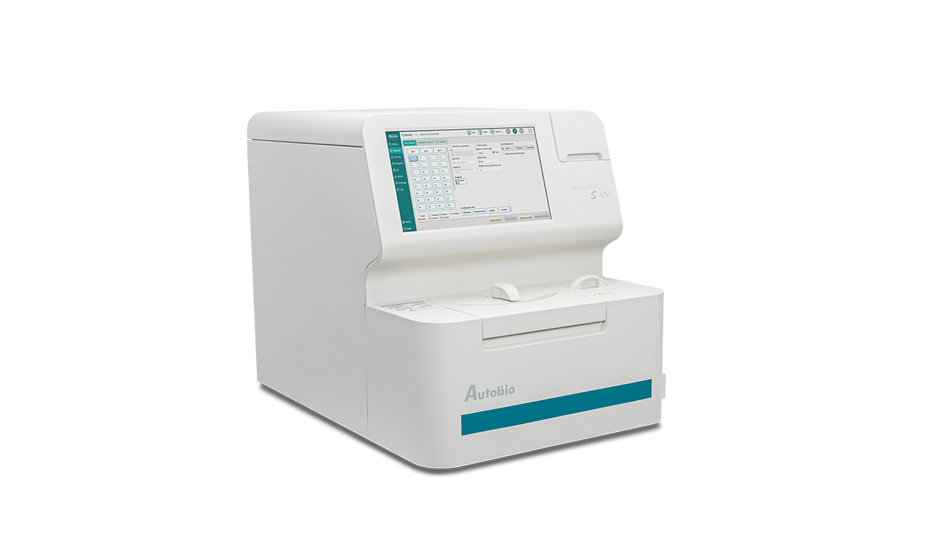

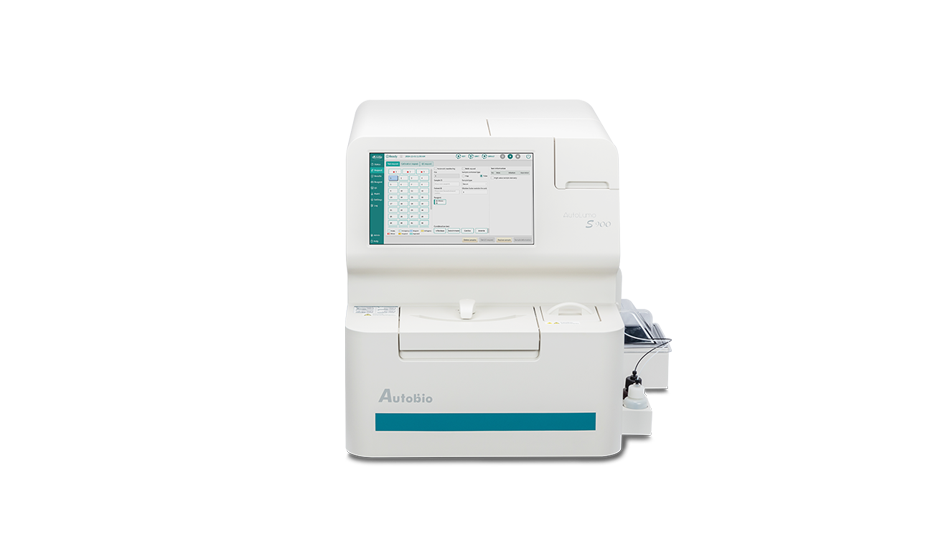

The Autobio AutoLumo S900 is a next-generation, fully automated chemiluminescent immunoassay (CLIA) system designed for small and medium-sized laboratories seeking high throughput, reliability, and operational efficiency in limited bench space.
Built with a compact and modular design, the AutoLumo S900 provides hands-free automation for routine immunoassay testing, enabling laboratories to process up to 180 tests per hour (T/h) with continuous access and minimal maintenance.
Engineered with advanced magnetic separation technology and intuitive software control, the S900 supports over 150+ test items, covering applications across tumor markers, infectious diseases, autoimmune disorders, thyroid function, and fertility testing.
Key Features
1. Compact Yet Powerful
- Fully automated CLIA analyzer with an ultra-efficient footprint.
- Throughput of 180 tests/hour, achieving up to 392 T/h/m² space efficiency.
- Processes up to 16 items per sample simultaneously.

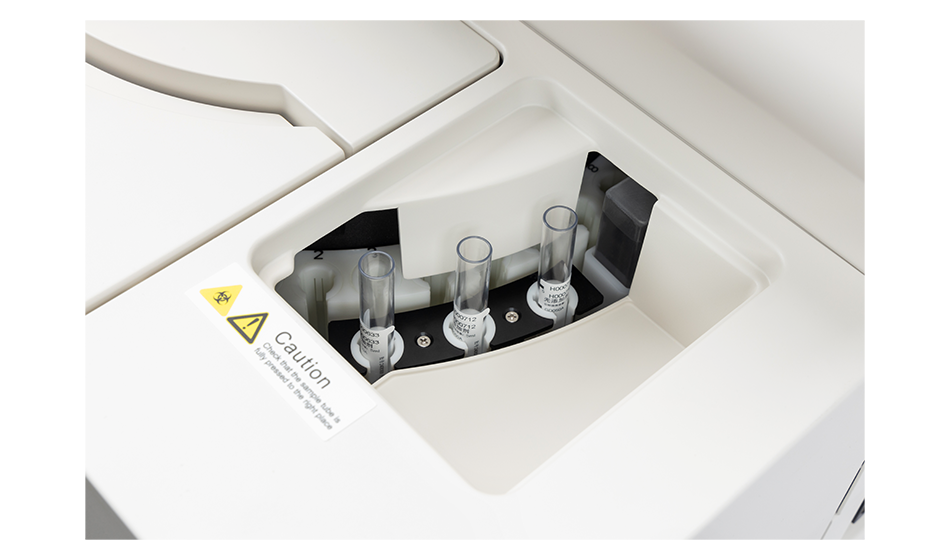

- Three independent STAT channels for urgent or priority testing.
2. Extended Walk-Away Time
- High-capacity reaction vessel storage (1,000 pcs, easy refill).
- Low-frequency replenishment of consumables for uninterrupted operation.
- One set of substrate supports up to 2,000 tests, maximizing productivity.
3. Simple, User-Friendly Operation
- Touchscreen interface with intuitive visual management.
- Random access loading of samples and reagents.

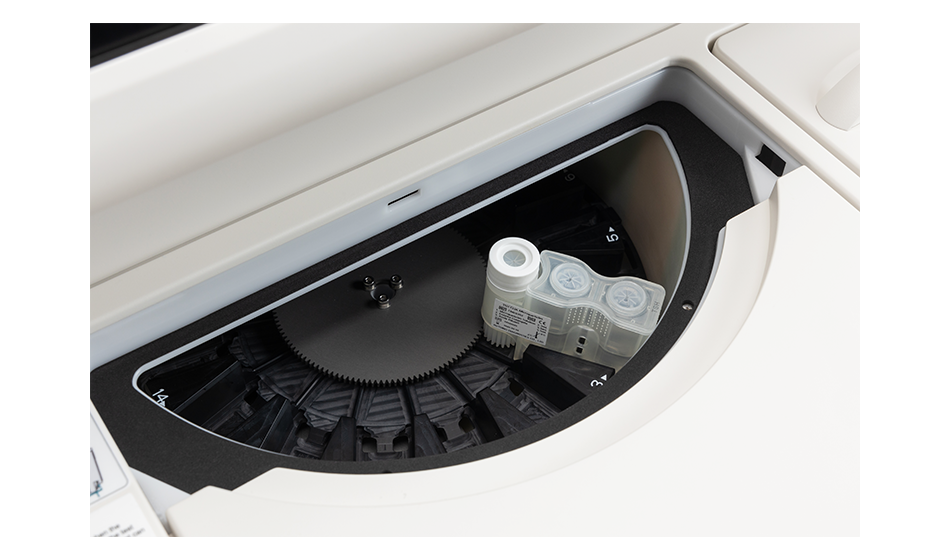

- Independent reagent refrigeration system with energy-saving sleep mode.
- Real-time monitoring of consumables and test progress.
4. Precision and Reliability
- Specially engineered wash station for cross-contamination control.
- Five-stage magnetic separation and cleaning ensures high assay accuracy.
- Eccentric non-contact vortex mixing for uniform reaction performance.
- Built-in safety functions: anti-collision detection, liquid level detection, air aspiration, and probe blockage alerts.
5. Future-Proof Test Menu
- Comprehensive test portfolio with 150+ assay items.
- Supports special tests such as TB-IGRA, Autoimmune Panels, TORCH, and Tumor Marker assays.
- Continuous expansion of available test parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Throughput | 180 Tests/hour |
| Reaction Vessel (RV) Capacity | 1,000 pcs |
| Sample Loading Capacity | 51 Samples |
| Sample Dilution Factor | Up to 2,601-fold |
| Onboard Reagent Capacity | 16 Reagent Packs |
| Carryover | ≤ 0.1 ppm |
| Incubation Temperature | 37°C |
| Dimensions (W × D × H) | 576 × 796 × 654 mm |
| Weight | Approx. 85 kg |
| Interface | Touchscreen |
| Operating Mode | Random access, continuous loading |
| Compatible Tests | 150+ CLIA assays (AutoLumo reagent portfolio) |
Applications
- Hospitals & Clinics: Routine and specialized immunoassay diagnostics.
- Medical & Research Laboratories: Comprehensive CLIA-based biomarker analysis.
- Independent Diagnostic Centers: Automated testing with minimal user intervention.
- Blood Banks & CDC Units: Screening for infectious and autoimmune diseases.
- Public Health Laboratories: Large-volume testing for population health and surveillance.
Performance Advantages
- Compact modular system ideal for mid-sized labs with high workload demands.
- High throughput with low maintenance requirements.

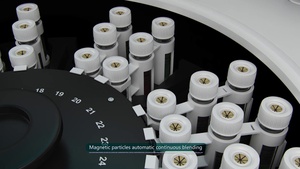

- Magnetic microparticle technology for superior sensitivity and specificity.
- Automated operation and intelligent consumable management.
- CE-certified system compliant with clinical diagnostic standards.
- Compatible with AutoLumo CLIA reagents, calibrators, and controls.
The Autobio AutoLumo S900 CLIA System is a compact yet powerful solution for automated chemiluminescent immunoassay testing.
Combining speed, accuracy, and reliability, it enables laboratories to expand testing capacity, optimize workflow, and deliver high-quality diagnostic results with minimal manual effort.
Perfectly suited for small and medium laboratories, the S900 represents Autobio’s commitment to automation excellence, intelligent design, and diagnostic precision.
