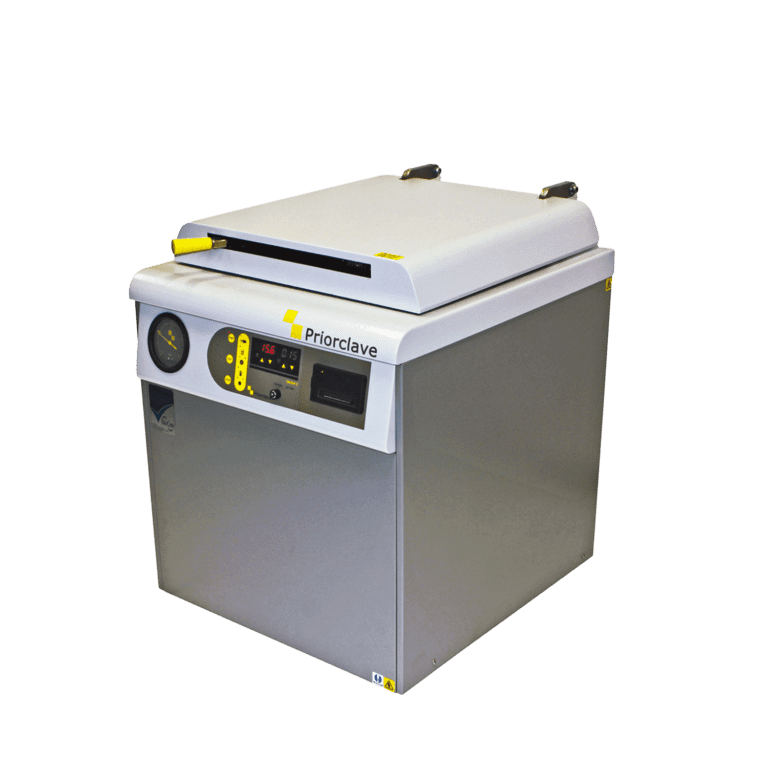

V60-BASE Top Loading Laboratory Autoclave, Electrically Heated, 230V, 60L
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | sterilization | Warranty | 1 Year |
| Storage Temperature | Room Temperature | ||
| Product Type | Autoclave | ||
| Product Brand | Priorclave™ | ||
| Product Grade | Research Grade | ||
The Priorclave™ V60-BASE Top Loading Laboratory Autoclave is a compact, high-performance sterilization system designed for research laboratories, life sciences, and industrial microbiology applications. With a 60-liter working capacity, this electrically heated vertical autoclave provides reliable steam sterilization for laboratory media, glassware, instruments, biological waste, and tall vessels such as flasks, fermentors, and bioreactors.
Engineered and manufactured in Britain, the V60-BASE features a durable cylindrical pressure vessel, advanced programmable controls, and energy-efficient operation. Its compact footprint and vertical loading design allow efficient sterilization of large and tall loads while minimizing laboratory space requirements and operating costs.
Key Features
- 60-liter working volume for laboratory sterilization applications
- Electrically heated system (230V, 3.2 kW) with efficient steam generation
- Programmable Tactrol® 2 Control System with one-touch operation
- Vertical top-loading design ideal for tall flasks, fermentors, and bioreactors
- 316L stainless steel pressure chamber for durability and corrosion resistance
- Quickseal™ interlocking safety lid ensures safe operation
- Biomaster™ antimicrobial protection for enhanced hygiene
- Compact footprint with high sterilization capacity
- Includes stainless steel load support plate and baskets
Principle of Operation
The autoclave sterilizes materials using saturated steam under pressure, typically at temperatures up to 136°C (277°F) and pressures up to 2.2 bar (32 psi). Steam penetrates materials, denatures proteins, and destroys microorganisms, including bacteria, viruses, fungi, and spores.
The programmable Tactrol® control system ensures precise temperature, pressure, and cycle control for reproducible sterilization performance.
Applications
The Priorclave™ V60-BASE is suitable for:
- Microbiology laboratories
- Cell culture and molecular biology laboratories
- Research and academic laboratories
- Pharmaceutical and biotechnology laboratories
- Clinical and diagnostic laboratories
- Environmental and food microbiology laboratories
Typical sterilization applications include:
- Culture media sterilization
- Glassware sterilization
- Laboratory instruments
- Biological waste decontamination
- Fermentor and bioreactor sterilization
Standard Features
- Fully programmable Tactrol® 2 microprocessor control system
- Freesteaming, load cooling, and delayed start functions
- Stainless steel chamber and internal components
- Quickseal™ interlocking safety lid
- Biomaster™ antimicrobial surface protection
- Stainless steel load support plate and mesh baskets
- Energy-efficient and water-efficient operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Priorclave™ V60-BASE |
| Type | Top Loading Laboratory Autoclave |
| Working Volume | 60 Liters |
| Heating | Electrically Heated |
| Power Supply | 230V, Single Phase |
| Heat Input | 3.2 kW |
| Maximum Temperature | 136°C (277°F) |
| Maximum Pressure | 2.2 Bar (32 psi) |
| Chamber Material | 316L Stainless Steel |
| Chamber Dimensions | 350 mm diameter × 620 mm depth |
| External Dimensions | 472 × 620 × 900 mm (W × D × H) |
| Loading Height | 850 mm |
| Weight | 90 kg |
| Control System | Programmable Tactrol® 2 |
Advantages
- Compact design with high sterilization capacity
- Ideal for tall laboratory vessels and waste loads
- Reliable and durable stainless steel construction
- Fully programmable sterilization cycles
- Safe and easy operation with interlocking safety lid
- Low operating and maintenance costs
- Energy-efficient and environmentally friendly
Available Options
Optional features may include:
- Internal steam generator
- Vacuum drying capability
- Load sensing and process timing
- Printer and data logging systems
- Automatic water filling
- Air filtration and exhaust systems
- Installation and validation documentation (IQ/OQ)
The Priorclave™ V60-BASE Top Loading Laboratory Autoclave provides reliable, efficient, and high-capacity steam sterilization in a compact and durable design. Its programmable control system, robust stainless steel construction, and vertical loading configuration make it an excellent choice for laboratories requiring dependable sterilization of media, instruments, and biological waste.
