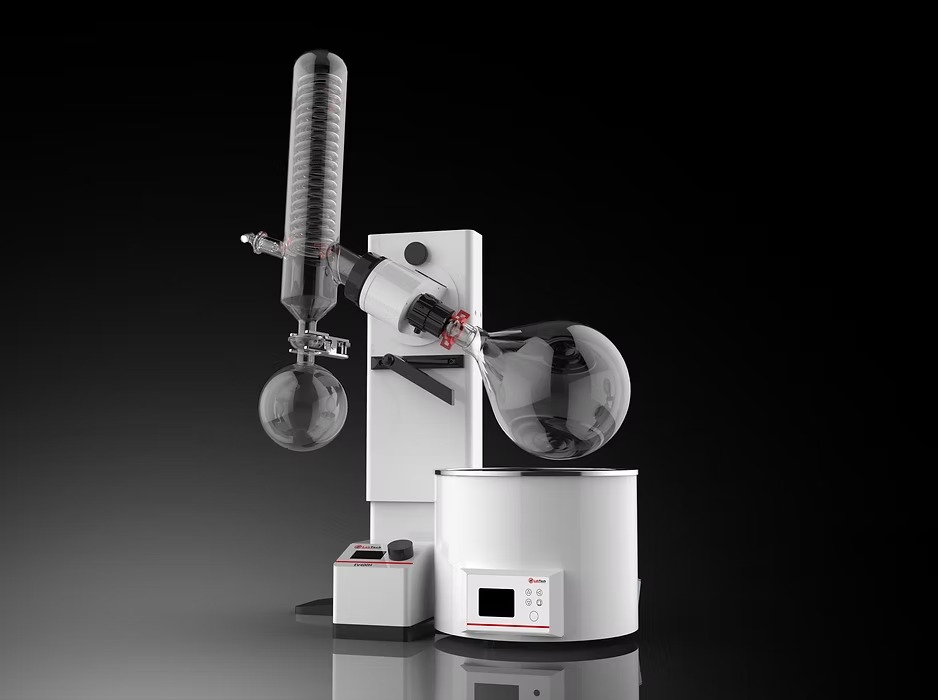

LabTech EV400H Rotary Evaporator, Manual Vertical Lift
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Distillation | Warranty | 1 Year |
| Max Speed | Up to 300 rpm | ||
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | LabTech | ||
| Product Grade | Analytical grade | ||
The LabTech EV400H Rotary Evaporator (Manual Lift Series) combines ergonomic design, precision control, and laboratory safety in a compact, high-performance system.
Built for efficient and gentle solvent evaporation, these rotary evaporators provide precise temperature regulation, smooth flask rotation, and easy operation, making them ideal for daily use in chemical, pharmaceutical, food, and academic laboratories.
With a digital color display, manual vertical or diagonal lift, and a stand-alone heating bath (up to 230 °C), the EV400H series ensures safe and consistent operation for both research and industrial environments.
When paired with LabTech’s VP18 Plus vacuum pump and H50-500 water chiller, the system achieves maximum efficiency and reproducibility in evaporation and distillation workflows.
Key Features
- Manual Lift Design: Smooth, reliable vertical or diagonal manual lift for precise positioning of the evaporation flask.
- Digital Color Display: Real-time monitoring of bath temperature and rotation speed.
- Wide Temperature Range: Heating bath up to 230 °C for a broad variety of solvents.
- Variable Speed Control: Adjustable rotation up to 300 rpm for optimized evaporation.
- Safety First: Independent heating bath and automatic over-temperature protection.
- Modular Integration: Compatible with LabTech chillers and oil-free vacuum pumps for complete evaporation systems.
- Coated Glassware Option: Plastic-coated condensers and flasks available for enhanced safety and durability.
- Compact & Durable: Space-saving footprint and long-life construction for continuous laboratory operation.
Technical Highlights
- Temperature Range: Ambient to 230 °C
- Speed Range: 20 – 300 rpm
- Condenser Options: Vertical or diagonal; coated or standard glassware
- Lift Type: Manual lift
- Display: Color digital display (temperature / speed)
- Bath Volume: 5 L
- Glass Coating: Optional transparent polymer coating (resists ≤ 90 °C)
- Power Supply: 230 V / 50–60 Hz
- CE Certified
Applications
- Solvent distillation and recycling
- Concentration of active agents and solutions
- Chemical synthesis and reaction optimization
- Crystallization and recrystallization processes
- Extraction of natural compounds
- Drying of powders and suspensions
- Vacuum distillation of heat-sensitive substances
- Molecular gastronomy and R&D sample preparation
Ordering Information
| P/N | Model Description | Application |
|---|---|---|
| LEV400NH-V | EV400H-V Rotary Evaporator – Manual vertical lift – Vertical condenser – 230 °C – 300 rpm | General solvent distillation, evaporation, and extraction processes |
| LEV400NH-V-C | EV400H-V Rotary Evaporator – Manual vertical lift – Vertical condenser – Coated glassware – 230 °C – 300 rpm | Enhanced operator safety and durability; recommended for corrosive solvents |
| LEV400NH-L | EV400H-L Rotary Evaporator – Manual vertical lift – Diagonal condenser – 230 °C – 300 rpm | Laboratories with limited height clearance or diagonal reflux requirements |
| LEV400NH-L-C | EV400H-L Rotary Evaporator – Manual vertical lift – Diagonal condenser – Coated glassware – 230 °C – 300 rpm | Safer handling of volatile or hazardous samples in confined workspaces |
Accessories

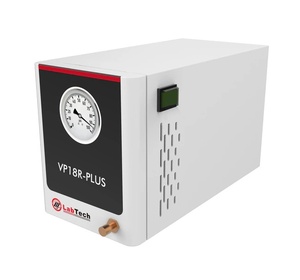

- Vacuum Pump: LabTech VP18 Plus (18 L/min – 20 mbar, oil-free)
- Water Chiller: LabTech H50-500 (500 W – 5 °C to 35 °C)
- Plastic-Coated Glassware: Optional upgrade for enhanced protection and user safety.
The LabTech EV400H Manual Lift Rotary Evaporators deliver precision, safety, and versatility for modern laboratories.
Featuring robust glassware, digital control, and manual lift operation, these evaporators are optimized for a wide range of evaporation and concentration tasks.
Whether equipped with standard or plastic-coated glassware, the EV400H series provides reliable performance, excellent solvent recovery, and exceptional operator safety—all backed by LabTech’s reputation for quality, innovation, and value.
- Model: EV400H-V with Vertical condenser EV400H-V; Vertical condenser with plastic Coated glassware EV400H-L; Diagonal condenser with Standard glassware EV400H-L; Diagonal condenser with Plastic Coated glassware
