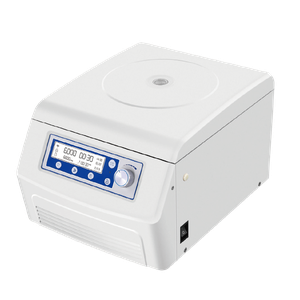

Haier Biomedical Accessories for LX-60T100-J Centrifuge
Catalog No :
CAS Number :
Brand :
Availability :
In Stock
Specifications:
| Application | Sample Processing |
| Storage Temperature | Ambient |
| Product Type | Accessory |
| Product Brand | Haier Biomedical |
| Product Grade | Laboratory grade |
Compatible Rotors and Accessories
The LX-60T100-J supports a variety of fixed-angle and swing-out rotors with steel sleeves for different tube types and capacities, including:
Fixed-Angle Rotors
| Rotor BE No. | Capacity | Max RCF (× g) | Max Speed (rpm) | Tube Type |
|---|---|---|---|---|
| BE11D5000 | 6 × 50 mL (15 mL) | 3,578 | 5,000 | Round/Conical bottom |
| BE11DT000 | 12 × 15 mL | 4,749 | 6,000 | Round/Conical bottom |
| BE11D7000 | 18 × 15 mL | 3,578 | 5,000 | Round/Conical bottom |
| BE12D6000 | 6 × 100 mL | 3,349 | 4,800 | Round/Conical bottom |
| BE11DU000 | 12 × 10 mL | 2,683 | 5,000 | Round bottom |
| BE12JN001 | Adapter for small blood collection tubes | — | — | 13 × 75 mm tubes |
Swing-Out Rotors
| Rotor BE No. | Description | Capacity | Max RCF (× g) | Max Speed (rpm) |
|---|---|---|---|---|
| BE12H1000 | Swing-out rotor for large blood collection tubes (Φ16 mm) | 5 × 10 mL | 4,200 | 2,770 |
| BE12H2000 | Swing-out rotor for 15 mL conical tubes | 2 × 15 mL | 4,200 | 2,770 |
| BE12H3000 | Swing-out rotor for 50 mL conical tubes | 1 × 50 mL | 4,200 | 2,770 |

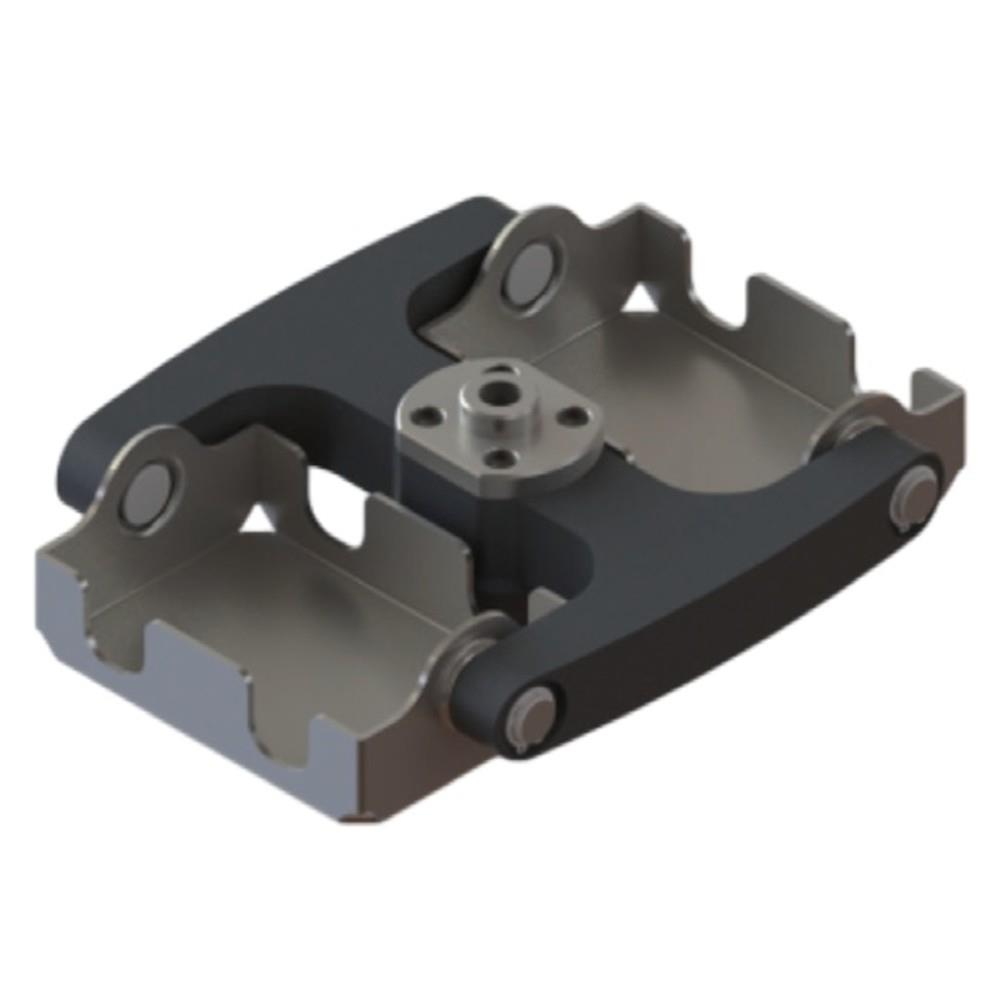

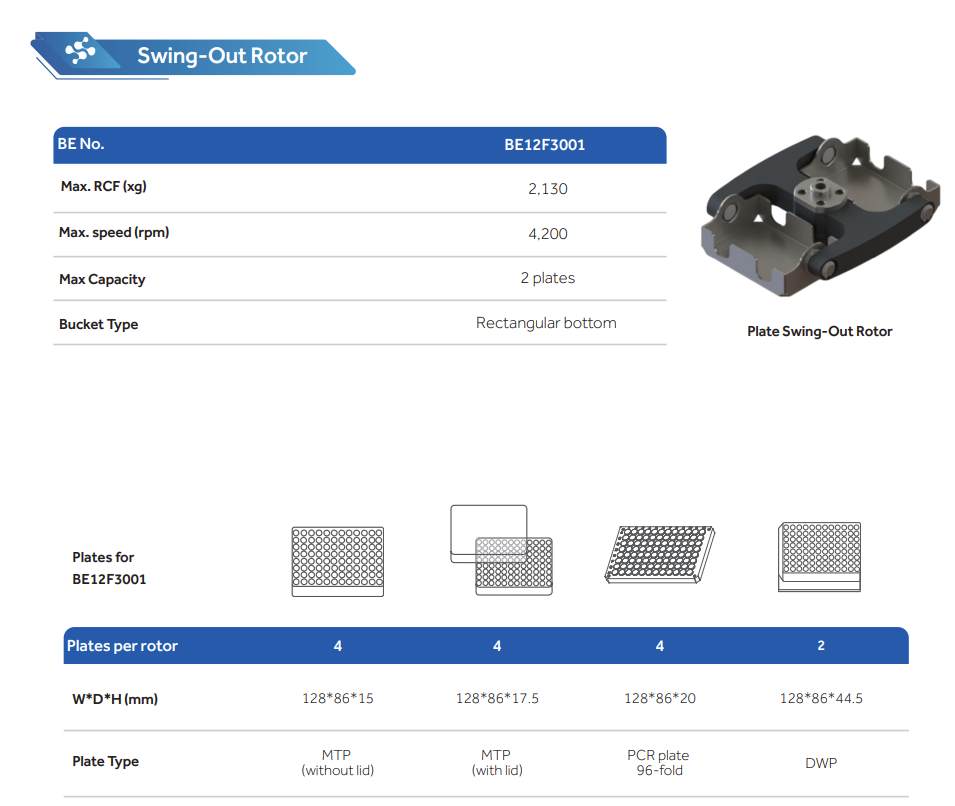

| BE12F3001 | Plate swing-out rotor for PCR and MTP plates | 2 plates | 2,130 | 4,200 |
- Rotor Description: Swing out rotor ELISA plate 2 position (with ELISA Plate Bucket 2×96 well plate） 4x1x50mL bucket 4x2x15mL bucket Fixed-angle rotor, 6 × 50 (15) mL with steel sleeves Fixed-angle rotor 12 × 15 mL with steel sleeves Fixed-Angle Rotor, 18 × 15 mL, with steel sleeves Fixed-Angle Rotor, 6 x 100 mL with steel sleeves Fixed-Angle Rotor, 12 x 10 mL, with steel sleeves Fixed-Angle Rotor, 36 x 10 mL, with steel sleeves Adapter for small blood collection tubes, 13 × 75 mm tubes, 5mL (50pcs) Swing out rotor 4 position(w/o bucket) 4x5x10/7 mL bucket 4×1×15 mL + 4×2×10 mL + 4×2×5 mL Swing-Out Bucket Set
