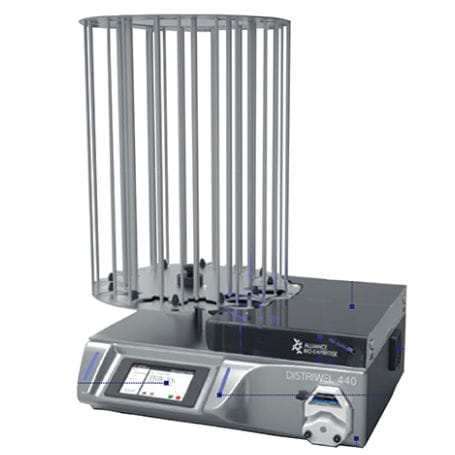

ABE DISTRIWEL 440 Automated Petri dish filler
Catalog No :
CAS Number :
Brand :
In Stock
Capacity: 440 Petri dishes
Contamination prevention: Built-in Peltier effect
Distribution speed: From 30 to 300 RPM
Distribution accuracy: +/- 1%
Distribution volume: 1- 99ml
Stack plates function
Double pump in option
Programs: 40
Touchscreen: Tactile, LCD 7"
Traceability: Inkjet printer on the dishes side
Specifications:
| Application | Microbiology | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Alliance Bio Expertise | ||
| Product Grade | Microbiology grade | ||
The DISTRIWEL 440 is an advanced, automatic Petri dish filling and stacking machine designed for high-throughput laboratories. With the ability to prepare up to 440 plates (15ml) in just 30 minutes, it significantly enhances productivity while ensuring consistent, high-quality results.
Key Features & Benefits:
-
Precision & Efficiency:
- Masterflex™ Peristaltic Pump: Ensures even and accurate pouring of medium onto the Petri dishes.
- High Speed: Capable of filling up to 880 Petri dishes per hour.
- Flexible Distribution: Offers both automatic (with carousel) and manual modes to suit different workflow needs.
- Adjustable Speed: Distributes from 30 to 300 RPM for varying requirements.
-
Consistent Quality:
- Peltier Cooler: Prevents condensation and accelerates solidification time, ensuring constant high-quality media.
- Integrated Water Cart: Ensures uniform media quality throughout the entire filling process.
-
Contamination Prevention:
- UV Lamp: Built-in UV light sterilizes the plates during the pouring process to prevent contamination.
- Protective Plexiglas Cover: Provides added protection against environmental contaminants.
-
Enhanced Traceability:
- Linx 10 Continuous Inkjet Printer: Prints two lines of text directly onto the side of each Petri dish for traceability and labelling.
- Up to 40 Programs: Save and access various distribution settings quickly via the intuitive 7" LCD touchscreen.
-
User-Friendly Design:
- Ergonomic Access: The peristaltic pump and loading system are positioned for easy and ergonomic access.
- Easy Cleaning & Maintenance: Features a detachable carousel, removable transfer plate, and compact base for simple handling and cleaning.
- Footswitch Option: For manual distribution control when needed.
Technical Specifications:
| Parameter | Details |
|---|---|
| Petri Dishes per Hour | Up to 880 |
| Capacity | 440 Petri dishes |
| Distribution Modes | Automatic (with carousel) & Manual |
| Distribution Speed | 30 to 300 RPM |
| Distribution Accuracy | +/- 1% |
| Distribution Volume | 1–99 ml |
| Programs | 40 |
| Touchscreen | 7" Tactile LCD |
| Stack Plates Function | Yes |
| Double Pump Option | Yes |
| Traceability | Inkjet printer for labelling |
| Dimensions | 689 x 808 x 940 mm |
| Weight | 48 kg |
| Electricity Supply | 115 or 230 V / 50-60 Hz / 3A max - 150 W |
| Country of Origin | France |
| Warranty | 1 year |
Ideal Users:
- Microbiology Laboratories: Efficiently prepare and distribute agar plates for various microbiological applications.
- High-Throughput Labs: Labs requiring a high volume of Petri dishes filled with precision and minimal contamination.
- Research Institutions: Automated solution for preparing agar plates for research studies, ensuring reproducibility and accuracy.
Final Verdict:
The DISTRIWEL 440 is an essential tool for microbiology labs looking to automate the Petri dish filling process, enhance productivity, and ensure top-notch media quality. With its robust features, user-friendly design, and precision technology, it is ideal for labs that need fast and reliable results.
