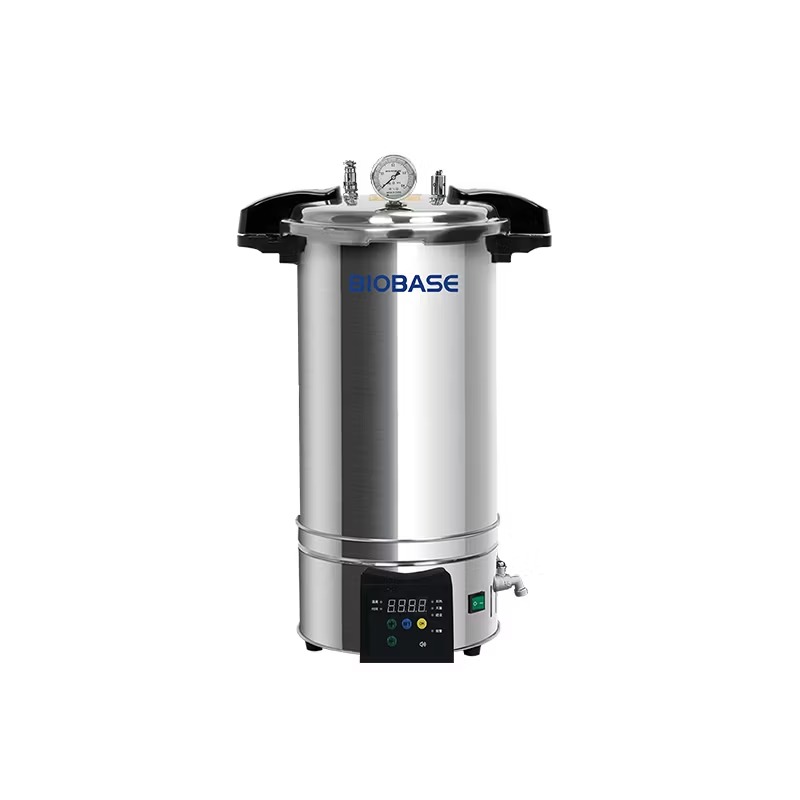

BIOBASE Portable Autoclave with timing function

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

Time Setting: 0~99 min
Temperature Setting: 105~127℃
Power Supply: Standard: 220V 50Hz
Working Pressure: 0.142MPa

Capacity

This combination does not exist.

Specifications:

Application	sterilization	Warranty	1 Year
Storage Temperature	Ambient
Product Type	Autoclave
Product Brand	BIOBASE
Product Grade	Laboratory grade

Overview
Resource

The BIOBASE Portable Autoclave provides a safe, compact, and versatile sterilization solution for laboratories, clinics, and field applications. With multiple configurations (dual-use, anti-dry, and timing control), it offers reliable sterilization of glassware, instruments, and media at pressures up to 0.165 MPa and temperatures up to 129℃.

Its self-expanding sealing ring ensures excellent sealing performance, while safety features such as over-temperature/over-pressure protection, dual safety valves, and automatic low water cutoff provide dependable operation.

Key Features

Excellent Sealing: Self-expanding sealing ring effectively prevents steam leakage.
Enhanced Safety: Over-temperature and over-pressure automatic protection with dual safety valves.
Durable Heating System: Immersion electric heating tube made of stainless steel ensures high thermal efficiency and long service life.
Water Level Protection: Equipped with water level gauge and automatic shutdown when water is too low (anti-dry protection).
Flexible Heating Options: Available in dual-use models (electricity or LPG heating).
Timing Control Models: Adjustable sterilization temperature (105–127℃), programmable sterilization time (0–99 min), automatic stop heating and alarm after sterilization.
Altitude Adaptability: Suitable for installations below 2600 m.

Applications

Laboratories: Sterilization of glassware, instruments, culture media.
Clinics & Healthcare: Disinfection of surgical tools, dressings, and liquids.
Pharmaceuticals: Small-scale sterilization of reagents and consumables.
Field & Mobile Units: Portable sterilization in remote or temporary facilities.

Technical Specifications

Model	BKM-P18III	BKM-P24III
Type Options	Timing Control	Timing Control
Capacity	18 L	24 L
Max. Working Pressure	0.165 MPa	0.165 MPa
Max. Working Temp.	129℃	129℃
Rated Pressure	0.14 MPa	0.14 MPa
Rated Temp.	126℃	126℃
Temperature Setting	Fixed 126℃ (dual-use) / 105–127℃ (timing control)	Fixed 126℃ (dual-use) / 105–127℃ (timing control)
Heating Method	Coal or electricity / electricity	Coal or electricity / electricity
Sterilizing Time	Manual / 0–99 min (timing control)	Manual / 0–99 min (timing control)
Chamber Size	Φ300×320 mm / Φ280×350 mm	Φ300×450 mm / Φ280×460 mm
Disinfection Tank	Φ280×240 mm / Φ265×265 mm	Φ280×350 mm / Φ265×375 mm
Automatic Control	Yes (timing control)	Yes (timing control)
Low Water Protection	Anti-dry burning pipe / water level switch	Anti-dry burning pipe / water level switch
Standard Accessories	Sealing rubber ring ×1, O-type silicone sealing ring ×3, Large gasket ×2, Disinfection tank ×1	Sealing rubber ring ×1, O-type silicone sealing ring ×3, Large gasket ×2, Disinfection tank ×1
Power Consumption	2 kW (1.5 kW optional)	2 kW (1.5 kW optional)
Power Supply	AC220 V, 50/60 Hz (Standard); AC110 V optional	AC220 V, 50/60 Hz (Standard); AC110 V optional
External Size (W×D×H)	385×385×450 / 385×385×560 mm	450×340×600 / 450×340×710 mm
Net Weight	15.5–16.5 kg	13.5–14.5 kg
Package Size (W×D×H)	400×400×430 / 400×400×530 mm	400×400×670 / 400×400×770 mm
Gross Weight	16.5–17.5 kg	14.5–15.5 kg

The BIOBASE Portable Autoclave with Timing Function combines safety, durability, and portability in a compact sterilization unit. With its customizable heating options, programmable controls, and multiple safety protections, it provides laboratories, clinics, and healthcare facilities with a dependable and efficient sterilization solution for critical applications.
