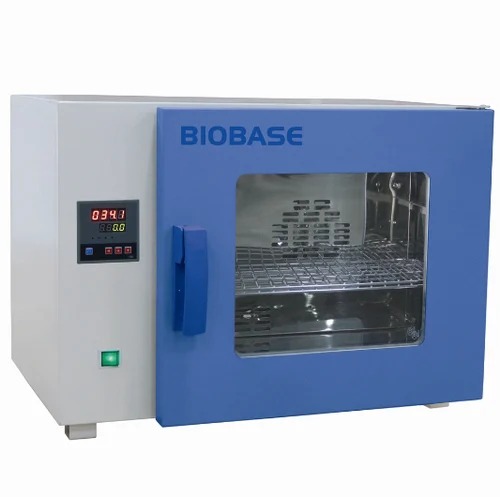

BIOBASE Forced Air Drying Oven, RT+10℃~300℃
Catalog No :
CAS Number :
Brand :
In Stock
Temp. Range: 50~200℃
Temp. Precision: 0.1℃
Temp. Fluctuation: ±1℃
Timing Range: 1~9999min
Shelves No.: 2 pcs
Specifications:
| Application | Microbiology | Warranty | 1 Year |
| Storage Temperature | Room Temperature | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | BIOBASE | ||
| Product Grade | Analytical grade | ||
The BIOBASE Forced Air Drying Oven is a high-precision laboratory oven engineered for drying, heating, and sterilization in scientific, industrial, and medical laboratories.
Equipped with PID temperature control, a uniform air circulation system, and stainless-steel construction, the oven ensures reliable, consistent, and accurate performance for diverse thermal applications.
The design includes a double-layer glass observation window, over-temperature protection, and a corrosion-resistant inner chamber, providing durable and safe operation in demanding laboratory environments.
Key Features & Benefits
- Wide Temperature Range (50°C–200°C): Suitable for sterilization, drying, and thermal testing.
- PID Temperature Control with LED Display: Offers precise, real-time temperature monitoring.
- Forced Air Circulation System: Ensures even and stable heat distribution throughout the chamber.
- Double-Layer Glass Observation Window: Enables safe visual monitoring of samples.
- Over-Temperature Protection: Automatically prevents overheating and sample damage.
- Stainless Steel Inner Chamber: Corrosion-resistant and easy to clean.
- Cold-Rolled Steel Outer Body with Anti-Bacterial Coating: Improves hygiene and durability.
- Adjustable Shelves: Flexible configuration for different sample sizes.
- Airtight Buckle Lock Door: Maintains a tight seal for stable internal temperature and safety.
Technical Specifications
| Model | Capacity (L) | Temperature Range (°C) | Precision (°C) | Fluctuation (°C) | Timing Range (min) | Shelves (pcs) | Power (W) | Power Supply |
|---|---|---|---|---|---|---|---|---|
| BOV-T25F | 25 | 50–200 | 0.1 | ±1 | 1–9999 | 2 | 650 | 220V±10%, 50/60Hz (110V Optional) |
| BOV-T50F | 54 | 50–200 | 0.1 | ±1 | 1–9999 | 2 | 1000 | 220V±10%, 50/60Hz (110V Optional) |
| BOV-T105F | 108 | 50–200 | 0.1 | ±1 | 1–9999 | 2 | 1600 | 220V±10%, 50/60Hz (110V Optional) |
| BOV-T200F | 212 | 50–200 | 0.1 | ±1 | 1–9999 | 2 | 2500 | 220V±10%, 50/60Hz (110V Optional) |
Dimensions & Weight
| Model | Internal Size (W×D×H mm) | External Size (W×D×H mm) | Package Size (W×D×H mm) | Gross Weight (kg) |
|---|---|---|---|---|
| BOV-T25F | 298×290×274 | 580×554×455 | 710×660×620 | 51 |
| BOV-T50F | 419×332×348 | 708×595×532 | 840×690×700 | 66 |
| BOV-T105F | 550×348×550 | 830×620×735 | 960×720×900 | 115 |
| BOV-T200F | 602×498×602 | 880×775×785 | 1010×880×940 | 145 |
Applications
- Microbiological and Clinical Laboratories: Drying and sterilizing glassware and laboratory instruments.
- Industrial and Material Testing: Drying components, powders, and materials for research and analysis.
- Biochemical and Pharmaceutical Research: Heat treatment and sample preparation.
- Food and Beverage Laboratories: Drying and microbial testing of raw materials.
- Quality Control and Manufacturing: Ideal for drying and curing materials in plastic, textile, and polymer industries.
Usage Guidelines
- Place the oven on a stable, ventilated surface.
- Adjust shelves for optimal airflow and sample positioning.
- Set temperature and timing using the PID control panel.
- Avoid overloading the chamber to maintain uniform temperature.
- Clean the inner chamber regularly to prevent contamination.
Safety & Compliance
- For research and industrial use only. Not intended for clinical or diagnostic applications.
- Ensure adequate ventilation and avoid proximity to flammable materials.
- The oven is equipped with an automatic over-temperature shutdown for safety.
- Operate with appropriate personal protective equipment when handling high-temperature samples.
Why Choose the BIOBASE Forced Air Drying Oven
- Uniform and Stable Heating: Forced air circulation guarantees consistent performance.
- Advanced Safety Features: Integrated over-temperature protection ensures user and sample safety.
- Durable Construction: Stainless steel interior and anti-bacterial coated exterior.
- Multiple Model Options: Available in 25L, 54L, 108L, and 212L capacities.
- Reliable Brand Quality: Manufactured by BIOBASE, a trusted global laboratory equipment supplier.
The BIOBASE Forced Air Drying Oven Series provides reliable and uniform temperature control for drying, sterilizing, and heat treatment applications.
With PID-based precision, stainless steel construction, and forced air circulation, it ensures stable and accurate performance in laboratory and industrial environments.
Suitable for research laboratories, clinical facilities, industrial testing, and material preparation, these ovens combine precision engineering, safety, and durability, making them an excellent choice for high-performance thermal processing.
- Capacity: 25L 54L 108L 212L
