Applied Biosystems™ MiniAmp™ Plus Thermal Cycler, 0.2mL, 3-Zone VeriFlex Block
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | PCR | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | thermal Cycler | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Molecular Biology | ||

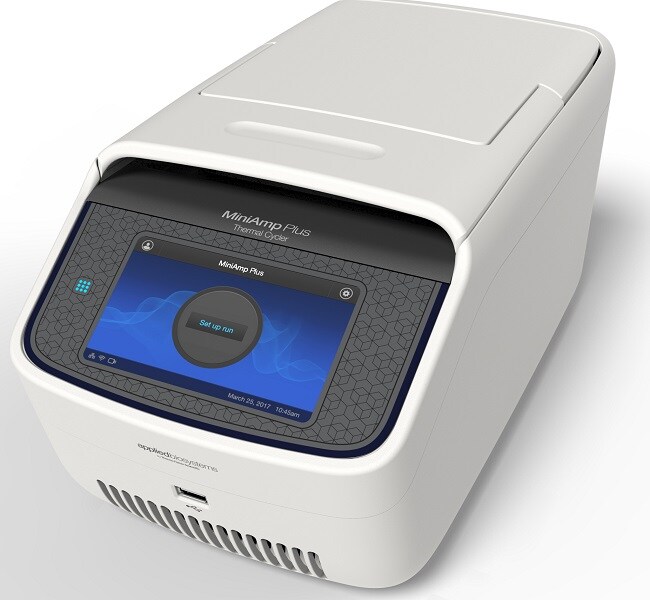

The Applied Biosystems MiniAmp™ Plus Thermal Cycler is a compact, reliable, and affordable thermal cycler designed for basic PCR applications. Its small footprint, intuitive touch-screen interface, and advanced temperature control technology make it ideal for any laboratory setting, especially where space and accuracy are priorities. The 3-zone VeriFlex Blocks technology enhances flexibility in PCR optimization by offering precise and independent temperature control across three zones.
Key Features and Benefits
- VeriFlex Blocks Technology:
- Three independent temperature zones for precise control and optimized PCR results.
- Allows users to test multiple annealing temperatures in a single run.
- User-Friendly Interface:
- Equipped with a 5-inch color TFT LCD touchscreen for intuitive programming and navigation.
- Simplifies training for new users.
- Compact Design:
- Dimensions: 19 cm (W) × 39 cm (D) × 20 cm (H).
- Small footprint allows placement in tight lab spaces.
- Front-to-back airflow enables side-by-side arrangement of multiple units.
- Connectivity and Remote Access:
- Wi-Fi-enabled with Thermo Fisher Connect, allowing remote design, upload, and management of methods from any device.
- High-Quality PCR Plastics Compatibility:
- Designed to work seamlessly with Applied Biosystems PCR plastics, ensuring consistency and precision for over 25 years.
Specifications
| Parameter | Details |
|---|---|
| Thermal Accuracy | ±0.25°C (35°C to 99.9°C) |
| Thermal Uniformity | <0.5°C (20 seconds after reaching 95°C) |
| Capacity | 1 × 96-well plate, 0.2 mL |
| Thermal Range | 0°C to 100°C |
| Max. Ramp Rate | 3.5°C/sec. (Block), 2.7°C/sec. (Sample) |
| Reaction Speed | Fast and Standard |
| No. of Programs | 1000 |
| User Interface | USB, Wi-Fi, Ethernet |
| Display Type | 5-inch Color TFT LCD Touchscreen |
| Power Requirements | 100–240 V, 500 W |
| Dimensions | 15.4 × 7.5 × 7.9 in. (39 × 19 × 20 cm) |
| Weight | 13 lb (5.9 kg) |
| Block Configuration | 96-well, 3-Zone VeriFlex Block |
| Warranty | Limited Warranty |
Applications
- PCR Optimization: Utilize VeriFlex Blocks for precise optimization of annealing temperatures.
- High-Throughput PCR: Compatible with Applied Biosystems GeneAmp plastics for reliable, high-throughput applications.
- Remote Method Management: Design, upload, and manage protocols remotely with Wi-Fi and Thermo Fisher Connect.
Included Contents
- MiniAmp Plus Thermal Cycler
- EU Power Cord
Why Choose the MiniAmp Plus?
- Compact and cost-effective solution for basic PCR applications.
- Advanced temperature control with VeriFlex Blocks enhances experiment flexibility.
- Wi-Fi-enabled remote access streamlines method design and management.
- Trusted Applied Biosystems technology ensures accuracy and reliability.
When evaluating the Applied Biosystems™ MiniAmp™ Plus Thermal Cycler, it's beneficial to compare it with similar models from other leading manufacturers to determine the best fit for your laboratory needs. Below is a comparison with three comparable thermal cyclers:
| Feature/Model | Applied Biosystems MiniAmp Plus | Bio-Rad T100 Thermal Cycler | Eppendorf Mastercycler Nexus Gradient | Agilent SureCycler 8800 |
|---|---|---|---|---|
| Block Configuration | 96-well, 3-zone VeriFlex Block | 96-well | 96-well, gradient | 96-well |
| Temperature Control | 3 independent zones | Gradient capability | Gradient capability | Gradient capability |
| Max Block Ramp Rate | 3.5°C/sec | 4.0°C/sec | 3.0°C/sec | 6.0°C/sec |
| Temperature Uniformity | <0.5°C | ±0.5°C | ±0.3°C | ±0.4°C |
| Temperature Accuracy | ±0.25°C | ±0.5°C | ±0.2°C | ±0.2°C |
| User Interface | 5-inch color touchscreen | 5.7-inch graphical display | 5.7-inch touchscreen | 5.7-inch color touchscreen |
| Connectivity | USB, Wi-Fi, Ethernet | USB | USB | USB |
| Dimensions (W × D × H) | 19 × 39 × 20 cm | 33 × 20 × 21 cm | 27 × 41 × 24 cm | 26 × 50 × 27 cm |
| Weight | 5.9 kg | 8.3 kg | 12 kg | 12 kg |
| Additional Features | Thermo Fisher Connect enabled | Protocol AutoWriter software | Flexlid concept, gradient function | High ramp rate, gradient |
| Warranty | Limited Warranty | 2 years | 2 years | 2 years |
Key Considerations:
- Temperature Control: The MiniAmp Plus offers three independent temperature zones with VeriFlex Blocks, providing flexibility for PCR optimization. Competitors like the Eppendorf Mastercycler Nexus Gradient and Agilent SureCycler 8800 also offer gradient capabilities, but may not provide the same level of zonal control.
- Ramp Rate: Agilent's SureCycler 8800 boasts the highest maximum block ramp rate at 6.0°C/sec, which can reduce overall run times. The MiniAmp Plus has a moderate ramp rate of 3.5°C/sec, suitable for standard applications.
- User Interface and Connectivity: All models feature user-friendly interfaces with touchscreens or graphical displays. The MiniAmp Plus stands out with its Wi-Fi connectivity and integration with Thermo Fisher Connect, enabling remote method design and management.
- Size and Weight: The MiniAmp Plus is compact and lightweight, making it ideal for laboratories with limited bench space.
- Additional Features: Each model offers unique features. For instance, the Eppendorf Mastercycler Nexus Gradient includes a Flexlid concept accommodating various consumables, while the Agilent SureCycler 8800 emphasizes a high ramp rate for faster cycling.
When selecting a thermal cycler, consider factors such as throughput requirements, the need for gradient or multi-zone temperature control, available laboratory space, and connectivity preferences.
