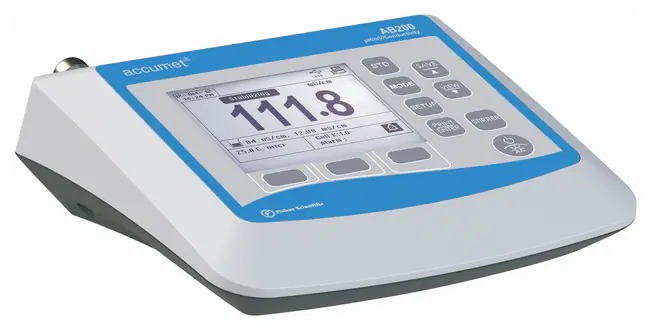

Fisherbrand™ accumet™ AB200 Benchtop pH/Conductivity Meter
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
Provides intuitive, simple operation and high accuracy measurements in a compact, affordable meter. Fisherbrand accumet AB200 pH/conductivity meter combines the benefits of a pH meter and conductivity meter in one easy to use, reliable measurement system. The large backlit display offers great visibility in laboratory environments.
- Graphic backlit display with date and time, stability indicator and alarms
- Dual channel meter for pH and conductivity measurements
- One to six point pH calibration with 0.001 pH resolution
- Automatic buffer recognition with four pH buffer sets or custom buffer option
- pH slope and offset display
- Conductivity, TDS (total dissolved solids), salinity and resistivity modes
- Automatic or manual temperature compensation, displayed in °C or °F
- Password protection of calibration and setup modes
- 500 data set storage
- RS232 and USB interfaces
- Multilanguage interface with English, German, Chinese, French, Italian and Spanish
- Optional stirring probe (Cat. No. 13-620-BSP) with five speed settings
NIST-Traceable Calibration Model (-CERT)
- Help meet ISO, FDA, USDA and EPA quality assurance guidelines
- Includes meter accuracy at five test points across pH range
- Includes meter accuracy at five test points across corresponding mV range
- Testing performed by accredited laboratory, includes NIST-Traceable certificate
SpecificationspH Range: -2.000 to 20.000 pHpH Resolution: 0.1, 0.01, 0.001 pHpH Accuracy: ±0.002 pHmV Range: ±2000.0mVmV Resolution: 0.1mVmV Accuracy: ±0.2mV or ±0.05 %, whichever is greatermV Offset Adjustment: Up to ±150mVConductivity Range: 0.00μS to 500.0mSConductivity Resolution: 0.01, 0.1μS; 0.001, 0.01, 0.1mSConductivity Accuracy: ±1 % full scaleTDS Range: 0.00ppm to 500 ppt (TDS factor 1.00)TDS Resolution: 0.01, 0.1 ppm; 0.001, 0.01, 0.1 pptTDS Accuracy: ±1 % full scaleSalinity Range: 0 to 80.0 pptSalinity Resolution: 0.01, 0.1 ppm; 0.001, 0.01, 0.1 pptSalinity Accuracy: ±1 % full scaleResistivity Range: 2.000 Ohm to 20.0 MOhmResistivity Resolution: 0.01, 0.1 Ohm; 0.001, 0.1 kOhm; 0.01 MOhmResistivity Accuracy: ±1 % full scaleTemperature Range: 0° to 100°C (32° to 212.0°F)Temperature Resolution: 0.1°C (0.1°F)Temperature Accuracy: ±0.3°C (±0.5°F)Calibration Points: 1 to 6 points with automatic buffer recognition (ABR)ATC Temperature Calibration: Offset in 0.1°C increments; Offset range: ±5°C (±9°F)Self-Test: YesInputs: BNC, mini-phone ATC, 8 Pin DIN, groundPower Requirements: 100 to 240VAC, 50/60HzApplicationsAcademic, research, QA/QC, drinking water, wastewater, food, beverage, industrial
Certifications
CE, TUV 3-1, FCC Class A
Specifications
| Outputs | RS232 (phono plug), mini-B USB, stirrer |
| Accuracy (mV) | ±0.2 mV |
| Accuracy (Resistivity) | ± 1% full scale |
| Accuracy (TDS) | ± 1% full scale |
| Calibration Points (pH) | Up to 6 preset or 5 custom |
| Certifications/Compliance | Without NIST-traceable pH Certificate |
| Data Points | 500 |
| Display Type | LCD |
| Range (Conductivity) | 0 μS to 500 mS |
| Range (pH) | -2 to 20 |
| Range (Salinity) | 0 to 80ppt |
| Resolution (pH) | 0.1/0.01/0.001 |
| Includes | Meter, Electrode Arm, RS-232 and USB Cables, 100/240V Power Supply |
| Model | AB200 pH/Conductivity Meter Only |
| Resolution (mV) | 0.1mV |
| Resolution (Salinity) | 0.01/0.1ppm, 0.001/0.01/0.1ppt |
| Temperature Accuracy | ±0.3°C |
| Warranty | 3 Years |
| Frequency | 50/60Hz |
| Accuracy (Conductivity) | ±1% FS |
| Accuracy (pH) | ±0.002 |
| Accuracy (Salinity) | ± 1% full scale |
| Calibration Points (Conductivity) | Automatic (4 points), maximum 1/range, manual (5 points), maximum 1/range |
| Cell Constant | 0.010 to 10.000 |
| Data Management Details | Manual, timed (selectable every 3 to 3600 sec.), printer or CSV format |
| Channels | 2 |
| Measurement Modes | pH, mV, Conductivity, TDS, Salinity, Resistivity, Temperature |
| Range (mV) | ±2000 mV |
| Range (Resistivity) | 2W to 20MW |
| Range (TDS) | 0ppm to 500ppt (at TDS factor 1) |
| Temperature Range (Metric) | 0°C to 100°C |
| Inputs | BNC, ATC |
| Resolution (Conductivity) | 0.01/0.1μS, 0.001/0.01/0.1mS |
| Resolution (Resistivity) | 0.01/0.1W, 0.001/0.1kW, 0.01MW |
| Resolution (TDS) | 0/0.1ppm, 001/01/0.1ppt |
| Temperature Resolution | 0.1°C |
| Voltage | 100/240V |
