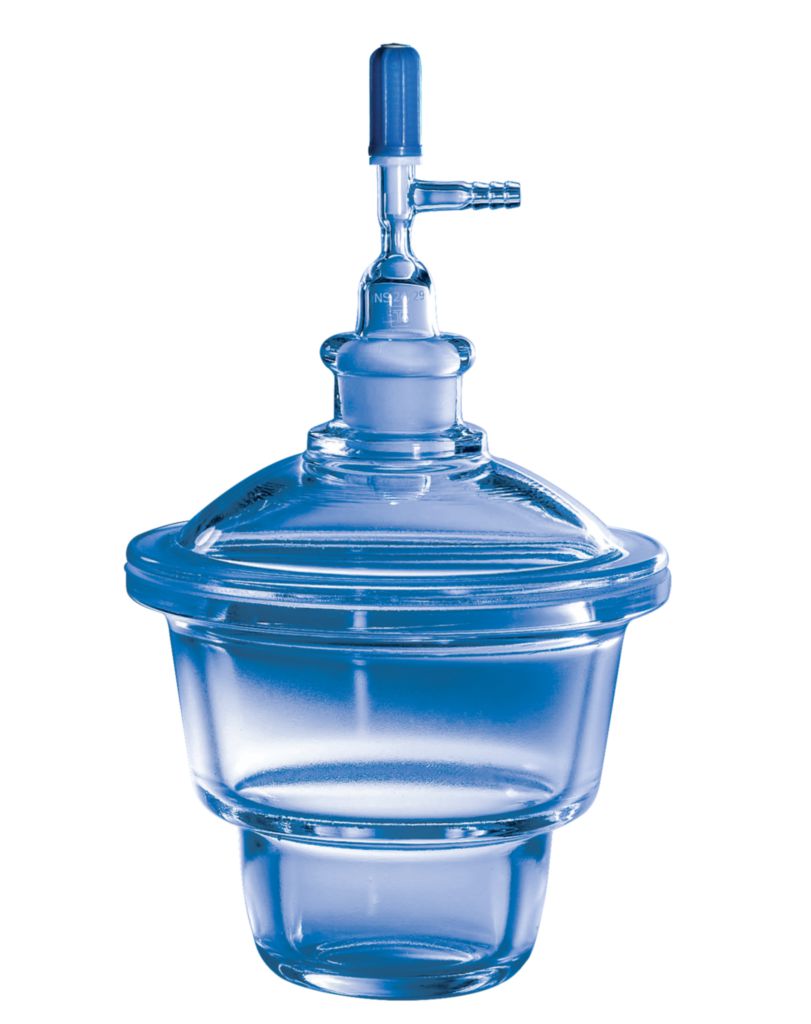

VWR Vacuum desiccator, Borosilicate 3.3 glass, With stopcock, 300 DN, 380×435 mm
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Drying |
| Material | Borosilicate glass |
| Storage Temperature | Ambient |
| Product Type | Laboratory Glassware |
| Product Brand | VWR |
| Product Grade | Analytical grade |
DIN 12491 Certified High-Strength Desiccators for Vacuum Drying and Storage
VWR® Vacuum Desiccators are made from borosilicate 3.3 glass and designed for maximum vacuum retention, mechanical strength, and chemical durability. They feature precision-ground flanges and interchangeable tubulated lids with NS 24/29 standard ground joints and PTFE stopcocks, enabling safe, airtight vacuum operation in demanding laboratory environments.
These desiccators are ideal for use in moisture-sensitive sample storage, drying under reduced pressure, and vacuum filtration setups. Their robust wall thickness supports maximum technically feasible vacuum levels, and the flat flange design ensures tight sealing between the base and lid.
Key Features
- Manufactured from borosilicate 3.3 glass for high thermal and chemical resistance
- Thick-walled construction allows use at maximum vacuum levels
- Flat-ground flange on both lid and base for secure vacuum seal
- Standard NS 24/29 tubulated joint with PTFE stopcock included
- Interchangeable lids for versatile setup and easy replacement
- Complies with DIN 12491 certification
Product Specifications
| Catalog Number | Nominal Size (DN) | Outer Ø × Height | Inner Ø | With Stopcock | Pack Size |
|---|---|---|---|---|---|
| 467-0086 | 100 | 153 × 180 mm | 92 mm | Yes | 1 |
| 467-0087 | 150 | 215 × 250 mm | 143 mm | Yes | 1 |
| 467-0088 | 200 | 270 × 315 mm | 192 mm | Yes | 1 |
| 467-0089 | 250 | 320 × 355 mm | 239 mm | Yes | 1 |
| 467-0090 | 300 | 380 × 435 mm | 285 mm | Yes | 1 |
Applications
- Vacuum drying of hygroscopic chemicals and reagents
- Storage of moisture-sensitive samples under reduced pressure
- Controlled atmosphere experiments
- Desiccant-based drying systems
- Vacuum filtration setups in analytical and synthesis laboratories
- Ideal for chemistry, materials science, and QA/QC environments
VWR® Vacuum Desiccators, with their durable borosilicate glass construction and precision-ground joints, offer reliable vacuum sealing and superior resistance to heat, pressure, and chemicals. Engineered for maximum vacuum compatibility, they are essential for labs handling moisture-sensitive materials, supporting safe, long-term storage and processing in regulated and research environments.
- Size: 100 DN (153 × 180 mm) 150 DN (215 × 250 mm) 200 DN (270 × 315 mm) 250 DN (320 × 355 mm) 300 DN (380 × 435 mm)
