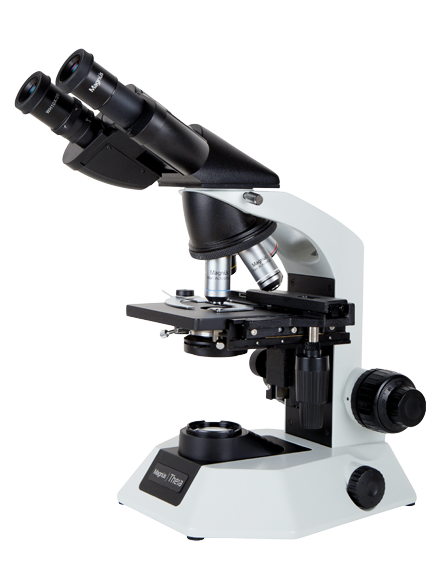

Magnus Theia-i Binocular LED microscope with battery backup

Plan infinity corrected optics

Inward facing quadruple revolving nosepiece

Sidentopf head

Dual Slide Holder

• SPECIFICATIONS

OPTICAL SYSTEM

Infinity corrected plan optics with Uniformly centered, interchangeable & parfocal , Tropicalized anti fungus treatment ensures image excellence for long periods in conditions favouring to fungus growth.

OBJECTIVES

Plan Infinite Achromat 4X, 10X, 40X, 100X

EYEPIECES

WH 10x (FN 20mm) paired eyepiece with eyeguards . The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with optionally available eyepiece micrometer

DIOPTER CORRECTION

Dioptric adjustement available on the left eyepiece tube

OBSERVATION HEAD

Binocular head (30 degree inclined seidentopf), 360 degree rotatable, diopter & eyepoint adjustment with two working heights at minimum 370 & 430mm. Interpupillary distance 48-75mm

Facility of locking mechanism to prevent observation tube from falling off"

Trinocular head (30 degree inclined seidentopf), 360 degree rotatable, diopter & eyepoint adjustment with two working heights at minimum 370 & 430mm. Interpupillary distance 48-75mm. Facility of locking mechanism to prevent observation tube from falling off

Monocular Head (30 degree inclined ), 360 degree rotatable. Facility of locking mechanism to prevent observation tube from falling off

POWER SUPPLY

(a) Built-in illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal power supply 100V-240V AC 50/60Hz single phase

(b) 3W LED light soure high brightness, longlife (30,000hrs)

(c) LED light soure (with battery back-up) high brightness, longlife (30,000hrs). Battery back-up in-built NiMH rechargeable batteries"

NOSE PIECE

Quadruple revolving inward nosepiece based on precision ball-bearing mechanism with positive click stop. Optional Quintupule nosepiece also available

BODY

Aluminium die- cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise manipuation

MECHANICAL STAGE

Co-axial low drive mechanical stage 125 mm x 145 mm with traverse area of 76 mm x 50 mm with dual slide holder

FOCUSING SYSTEM

Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm. Fine focus rotation 0.2mm

CONDENSER HOLDER

Rack and pinion mounted condenser holder

CONDENSER

Pre-centered abbe condenser with aperture iris diaphragm (N.A. 1.25) focusable with rack & opinion and a continously variable iris diaphragm with a removable blue filter for day light observation

ACCESSORIES

(a) Phase Contrast attachment, Dark field attachment , Fluorescence attachment EPILED, Kohler attachment , Polarizing attachment ,Quintiple Nosepiece.

(b) Objective 20X

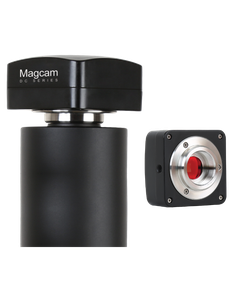

(c) MagCam digital camera 3MP/5MP/10MP/HD camera

MAGNIFICATION RANGE

40x ~ 1000x for observation

LED LIFE

30,000 hrs
