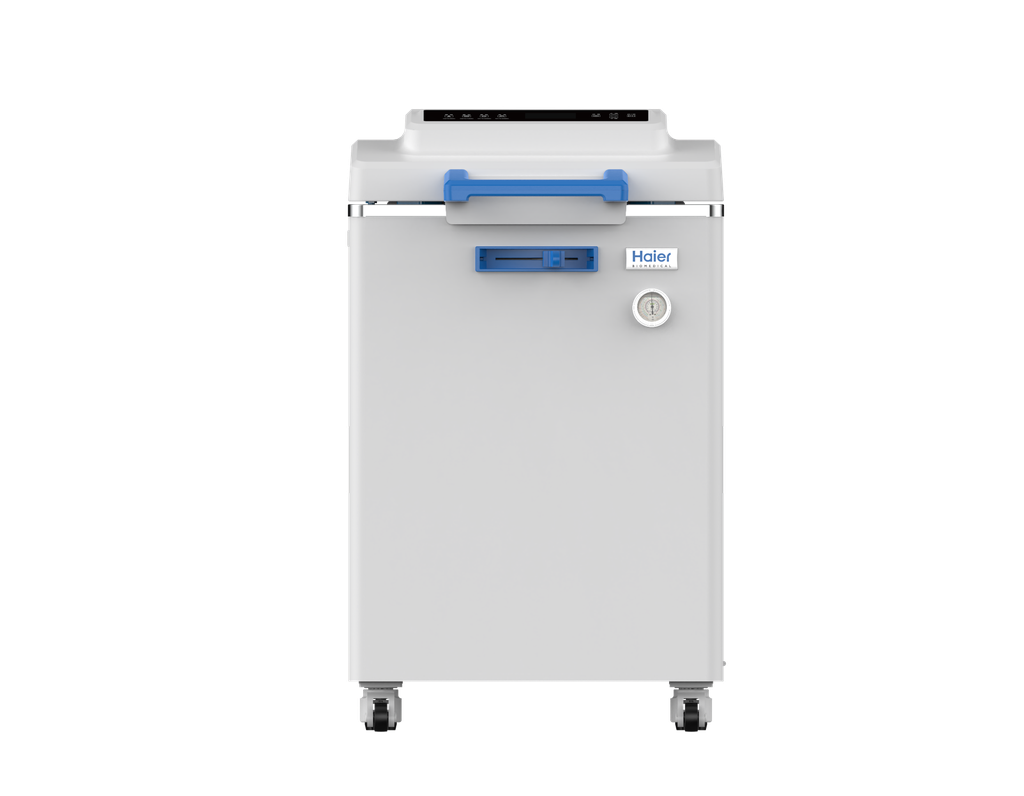

Haier Biomedical Vertical High-pressure Steam Sterilizer, LCD Display
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | sterilization | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Autoclave | ||
| Product Brand | Haier Biomedical | ||
| Product Grade | Laboratory grade | ||
The Haier Biomedical Vertical High-Pressure Steam Sterilizer – New Generation is a fully automatic, high-efficiency sterilization unit designed for rapid and effective sterilization using high-temperature saturated steam. Ideal for labs, hospitals, operating rooms, supply units, animal husbandry, and research facilities, this sterilizer supports a wide range of materials including instruments, rubber, liquids, waste, cell culture media, and glassware.
Featuring one-touch program automation, multiple exhaust and pressure relief options, and timed start capability, this vertical sterilizer offers safe, repeatable, and efficient performance for busy environments that demand reliability and precision.
Sterilization Method: High-temperature saturated steam
Control Type: Fully automatic program control
Temperature Range: Up to 150°C
Pressure Rating: Max 0.28 MPa
Applications: Medical, laboratory, research, veterinary, and waste sterilization
Models: HRLM-60A / HRLM-80A / HRLM-110A
Key Features
🔁 Fully Automatic Program Control
- Automates the complete cycle: water injection, heating, exhaust, sterilization, pressure relief, drainage, and drying
- One-click operation simplifies workflow with no manual intervention
🌬 Multiple Exhaust Modes
- Eliminates cold air pockets for better steam saturation and complete sterilization
-
Includes:
- Regular temperature exhaust
- Dynamic exhaust
- Full-process air escape
💧 Flexible Pressure Relief Options
-
Two pressure relief modes:
- Fast relief for instruments and dressings
- Slow relief for liquid sterilization to prevent overflow or boiling
🕓 Scheduled Operation & Preheat Control
- Warm-up control shortens overall heating time, boosting sterilization efficiency
- Timed start function allows scheduling of sterilization to meet workflow demands
🔘 Pre-Programmed Quick Start Options
-
One-touch access to optimized programs for:
- Instruments
- Dressings
- Rubber items
- Liquids
🌡 Adjustable Drying Function
- Set drying duration after sterilization for improved sterilized item readiness
Use Cases
🏥 Hospitals, Clinics & Operating Rooms
- Sterilization of surgical instruments, dressings, liquids, and lab waste
🔬 Laboratories & Research Institutions
- Sterilizing glassware, rubber, culture media, and biological samples
🐄 Veterinary & Animal Husbandry
- Sterilization of equipment, fluids, and animal care tools
🏭 Disease Control Centers & Pharma QA
- Decontamination of hazardous materials, equipment, and laboratory waste
Model Specifications
| Model | Power Supply (V/Hz) | Chamber Size (mm) | Max Temperature (°C) | Max Pressure (MPa) |
|---|---|---|---|---|
| HRLM-60A | 220–240V / 50–60 Hz | Ø386 × 520 | 150°C | 0.28 MPa |
| HRLM-80A | 220–240V / 50–60 Hz | Ø386 × 700 | 150°C | 0.28 MPa |
| HRLM-110A | 380V / 50–60 Hz | Ø450 × 727 | 150°C | 0.28 MPa |
Unique Advantages of Haier Vertical Steam Sterilizers
- ✅ One-button program automation streamlines sterilization
- ✅ Pre-configured quick programs enhance speed and reliability
- ✅ Multiple pressure and exhaust modes for safe sterilization of diverse loads
- ✅ Scheduled operation and preheat functionality optimize throughput
- ✅ Ideal for labs and clinical facilities with high sterilization demand
For Medical, Laboratory, Educational, Veterinary, and Biomedical Research Use Only.
- Capacity: 80 Liters 60 Liters 110 Liters
