Specifications:
| Application | Measuring |
| Storage Temperature | Ambient |
| Product Type | Measuring tools |
| Product Brand | SHAHE |
| Product Grade | Analytical grade |
High-Precision Digital Micrometer with 0.001 mm Resolution | ABS/REL Conversion | Inch/Metric Display

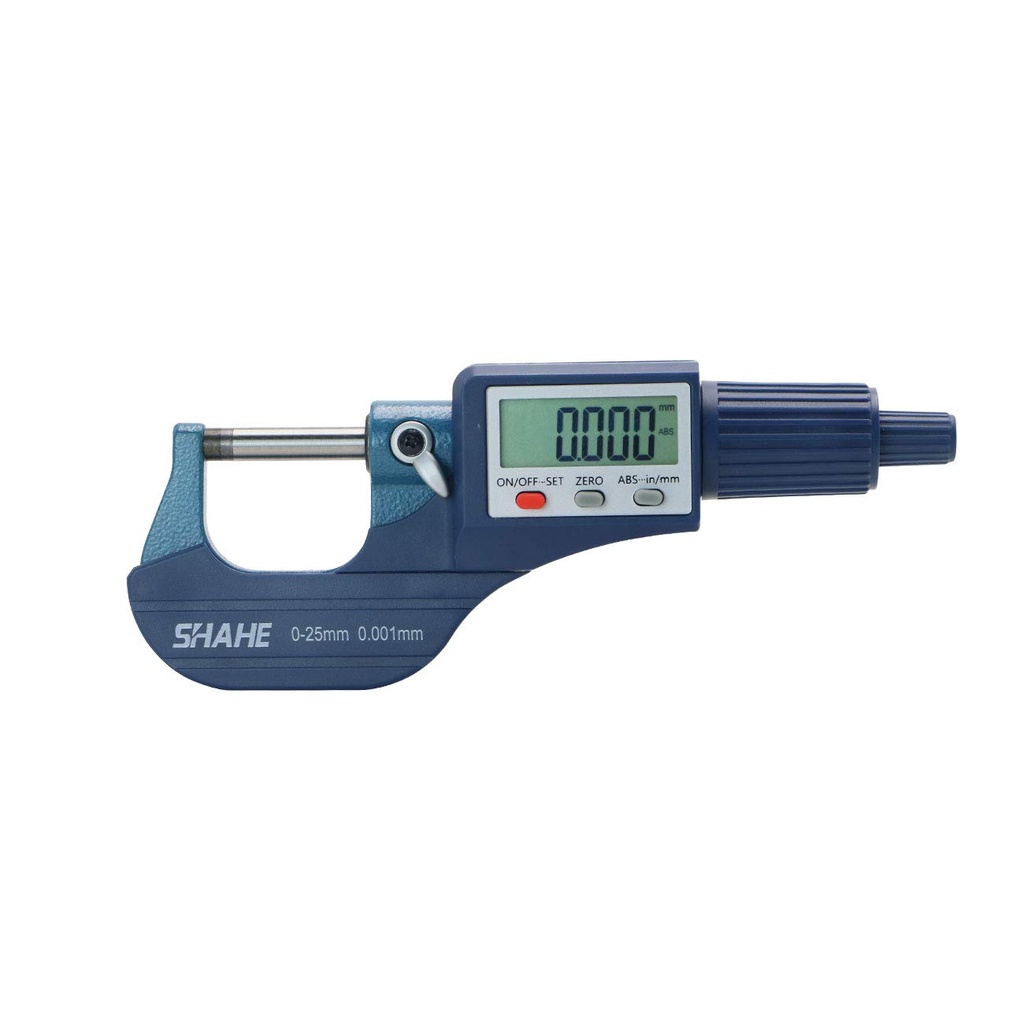

The SHAHE Digital Micrometer Screw Gauge (0–25 mm) is a precision measuring tool engineered for high-accuracy external dimension measurements in mechanical engineering, toolmaking, quality control, and metalworking. With a resolution of 0.001 mm, ±0.003 mm accuracy, and dual inch/metric display, this micrometer delivers reliable results with every use.
Designed with user convenience in mind, it features multiple zero settings, relative/absolute mode switching, and a simple button interface. It operates on a single CR2032 battery, has ultra-low power consumption (≤20 μA), and is suitable for both lab and workshop environments.
Key Features & Benefits
- ✅ 0–25 mm Measuring Range – Ideal for a wide range of general and precision applications
- ✅ High Resolution (0.001 mm) – Allows ultra-fine measurements
- ✅ ±0.003 mm Accuracy – Ensures consistent and traceable results
- ✅ Dual Unit Display (mm/inch) – Easily switch between metric and imperial systems
- ✅ ABS/REL Measurement Mode – Supports absolute and incremental readings
- ✅ Multi-Point Zero Setting – Set zero at 0.25, 50, or 75 mm for versatile reference points

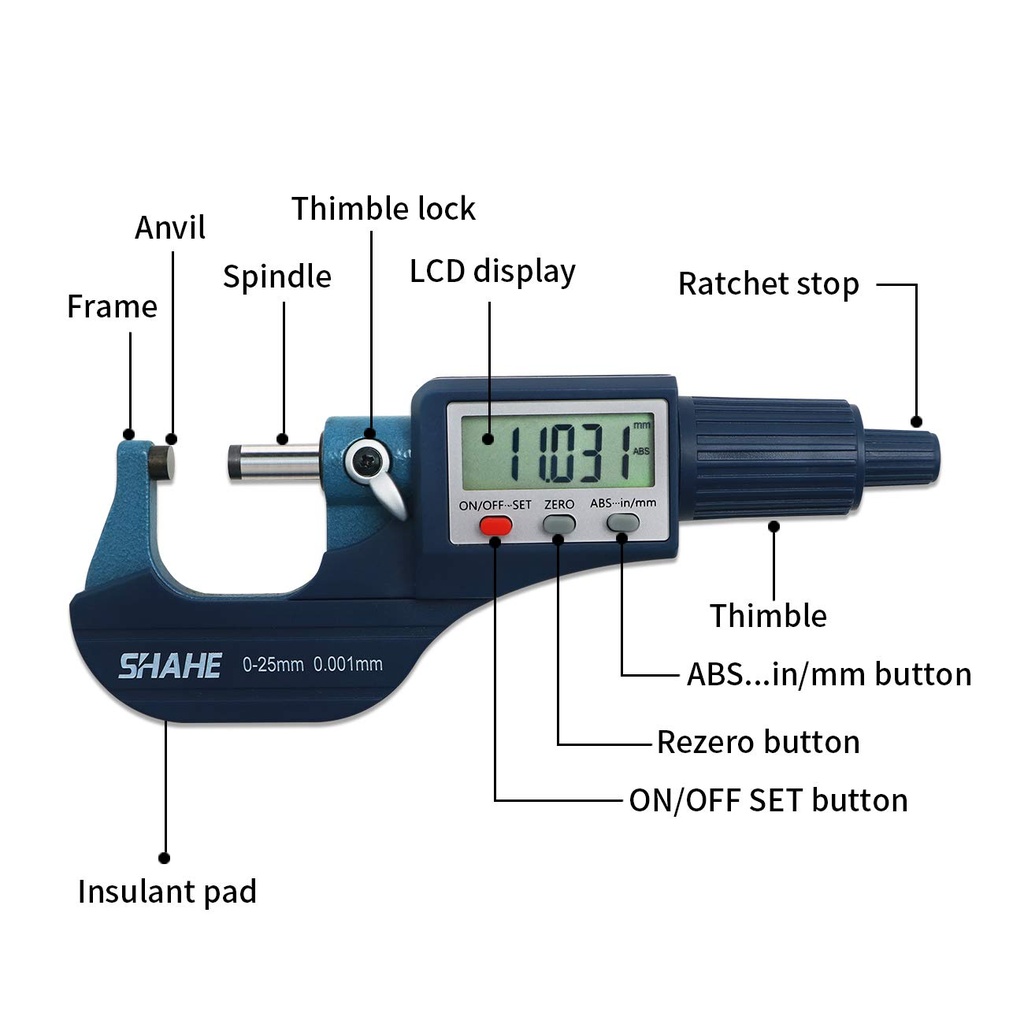

- ✅ Easy-to-Use Button Interface – ON/OFF, ZERO, and IN/MM toggle functions
- ✅ Low Power Consumption (≤20 μA) – Long-lasting performance with a single 3V CR2032 battery
- ✅ Measuring Force (5–10N) – Ensures consistent contact pressure for repeatable results
- ✅ Rugged & Compact Design – Engineered for durability in field or factory environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SHAHE Digital Micrometer 0–25 mm |
| Measuring Range | 0–25 mm |
| Resolution | 0.001 mm |
| Accuracy | ±0.003 mm |
| Display Units | mm / inch (switchable) |
| Measurement Modes | ABS (absolute) / REL (relative) |
| Measuring Force | 5–10 N |
| Power Supply | 1 × CR2032 (3V lithium battery) |
| Power Consumption | ≤20 μA |
| Operating Temperature | 0 – 40 °C |
| Storage Temperature | –20 – 60 °C |
| Buttons | ON/OFF SET, ZERO, ABS/INCH/MM |
| Special Functions | Multi-zero setting at 0.25, 50, and 75 mm |
Applications
⚙️ Precision Machining – Verify exact tolerances of turned or milled parts
🧪 Laboratory Measurement – Use in material science or metrology applications
🔩 Mechanical Engineering – Assess parts in R&D and assembly environments
🛠 Metal Fabrication & Toolmaking – Essential for checking wear, calibration, and production parts
🏭 Quality Control & Inspection – Provides accurate measurements for component verification
Ordering Information
| Item | Description |
|---|---|
| SHAHE Micrometer | Digital Screw Gauge 0–25 mm |

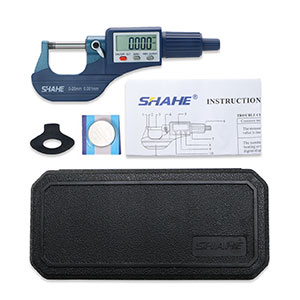

| Included Items | Micrometer, CR2032 Battery (pre-installed), Manual, Protective Box |
The SHAHE Digital Micrometer Screw Gauge (0–25 mm) combines precision, user-friendly design, and versatile functionality for professionals who require accurate and dependable measurements in metric or imperial units. Whether you're in a production facility, inspection lab, or technical workshop, this digital micrometer provides the resolution and repeatability you need in a compact, battery-efficient form factor.
