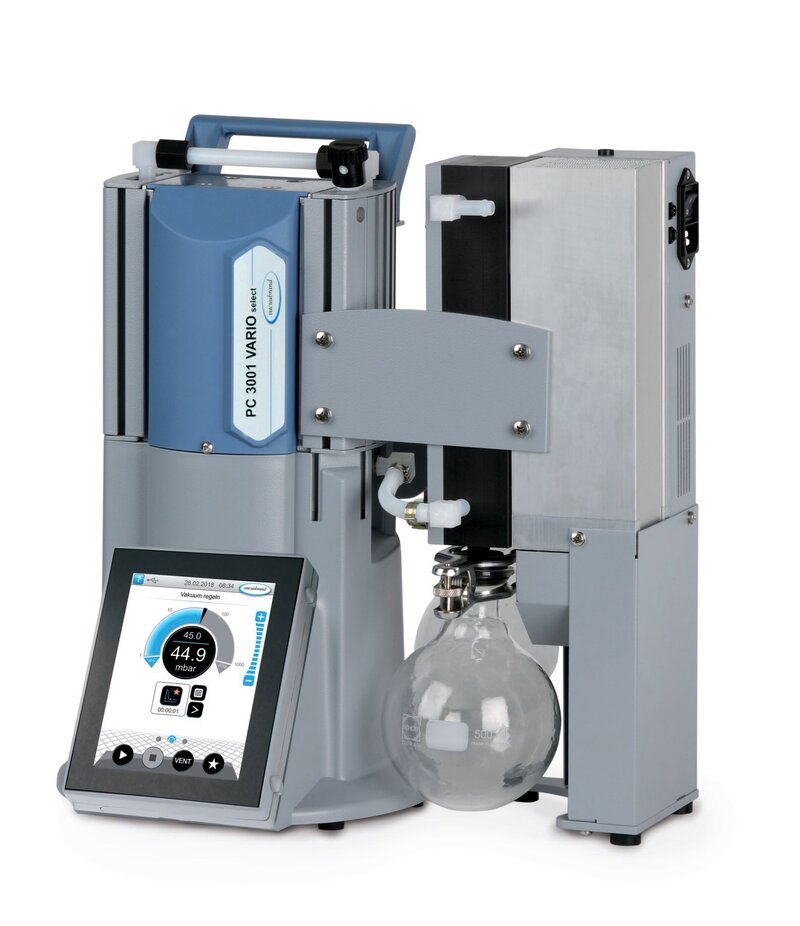

Vacuubrand VARIO® chemistry pumping unit PC 3001 VARIO select EK Peltronic
Catalog No :
CAS Number :
Brand :
In Stock
Voltage: 200-230 V~ 50-60 Hz
Specifications:
| Application | Analytical Chemistry | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Sample Prep | ||
| Product Brand | vacuubrand | ||
| Product Grade | Analytical grade | ||
The PC 3001 VARIO select EK Peltronic is an advanced, oil-free chemistry diaphragm pumping unit designed for high precision, reliability, and automation in modern laboratories. It is engineered to deliver unmatched vacuum control, even for challenging, high-boiling-point solvents. Equipped with the intelligent VACUU·SELECT® controller, the system offers an intuitive, application-based interface that supports all common laboratory workflows—from manual set-point regulation to fully automated distillations and custom programmable applications.
During solvent evaporation, the pump automatically detects the boiling point and adjusts motor speed to maintain an optimal vacuum level, ensuring consistent process stability. Its VARIO® motor speed control further enhances performance by reducing noise, minimizing vibration, and extending maintenance intervals. Combined with an effective glass inlet separator and the innovative Peltronic emission condenser, which requires no cooling media, this pumping unit guarantees long-term durability, efficient solvent recovery, and environmentally friendly operation.
Key Performance Features
- Peltronic condenser operates without cooling water or dry ice for simple and reliable solvent recovery.
- VACUU·SELECT® graphical controller with predefined laboratory applications and drag-and-drop custom workflow creation.
- Automatic boiling point recognition for stable and optimized vacuum control across all evaporation processes.
- Quiet, ultra-low vibration operation enabled by dynamic VARIO® motor speed adjustment.
- Exceptional chemical resistance with long service intervals thanks to advanced diaphragm technology.
- Eco-friendly and oil-free, featuring low energy consumption and efficient condensate management.
- Compact design with consistently high performance, even under continuous condensate purge.
Technical Data – PC 3001 VARIO Select EK Peltronic
| Technical Parameter | Unit | Value |
|---|---|---|
| Vacuum controller | – | VACUU·SELECT® |
| Pump heads / stages | – | 4 / 3 |
| Max. pumping speed | m³/h | 2.0 |
| cfm | 1.2 | |
| Ultimate vacuum (abs.) | mbar / torr | 2.0 / 1.5 |
| Ultimate vacuum with gas ballast | mbar / torr | 4 / 3 |
| Ambient temperature (operation) | °C | 10 – 40 |
| Ambient temperature (storage) | °C | –10 – 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | – | Hose nozzle DN 6–10 mm |
| Outlet connection | – | Hose nozzle DN 8–10 mm |
| Rated motor power | kW | 0.16 |
| Motor speed range | min⁻¹ | 200 – 3000 |
| Protection class | – | IP 20 |
| Dimensions (L × W × H) | mm | 300 × 370 × 400 |
| Weight | kg | 11.8 |
| Noise level (typ., 50 Hz) | dBA | 42 |
| ATEX conformity (230 V only) | – | II 3/- G Ex h IIC T3 Gc X (Internal atm. only) |
| Items supplied | – | Fully assembled pumping unit; operation manual |
| Accessories | – | Rubber tubing DN 6 mm (20686000) Rubber tubing DN 8 mm (20686001) Vent valve VB M-B (20674217) Liquid level sensor (20699908) VACUU·BUS® Y-Adapter with 2 m cable (20683240) |
Ordering Data
| Product Name | Mains Voltage & Frequency | Plug Type | Order No. |
|---|---|---|---|
| PC 3001 VARIO select EK Peltronic | 200–230 V~ 50–60 Hz | IEC Plug EN 60320 | 20700245 |
The PC 3001 VARIO select EK Peltronic stands out as a high-precision, low-maintenance, and energy-efficient vacuum solution for demanding laboratory applications. Its combination of intelligent automated control, whisper-quiet oil-free operation, robust chemical resistance, and maintenance-free Peltronic emission condenser makes it an ideal choice for rotary evaporation, distillation, filtration, drying, and general solvent handling. For laboratories seeking reliability, efficiency, and full process automation, the PC 3001 VARIO select EK Peltronic delivers unmatched performance and long-term value.
