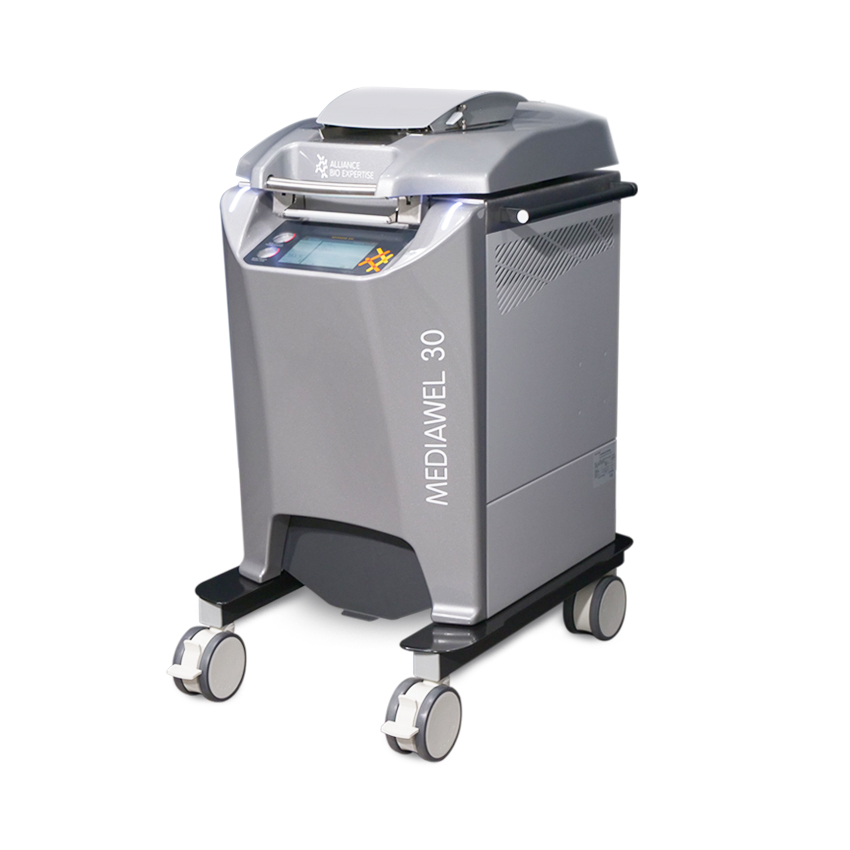

ABE MEDIAWEL 30 Automated Media Preparator, 30 L, 400 V
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Microbiology, sterilization | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Alliance Bio Expertise | ||
| Product Grade | Microbiology grade | ||
ABE MEDIAWEL 30 is a new-generation automated media preparator designed for rapid, efficient, and reproducible preparation of culture media, agar media, and broths in volumes from 2.5 to 30 liters. It is suitable for demanding microbiology laboratories that require reliable media sterilization, homogenization, traceability, safety, and documentation.
With its 7″ glove-friendly LCD touchscreen, powerful magnetic stirring system, programmable operation, USB data export, and optional WiFi/Ethernet traceability, MEDIAWEL 30 helps laboratories improve productivity, reduce manual handling, and maintain consistent media quality across routine and high-volume preparation workflows.
Key Features
| Feature | Details |
|---|---|
| Large Capacity | Prepares culture media volumes from 2.5 to 30 L |
| Automated Media Preparation | Supports preparation of agar media, broths, and other culture media |
| Intuitive Touchscreen | 7″ tactile LCD touchscreen, glove friendly |
| Program Memory | Stores up to 150 programs |
| Excellent Homogeneity | Continuous homogenization ensures uniform media consistency |
| High Temperature Accuracy | ±0.5 °C temperature accuracy |
| Full Traceability | Integrated eTRACE® module with USB data export in PDF/CSV format |
| Optional Real-Time Monitoring | Labpage® dashboard via WiFi/Ethernet for real-time monitoring and SD card storage |
| CFR21 Part 11 Support | User management with password, audit trail, data integrity, and automatic operator logout |
| Safe Operation | Safety lid locks above 80 °C and pressure release is set at 1.7 bar |
| Easy Mobility | Stable and easy to move with four large medical wheels |
| Robust Construction | Stainless steel AISI 316L vessel and antishock ABS PC plastic body |
Key Benefits
Perfect Homogeneity for Culture Media
The MEDIAWEL 30 provides continuous homogenization to maintain uniform temperature and media consistency throughout the vessel. This helps preserve media quality, appearance, and fertility while reducing batch-to-batch variability.
Simplified Preparation
The system is designed for ergonomic and efficient media preparation. Its touchscreen interface, programmable cycles, and easy vessel access simplify daily operation for routine and high-throughput laboratories.
Complete Cycle Traceability
MEDIAWEL 30 includes an integrated eTRACE® module with USB data export in PDF or CSV format. Optional WiFi/Ethernet connectivity enables the Labpage® dashboard for real-time monitoring and data storage on SD card for up to 10,000 cycles.
Compliance-Oriented Data Management
The system supports CFR21 Part 11 requirements, including user management with password protection, audit trail, non-erasable and non-editable data integrity, and automatic operator logout.
Easy Cleaning and Maintenance
The unit includes a trapdoor for easy access to the vessel, making cleaning and routine maintenance more convenient. Smooth vessel design supports efficient cleaning and helps reduce contamination risks.
Work with Confidence
MEDIAWEL 30 includes multiple safety systems, including a locked lid above 80 °C, safety pressure release at 1.7 bar, and audio plus multicolored visual alarms for clear operational status indication.
Applications
MEDIAWEL 30 is suitable for:
- Automated preparation of culture media
- Agar and broth media preparation
- Microbiology laboratory workflows
- Pharmaceutical microbiology and QC laboratories
- Research and academic microbiology laboratories
- Food, water, and environmental microbiology testing labs
- High-volume media preparation
- Media preparation requiring traceability and reproducibility
- Preparation of media for Petri dish filling and downstream dispensing workflows
Technical Data Sheet
| Parameter | Specification |
|---|---|
| Product Name | ABE MEDIAWEL 30 Automated Media Preparator |
| Reference | MEDW1001 |
| Capacity | 2.5 to 30 L |
| Sterilization Temperature | 16 to 125 °C |
| Sterilization Time | 1 to 99 minutes |
| Distribution Temperature | 16 to 80 °C |
| Temperature Accuracy | ±0.5 °C |
| Remaining Volume | <100 mL |
| Addition Cap | Included, with possibility to use septum |
| Traceability | eTRACE® module integrated; USB data export in PDF/CSV |
| Optional WiFi/Ethernet Traceability | Labpage® dashboard; real-time data monitoring; SD card storage up to 10,000 cycles |
| CFR21 Part 11 | User management with password, audit trail, data integrity, non-erasable/non-editable data, automatic operator logout |
| Temperature Probe | 3 probes: 1 standard, 1 optional, and 1 for calibration |
| Safety Pressure Release | 1.7 bar safety valve |
| Dispensing Port | Adapters for 6.4 mm and 12 mm tubes; 8 mm and 17 mm available as options |
| Continuous Homogenization | Yes |
| Touchscreen | Tactile, glove-friendly 7″ LCD |
| Alarm | Audio and multicolored visual alarm |
| Cleaning | Trapdoor with easy access to the vessel |
| Mobility | Stable and easy to move with 4 large medical wheels |
| Robustness | Antishock body, ABS PC plastic |
| Vessel | Stainless steel AISI 316L |
| Programs | 150 |
| Weight | 154 kg |
| Dimensions | 585 x 735 x 1053 mm, L x W x H |
| Power Supply, MEDW1001 | 400 V ±10%, three-phase, 18 A max per phase, 50/60 Hz, 9000 W ±10% |
| Power Supply, MEDW1002 | 208 V ±10%, three-phase, 28 A max per phase, 50/60 Hz, 7400 W ±10% |
| Country of Origin | France, European Union |
| Warranty | 1 year |
Supplied Accessories
| Included Item | Reference / Details |
|---|---|
| MEDIAWEL Unit | Automated media preparator |
| USB Key | Includes user manual and quality report |
| Large Magnetic Stirrer | MEDW2008 |
| Sampling Tube | MEDW2029 |
| Draining Plug | MEDW2028 |
| Sampling Nozzle Seals | MEDW4011, set of 2 |
| Sampling Nozzles | MEDW2003, Ø12 mm and MEDW2004, Ø6.4 mm |
| Inlet and Outlet Water Tubing | 4 m tubing with 4 tubing clamps, MEDW4012 |
| Decompression Filters | MEDW3014, 3 pieces |
| BactiStopper | Calibrated sterile carded cotton, pack of 50, MEDW3003 |
| Sliding Washer Stirrer Axis | MEDW4003, 2 pieces |
| Labpage® Real-Time Data Monitoring License | 3 months free access |
Ideal Users
| User Type | Benefit |
|---|---|
| Microbiology Laboratories | Standardized preparation of agar and broth culture media |
| High-Throughput Laboratories | Efficient preparation of large media volumes up to 30 L |
| Pharmaceutical QC Laboratories | Traceable and reproducible media preparation for quality-controlled workflows |
| Research Institutions | Reliable media preparation for routine and specialized microbiology studies |
| Food and Environmental Testing Labs | Consistent media quality for routine microbial testing workflows |
ABE MEDIAWEL 30 combines capacity, automation, safety, and traceability in one mobile media preparation system. With its 2.5–30 L capacity, stainless steel AISI 316L vessel, continuous homogenization, 150 programmable cycles, USB data export, optional Labpage® real-time monitoring, and CFR21 Part 11 support, it is an ideal solution for laboratories requiring efficient, reproducible, and well-documented culture media preparation.
