LabTech EV400VAC Rotary Evaporator, Motorized Lift with Integrated Vacuum Controller, 230 V
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Distillation | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | LabTech | ||
| Product Grade | Analytical grade | ||
The LabTech EV400VAC Rotary Evaporator is the most advanced model in the EV400 Series, integrating a high-precision vacuum controller, touchscreen display, and motorized lift to deliver unmatched control, performance, and safety in laboratory evaporation. Designed for both research and production environments, it provides precise, automated management of rotation, temperature, and vacuum parameters to maximize efficiency and solvent recovery.
Equipped with a built-in vacuum controller (0–999 mbar) and high-precision anticorrosive vacuum sensor (±1 mbar accuracy), the EV400VAC allows users to achieve exact vacuum levels for any solvent, ensuring stable control and reproducible results. The removable touchscreen display offers access to an advanced solvent database, automatically optimizing rotation and vacuum parameters based on solvent characteristics.
Key Features
- Integrated Vacuum Controller: Provides digital vacuum control (0–999 mbar) with ±1 mbar precision via an anticorrosive vacuum sensor for consistent and stable operation.
- Touchscreen Control Interface: Removable 7” touchscreen with intuitive navigation, solvent database, and automatic adjustment of evaporation parameters.
- Motorized Vertical Lift: Smooth, quiet, and precise motorized operation for raising and lowering glassware.
- Digital Rotation & Temperature Control: Adjustable rotation speed (20–300 rpm) and bath temperature control for exact evaporation settings.
- Heating Bath Design: Standalone 5 L bath compatible with both oil and water, constructed from PTFE/stainless steel for durability, with a temperature range from ambient to 180 °C.
- Sample Addition System: Integrated PTFE valve for online sample addition during evaporation, improving workflow efficiency.
-
Safety Protections:
- Automatic Lift-Up: Lifts glassware from bath automatically during power failure.
- Dry-Bath Protection: Shuts off power when liquid level is too low.
- PTFE/FKM Sealing: Ensures corrosion resistance and vacuum integrity.
- Safety Clamps: Secure evaporating and receiving flasks to prevent breakage.

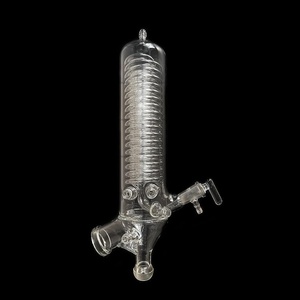

- Glassware Options: Includes 1 L evaporating flask, 1 L receiving flask, and a vertical condenser as standard; diagonal and dry ice condensers available upon request.
- Customizable Glassware: Plastic-coated options available for added safety and durability.
Technical Highlights
| Parameter | Specification |
|---|---|
| Vacuum Range | 0–999 mbar (±1 mbar precision) |
| Display | Removable touchscreen with solvent database |
| Lift Type | Motorized vertical lift |
| Rotation Speed | 20–300 rpm |
| Flask Capacity | 50 mL – 3,000 mL |
| Heating Bath | 5 L, PTFE/stainless steel, oil/water compatible |
| Temperature Range | Ambient – 180 °C |
| Sealing Material | PTFE/FKM |
| Sample Addition | PTFE valve for continuous operation |
| Safety Features | Auto lift-up, dry-bath protection, secure clamps |
| Standard Glassware | 1 L evaporating flask, 1 L receiving flask, vertical condenser |
| Optional Glassware | Diagonal condenser, dry ice condenser, coated glassware |
| Power Supply | 230 V / 50–60 Hz |
| Certification | CE |
Applications
- Solvent Distillation and Recovery
- Concentration of Solutions and Extracts
- Organic and Inorganic Synthesis
- Crystallization and Recrystallization Processes
- Purification and Separation of Chemical Mixtures
- Vacuum Distillation of Heat-Sensitive Substances
- Food Technology and Molecular Gastronomy
- Pharmaceutical and Chemical R&D
Ordering Information
| P/N | Model Description | Application |
|---|---|---|
| LEV400NV-V | EV400VAC-V Rotary Evaporator – Motorized vertical lift – Vertical condenser – 180 °C – 300 rpm – Integrated vacuum controller | Standard laboratory distillation, solvent recovery, and sample concentration |
| LEV400NV-V-C | EV400VAC-V Rotary Evaporator – Motorized vertical lift – Vertical condenser – Coated glassware – 180 °C – 300 rpm – Integrated vacuum controller | For corrosive or hazardous solvents; enhanced safety and durability |
| LEV400NV-L | EV400VAC-L Rotary Evaporator – Motorized vertical lift – Diagonal condenser – 180 °C – 300 rpm – Integrated vacuum controller | For laboratories with limited vertical clearance; optimized for reflux operations |
| LEV400NV-L-C | EV400VAC-L Rotary Evaporator – Motorized vertical lift – Diagonal condenser – Coated glassware – 180 °C – 300 rpm – Integrated vacuum controller | For volatile and reactive samples requiring added protection |
Accessories
- Vacuum Pump: LabTech VP18 Plus (18 L/min, 20 mbar, oil-free)
- Water Chiller: LabTech H50-500 (500 W, 5 °C to 35 °C)
- Glassware Options: Plastic-coated condensers, diagonal or dry ice condensers
The LabTech EV400VAC Rotary Evaporator represents the pinnacle of rotary evaporation performance within the EV Series. With its integrated vacuum controller, precision touchscreen interface, and motorized lift, it provides full digital control of every evaporation parameter for superior reproducibility and solvent recovery.
Offering enhanced safety mechanisms, advanced vacuum management, and customizable glassware configurations, the EV400VAC ensures efficient, safe, and high-yield solvent distillation for chemical, pharmaceutical, and research laboratories seeking premium reliability and precision.
- Model: EV400VAC-V; Vertical condenser with standard glassware EV400VAC-V; Vertical condenser with plastic Coated glassware EV400VAC-L; Diagonal condenser with standard glassware EV400VAC-L; Diagonal condenser with plastic Coated glassware
