Hamilton Aquamatic™ Automatic Cabinet Water Still System
Catalog No :
CAS Number :
Brand :
In Stock
for High-Purity Distilled Water Production
Specifications:
| Application | Water Purification | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Hamilton Laboratory Glass | ||
| Product Grade | Analytical grade | ||

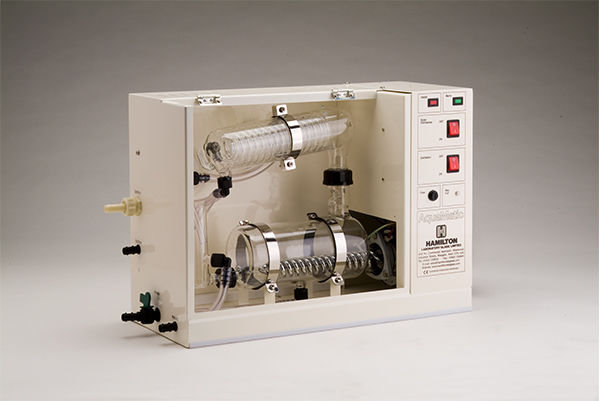

The Hamilton Aquamatic™ Water Still is a fully automatic, self-running laboratory water distillation system designed to produce high-purity, pyrogen-free distilled water for routine and critical laboratory applications. Built with high-grade borosilicate glassware and housed in a durable cabinet, the Aquamatic range offers reliable, continuous operation with automatic safety shut-off.
Once the internal reservoir is full, the system automatically switches off power and water supply, ensuring safe, unattended operation. All models are thermostatically controlled, protecting the unit from overheating and water supply failure.
Key Features & Benefits
- Fully automatic operation – self-running with auto shut-off
- Thermostatic control – shuts down power and water on fault detection
- Borosilicate glassware – chemically resistant and long-lasting
- Pyrogen-free distilled water output
- Low conductivity (<2.5 µS/cm) suitable for laboratory use
- Wall or bench mountable design
- Flow control valve for optimized operation
- Minimal supervision required
Water Quality Specifications
- pH: 5.5 – 6.5
- Conductivity: < 2.5 µS/cm
- Resistivity: 0.4 MΩ·cm
- Distillate Temperature: < 35 °C
- Pyrogen Content: Pyrogen-free
Safety & Control Features
- Thermostatic cut-out protection
- Water supply cut-out protection
- Automatic power shut-off when reservoir is full
- Designed for continuous laboratory duty
| Model / Variant | Output (L/hr) | Heating System | Heater Type | Power Supply | Fuse Rating | Min. Water Pressure | Water Quality | Mounting Options | Net Weight | Key Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| AWC 4 – Metal Heater | 4 | 1 × 3 kW | Metal | 220–240 V | 13 Amp | ≥ 5 psi | pH 5.5–6.5; Conductivity <2.5 µS/cm; Resistivity 0.4 MΩ·cm; Temp <35 °C | Wall / Bench | 12 kg | Standard distilled water production |
| AWC 4 – Silica Heater (Pyrogen-Free) | 4 | 2 × 1.5 kW | Silica | 220–240 V | 13 Amp | ≥ 5 psi | pH 5.5–6.5; Conductivity <2.5 µS/cm; Resistivity 0.4 MΩ·cm; Temp <35 °C | Wall / Bench | 12 kg | Pyrogen-free output; enhanced purity |
| AWC 8 – High Output | 8 | 2 × 3 kW | Metal | 220–240 V | 2 × 13 Amp | ≥ 5 psi | pH 5.5–6.5; Conductivity <2.5 µS/cm; Resistivity 0.4 MΩ·cm; Temp <35 °C | Wall / Bench | 20 kg | High-capacity model for larger labs |
| AWC 8S – High-Capacity Silica (Pyrogen-Free) | 8 | 4 × 1.5 kW | Silica | 220–240 V | 13 Amp | ≥ 5 psi | pH 5.5–6.5; Conductivity <2.5 µS/cm; Resistivity 0.4 MΩ·cm; Temp <35 °C | Wall / Bench | 20 kg | Heavy-duty, pyrogen-free configuration |
Applications
- Clinical and research laboratories
- Pharmaceutical quality control
- Educational and teaching laboratories
- Glassware rinsing
- Media and reagent preparation
- General laboratory distilled water supply
Installation & Operation
- Requires standard mains water supply (≥5 psi)
- Operates on single-phase 220–240 V power
- Can be wall-mounted or bench-top installed
- Simple startup with minimal operator intervention
Advantages Over RO-Only Systems
- Produces true distilled water
- Removes dissolved salts, particulates, and pyrogens
- Not dependent on membrane performance
- Ideal for laboratories without centralized purified water systems
The Hamilton Aquamatic™ Water Still range provides a robust, automatic, and dependable solution for laboratory distilled water production. With multiple output capacities, high-quality borosilicate construction, and built-in safety systems, it is an excellent choice for laboratories requiring consistent, pyrogen-free distilled water with minimal maintenance.
- Capacity: 4 L/Hr with 1 × 3 kW Metal Heater 4 L/Hr with 2 × 1.5 kW Silica Heaters (Pyrogen-Free) 8 L/Hr with 2 × 3 kW Metal Heaters 8 L/Hr with 4 × 1.5 kW Silica Heaters (Pyrogen-Free)
