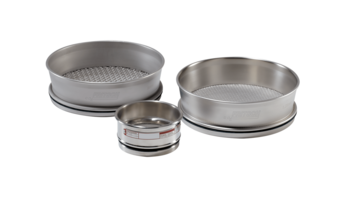

FRITSCH ANALYSETTE™ 3 Test Sieves (8" Dia., 2" Height), According to ASTM E11 Mesh with Compliance Certificate
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Particle size distribution |
| Material | Stainless steel |
| Storage Temperature | Ambient |
| Product Type | Laboratory Sieves |
| Product Brand | FRITSCH GmbH |
| Product Grade | Analytical grade |
The FRITSCH ANALYSETTE™ 3 Test Sieves (8" diameter, 2" height) are precision-engineered sieves designed for accurate and reproducible particle size analysis in accordance with ASTM E11 standards.
Manufactured from highly alloyed stainless steel, these sieves provide excellent corrosion resistance, mechanical stability, and long service life, making them ideal for both dry and wet sieving applications across a wide range of industries.
Each sieve is laser-engraved, optically measured, and supplied with a compliance certificate, ensuring full traceability and reliability in quality control, research, and regulatory laboratory environments.
Key Features
-
ASTM E11 Certified Precision
- Meets strict ASTM E11 requirements for mesh accuracy
- Ensures reproducible and standardized results
-
High-Quality Stainless Steel Construction
- Corrosion-resistant and easy to clean
- Suitable for demanding laboratory conditions
-
Wide Mesh Size Range
- Available from 63 mm down to 20 µm (No. 635)
- Covers coarse, medium, and fine particle analysis
-
Laser Engraving & Optical Verification
- Permanent identification and traceability
- Guaranteed mesh accuracy
-
Contamination-Free Design
- Groove-free mesh transitions
- Prevents material retention and cross-contamination
-
Compliance Certificate Included
- Supports audits and quality management systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | ASTM E11 |
| Diameter | 8 inches (203 mm) |
| Height | 2 inches (50 mm) |
| Material | Stainless Steel (Frame & Mesh) |
| Mesh Range | 63 mm – 20 µm |
| Certification | Compliance Certificate Included |
| Application | Dry and Wet Sieving |
Ordering Information
| Order No. | Mesh (ASTM / Inch) | Mesh Width |
|---|---|---|
| 35.0220.03 | 1" | 25 mm |
| 35.0320.03 | 7/8" | 22.4 mm |
| 35.0620.03 | 3/4" | 19 mm |
| 35.0820.03 | 5/8" | 16 mm |
| 35.0920.03 | 0.53" | 13.2 mm |
| 35.1020.03 | 1/2" | 12.5 mm |
| 35.1120.03 | 7/16" | 11.2 mm |
| 35.1220.03 | 3/8" | 9.5 mm |
| 35.1420.03 | 5/16" | 8 mm |
| 35.1520.03 | 0.265" | 6.7 mm |
| 35.1620.03 | 1/4" | 6.3 mm |
| 35.1720.03 | 3 1/2 | 5.6 mm |
| 35.1820.03 | 4 | 4.75 mm |
| 35.2020.03 | 5 | 4 mm |
| 35.2120.03 | 6 | 3.35 mm |
| 35.2320.03 | 7 | 2.8 mm |
| 35.2420.03 | 8 | 2.36 mm |
| 35.2620.03 | 10 | 2 mm |
| 35.2820.03 | 12 | 1.7 mm |
| 35.2920.03 | 14 | 1.4 mm |
| 35.3020.03 | 16 | 1.18 mm |
| 35.3220.03 | 18 | 1 mm |
| 35.3420.03 | 20 | 850 µm |
| 35.3520.03 | 25 | 710 µm |
| 35.3620.03 | 30 | 600 µm |
| 35.3820.03 | 35 | 500 µm |
| 35.4020.03 | 40 | 425 µm |
| 35.4120.03 | 45 | 355 µm |
| 35.4220.03 | 50 | 300 µm |
| 35.4420.03 | 60 | 250 µm |
| 35.4620.03 | 70 | 212 µm |
| 35.4720.03 | 80 | 180 µm |
| 35.4820.03 | 100 | 150 µm |
| 35.5020.03 | 120 | 125 µm |
| 35.5220.03 | 140 | 106 µm |
| 35.5420.03 | 170 | 90 µm |
| 35.5820.03 | 200 | 75 µm |
| 35.6020.03 | 230 | 63 µm |
| 35.6220.03 | 270 | 53 µm |
| 35.6620.03 | 325 | 45 µm |
| 35.7020.03 | 400 | 38 µm |
| 35.7220.03 | 450 | 32 µm |
| 35.7620.03 | 500 | 25 µm |
| 35.7820.03 | 635 | 20 µm |
Applications
- Construction materials and aggregate testing
- Soil and geotechnical analysis
- Food and agricultural testing
- Pharmaceutical powder analysis
- Chemical and mineral processing
- Environmental sample testing
- Quality control and research laboratories
Comparison Guide
| Feature | ASTM E11 Sieves (8") | ISO 3310 Sieves (200 mm) |
|---|---|---|
| Standard | ASTM E11 | ISO 3310-1 |
| Region | US / International ASTM markets | Europe / International ISO markets |
| Diameter | 8" (203 mm) | 200 mm |
| Mesh Labeling | Mesh number & inch | Metric (mm / µm) |
| Applications | Construction, aggregates, geotech | Pharma, food, general lab |
Unique Advantages
- ASTM-compliant precision for regulated testing environments
- Wide mesh size selection for full particle distribution analysis
- Durable stainless steel construction for long-term use
- Traceability through laser engraving and certification
- Contamination-free design for reliable results
For optimal workflow:
- Use ASTM sieves for construction, civil engineering, and geotechnical labs
- Combine with ANALYSETTE™ 3 PRO + AUTOSIEVE software for automated analysis
- Build complete sieve stacks (coarse → fine) for full granulometry studies
The FRITSCH ANALYSETTE™ 3 ASTM E11 Test Sieves (8") provide a high-precision, durable, and compliant solution for particle size analysis across demanding laboratory and industrial applications.
With certified accuracy, robust construction, and a wide mesh range, they are essential tools for achieving reliable and reproducible sieve analysis results.
- Mesh Width: 1" = 25 mm mesh width 7/8" = 22.4 mm mesh width 3/4" = 19 mm mesh width 5/8" = 16 mm mesh width 0.53" = 13.2 mm mesh width 1/2" = 12.5 mm mesh width 7/16" = 11.2 mm mesh width 3/8" = 9.5 mm mesh width 5/16" = 8 mm mesh width 0.265" = 6.7 mm mesh width 1/4" = 6.3 mm mesh width 3 1/2 = 5.6 mm mesh width 4 = 4.75 mm mesh width 5 = 4 mm mesh width 6 = 3.35 mm mesh width 7 = 2.8 mm mesh width 8 = 2.36 mm mesh width 10 = 2 mm mesh width 12 = 1.7 mm mesh width 14 = 1.4 mm mesh width 16 = 1.18 mm mesh width 18 = 1 mm mesh width 20 = 850 µm mesh width 25 = 710 µm mesh width 30 = 600 µm mesh width 35 = 500 µm mesh width 40 = 425 µm mesh width 45 = 355 µm mesh width 50 = 300 µm mesh width 60 = 250 µm mesh width 70 = 212 µm mesh width 80 = 180 µm mesh width 100 = 150 µm mesh width 120 = 125 µm mesh width 140 = 106 µm mesh width 170 = 90 µm mesh width 200 = 75 µm mesh width 230 = 63 µm mesh width 270 = 53 µm mesh width 325 = 45 µm mesh width 400 = 38 µm mesh width 450 = 32 µm mesh width 500 = 25 µm mesh width 635 = 20 µm mesh width
