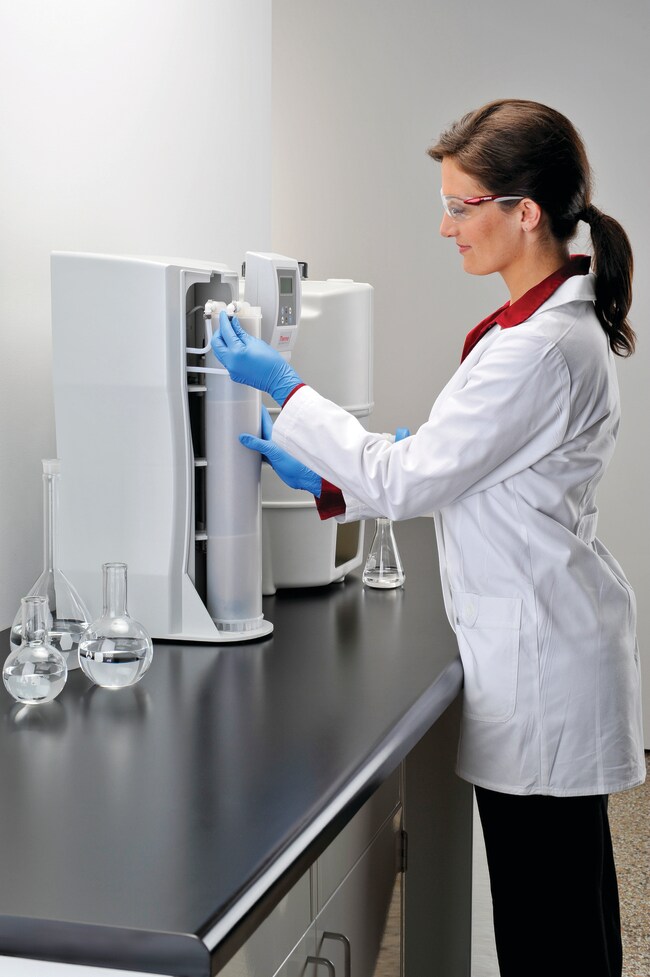

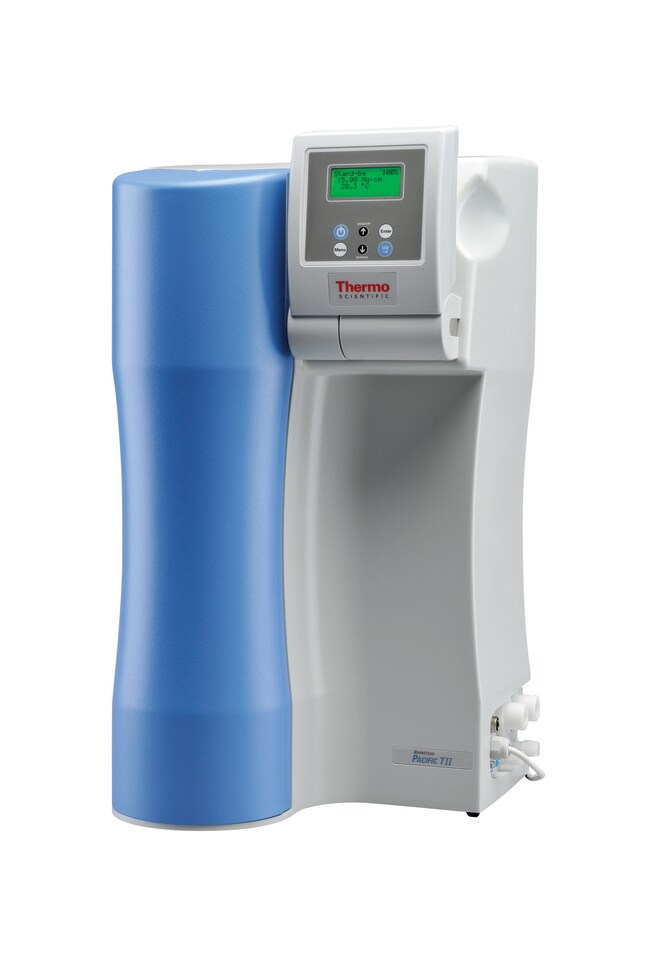

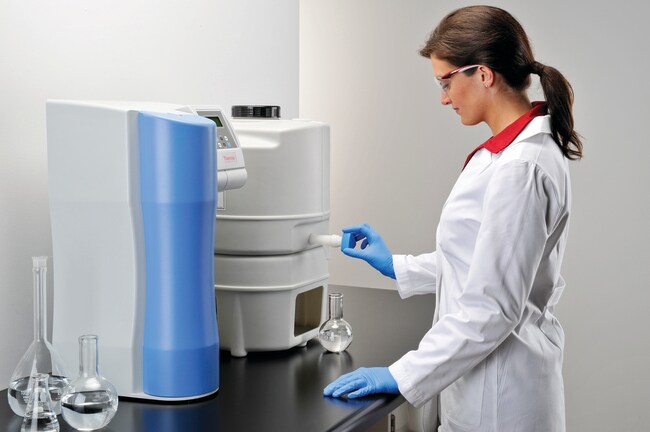

Thermo Scientific™ Barnstead™ Pacific TII Water Purification System
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Water Purification | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Analytical grade | ||
The Thermo Scientific™ Barnstead™ Pacific TII Water Purification System is a reliable and cost-efficient solution for converting tap water into Type 2 high purity water for routine laboratory applications. Designed to meet daily laboratory water demands from 20 to 200 liters, this system combines high-performance reverse osmosis technology, automatic process control, and flexible installation options to deliver consistent, high-quality purified water for analytical, biological, and general laboratory use.
Engineered for operational reliability and ease of use, the Pacific TII system removes approximately 98% of inorganic ions, 99% of dissolved organic substances, as well as microorganisms and particles. With multiple flow-rate configurations, optional UV versions, and upgrade potential, it is an ideal choice for laboratories seeking scalable and dependable pure water production.
Key Features
High-Purity Type 2 Water Production
- Converts tap water into Type 2 pure water suitable for a wide range of laboratory applications
- Removes approximately 98% of inorganic ions
- Removes 99% of dissolved organic substances
- Reduces microorganisms and particles effectively through a high-performance reverse osmosis membrane
Multiple System Options
- Available in multiple permeate flow configurations to match laboratory demand
- System options available with and without UV lamp
- Future upgrade capability allows increased capacity as water needs grow
Reliable, Automated Operation
- Microprocessor-controlled for fully automatic operation
- Continuous monitoring of critical operating parameters
- Automatic return to operating mode ensures recirculation during standstill periods
- UV lamp helps prevent biological contamination in UV models only
User-Friendly Design
- Large back-lit control panel with clear resistivity/conductivity display
- Adjustable, tilting display for optimal viewing
-
Clear operating mode indicators for:
- Production
- Stand-by
- Cleaning
- Reservoir fill level displayed as a percentage
- Code-protected system settings prevent accidental changes
GLP-Compliant Documentation
- Optional printer connection via RS-232 port for traceable data recording
- Cell constant of 0.01 cm⁻¹ for accurate conductivity measurement
- Temperature compensation accuracy of ±0.1°C, compliant with USP 645
Flexible Installation and Dispensing
- Space-saving design for benchtop installation or wall mounting
- Integrated wall mounting bracket included
- Optional hand dispenser with 3-meter cord available for greater dispensing flexibility
- Hand dispenser compatible only with tanks equipped with a pressure pump
- Ships with a 0.2 µm final filter (Part No. 50138221) when using optional hand dispenser setup
Applications
The Barnstead™ Pacific TII system is suitable for:
- Preparation of laboratory reagents and buffers
- Feeding ultrapure water systems
- General analytical laboratory work
- Microbiological media preparation
- Glassware rinsing
- Clinical and research laboratory workflows
- Routine water purification for academic, pharmaceutical, and industrial labs
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Water Purification System |
| Product Water Type | Type 2 |
| Feedwater Source | Tap Water |
| Daily Output | 20 to 200 L |
| Permeate Performance | 12 L/hr at 10°C |
| Conductivity | 0.1 to 1.0 µS/cm |
| Resistivity | 10 to 1 MΩ·cm at 25°C |
| Total Organic Carbon (TOC) | <30 ppb |
| Bacterial Retention | 99% |
| Bacterial Content | 99% |
| Particles >0.2 µm | <1/mL |
| Feedwater Pressure | 1 to 6 bar |
| Operating Pressure | 2 to 6 bar |
| Feedwater Connector | 3/4 in. NPT |
| Electrical Requirements | 90/240 V, 50/60 Hz |
| Voltage | 90/240 V |
| Frequency | 50/60 Hz |
| Temperature Range | 2°C to 35°C |
| Feed Water Monitoring | No |
| Warranty | 1 year, parts and labor |
| Unit Size | Each |
Available Models and Ordering Information
| Catalog Number | Description |
|---|---|
| 50132131 | Pacific TII 7 (UV) |
| 50131982 | Pacific TII 20 (UV) |
| 50132123 | Pacific TII 7 |
| 50132124 | Pacific TII 12 |
| 50132125 | Pacific TII 20 |
| 50132132 | Pacific TII 12 (UV) |
Optional Accessories
| Accessory | Details |
|---|---|
| Hand Dispenser | 3-meter cord dispenser for flexible water dispensing |
| Final Filter | 0.2 µm final filter, Part No. 50138221 |
| Compatible Tanks | Pressure pump tanks: 06.5032, 06.5062, 06.5082 |
| Optional Printer | RS-232 compatible printer for documentation and traceability |
Unique Advantages
- Produces reliable Type 2 pure water from standard tap water
- Cost-efficient alternative for routine laboratory purified water production
- Flexible selection of UV and non-UV models
- Compact footprint for laboratories with limited bench space
- Automatic recirculation improves system readiness and operational stability
- GLP-friendly documentation features support regulated laboratory environments
- Upgradeable platform allows laboratories to scale as demand increases
The Thermo Scientific™ Barnstead™ Pacific TII Water Purification System is a dependable and scalable water purification solution for laboratories requiring consistent Type 2 pure water from tap water. With advanced reverse osmosis performance, intelligent microprocessor control, optional UV protection, and convenient installation flexibility, the Pacific TII system is an excellent choice for laboratories focused on efficiency, quality, and long-term operational value.
- Model: Pacific TII 7 (UV), 7L/Hr Pacific TII 7, 7L/Hr Pacific TII 20 (UV), 20 L/Hr Pacific TII 20, 20 L/Hr Pacific TII 12 (UV), 12 L/Hr Pacific TII 12, 12 L/Hr
