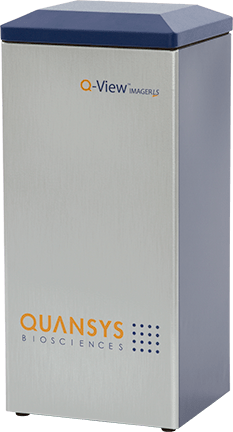

Q-View™ Imager LS

The Q-View Imager LS is a high-quality, robust, and cost-effective chemiluminescent imaging system designed for SBS-format microplates. Engineered to support both 96-well and 384-well plate-based assays, the Imager LS delivers reliable, high-resolution imaging performance with a compact benchtop footprint and minimal maintenance requirements.

This instrument is optimized for use with Q-Plex™ multiplex ELISA platforms and other chemiluminescent applications, providing fast data acquisition with a typical 5-minute read time.

Product Overview

The Q-View Imager LS integrates advanced CMOS sensor technology with optimized optics to ensure accurate signal capture while minimizing vignetting effects. Its compact design makes it suitable for research laboratories, academic institutions, biotechnology companies, and global health programs requiring dependable chemiluminescent imaging without the complexity or cost of high-end imaging systems.

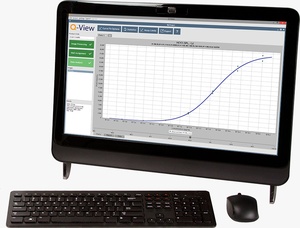

The imager operates exclusively with Q-View Software, a powerful and user-friendly image analysis platform that enables users to capture, visualize, and quantitatively analyze chemiluminescent signals.

Key Features

• Approximately 5-minute plate read time
• Compact benchtop design
• Durable, low-maintenance construction
• CMOS sensor-based image acquisition
• Optimized optics to reduce vignetting
• Supports chemiluminescent SBS plate formats
• Capable of imaging blots up to 3 × 4.75 inches (7.6 × 12.1 cm)

Imager Specifications

• Resolution: 24.1 Megapixel
• Sensor Type: CMOS
• Control Software: Q-View Software
• Power Supply: 120–240V AC, 50/60Hz, 150W
• Optics: Designed to minimize vignetting
• Image Applications: Chemiluminescent SBS plate format; blots up to 3 × 4.75 in (7.6 × 12.1 cm)
• PC Connection: USB 2.0 (Type A) or greater (USB-C not supported)
• Dimensions (W × D × H): 8 × 10 × 22 in (20.32 × 25.4 × 55.88 cm)

Computer Requirements

• Operating System: Windows 11 or Windows 10
• Processor: 4 or more cores
• RAM: Minimum 8 GB
• Display Resolution: 1280 × 800 or higher
• Connection: USB 2.0 (Type A) or greater (USB-C not supported)

Applications

• Multiplex ELISA analysis
• Chemiluminescent immunoassays
• Biomarker profiling
• Plate-based quantitative imaging
• Small-format blot imaging

The Q-View Imager LS offers a balance of affordability and performance, making it particularly suitable for laboratories implementing Q-Plex™ multiplex assays. Its rapid read time, high-resolution CMOS sensor, and simple USB connectivity streamline workflow integration while minimizing operational complexity.

The system provides dependable chemiluminescent detection in a compact footprint, making it an ideal solution for laboratories requiring robust performance without large instrumentation overhead.
