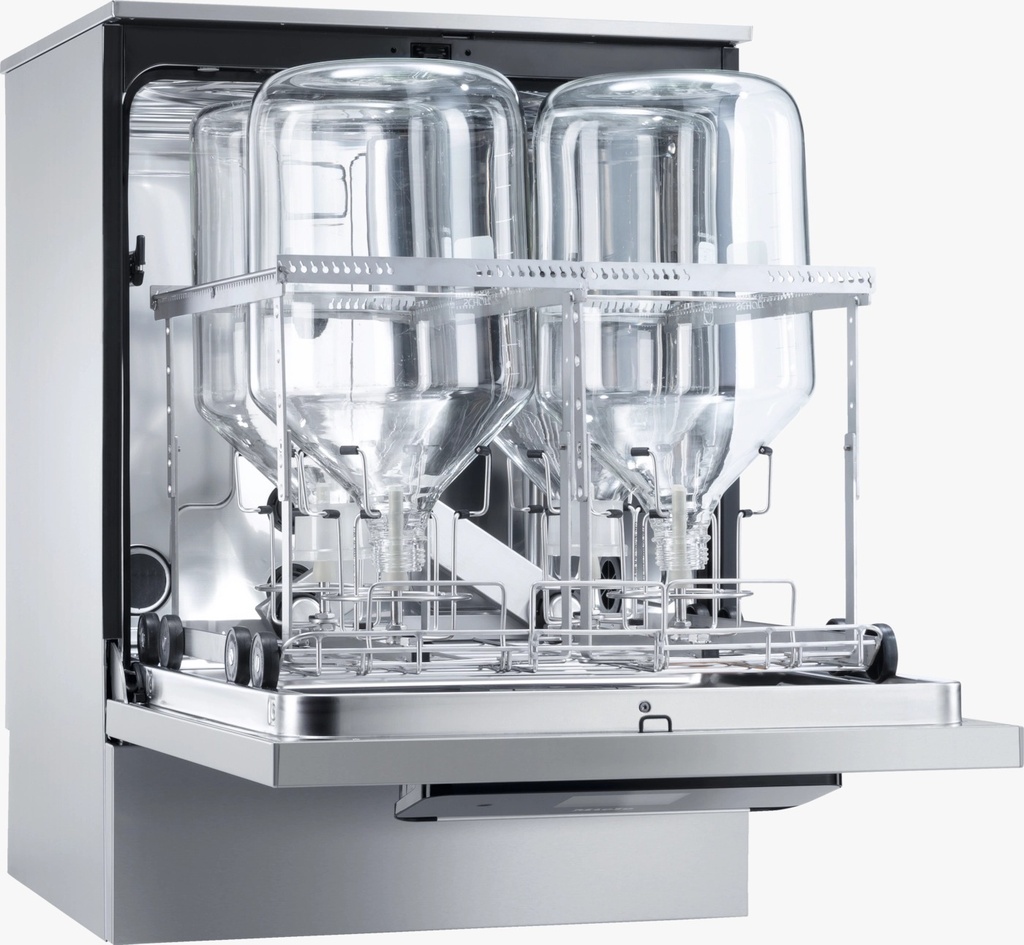

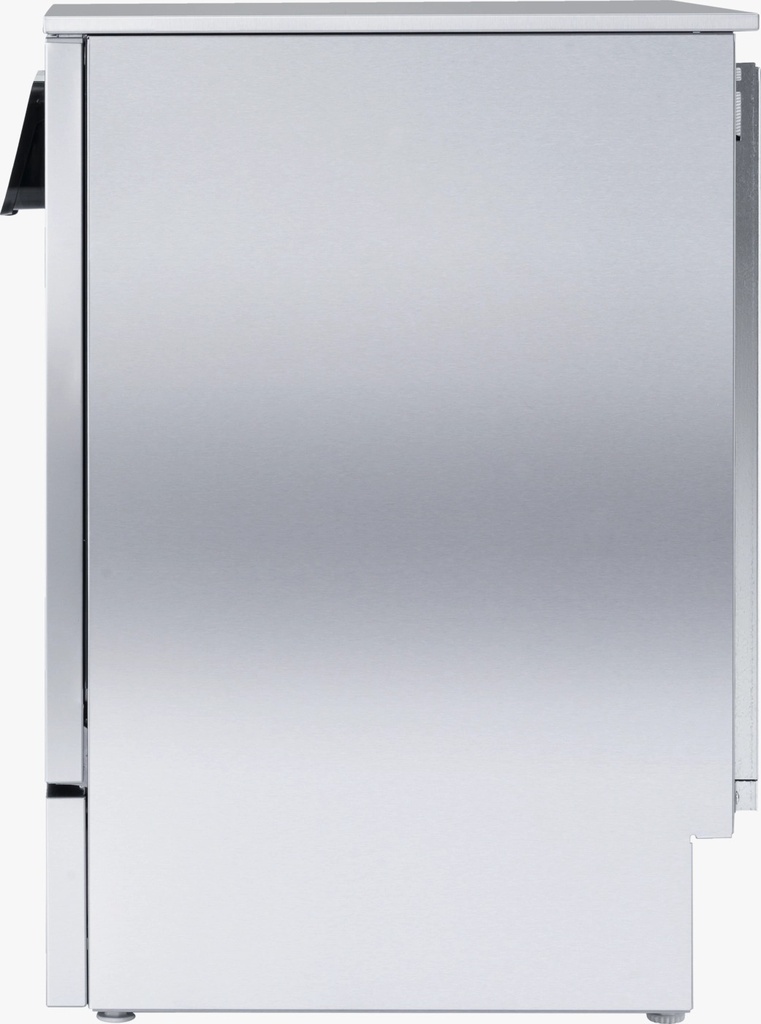

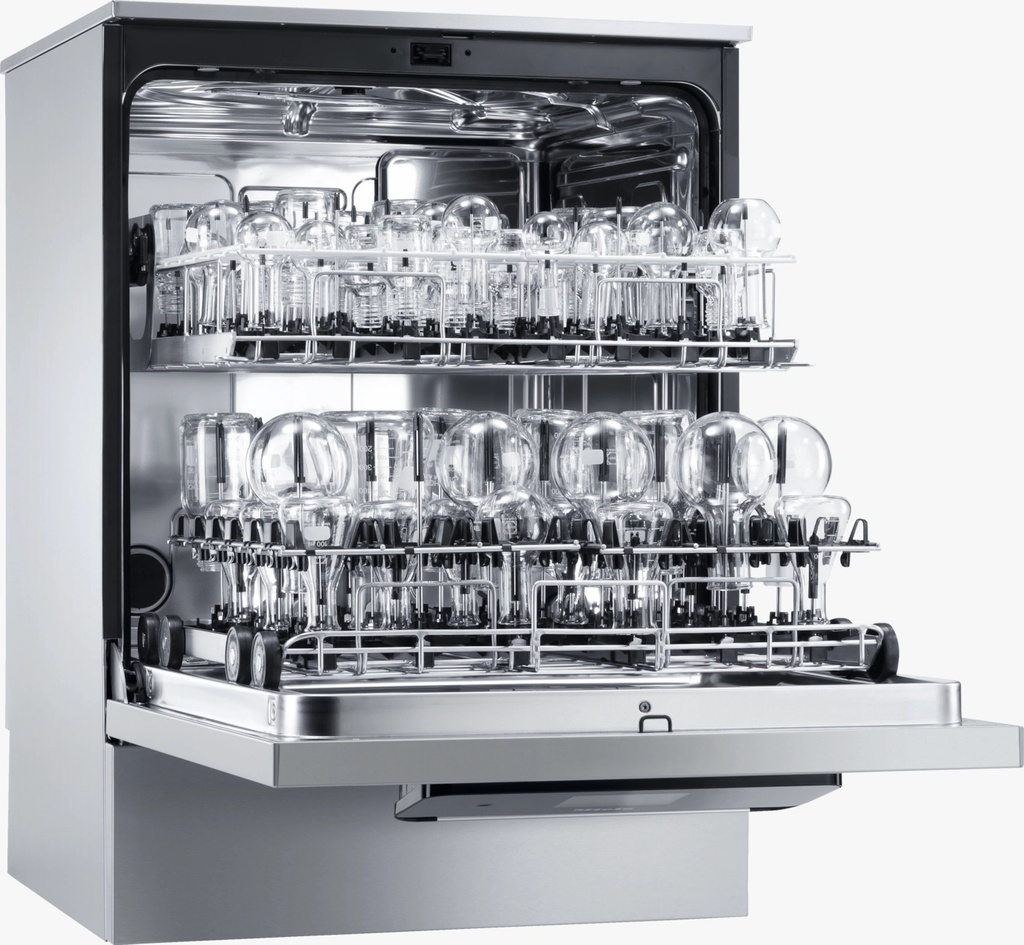

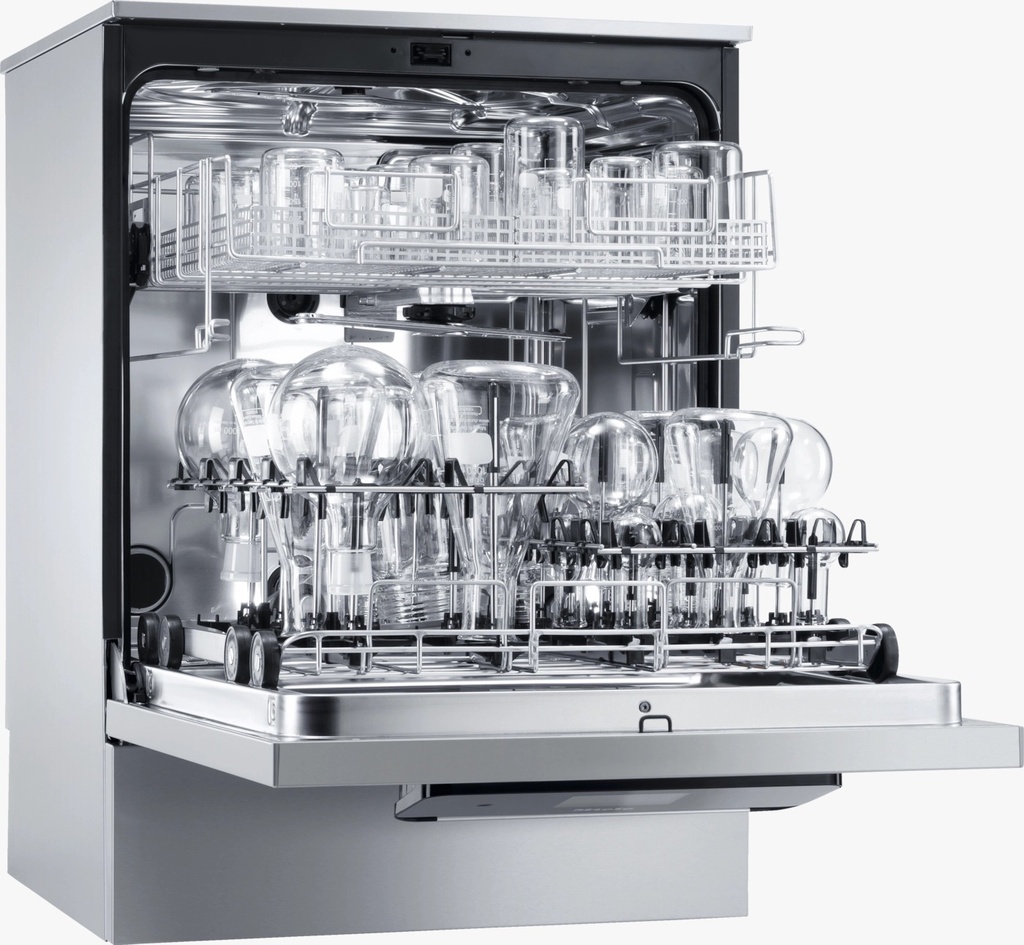

Miele Professional™ ExpertLine™ Laboratory Washer PLW 86
Catalog No :
CAS Number :
Brand :
In Stock
Electrical requirement: 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz
Specifications:
| Application | Routine Laboratory Applications | Warranty | 1 Year |
| Material | Stainless steel | ||
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment, Laboraotry Dish Washers | ||
| Product Brand | Miele | ||
| Product Grade | Analytical grade | ||
Miele Professional™ ExpertLine™ Laboratory Washers are high-performance laboratory glassware washers designed for reliable, reproducible, and hygienic reprocessing of laboratory glassware, bottles, pipettes, test tubes, vials, and other lab items. The PLW 8683 series is supplied without active drying, while the PLW 8693 series includes drying support for laboratories requiring enhanced drying performance.
These 60 cm laboratory washers combine a compact footprint with high throughput, modular loading flexibility, DI water connectivity, liquid dispensing, process safety features, and intuitive operation through the M Touch Flex full-touch color display. They are ideal for laboratories requiring consistent cleaning results, efficient resource use, and flexible reprocessing workflows.
Key Features
| Feature | Details |
|---|---|
| High Throughput | Processes up to 128 laboratory bottles per cycle, depending on load configuration |
| Modular Loading | Compatible with modular load carriers and the SimpleLoad system |
| DI Water Connection | Supports final rinsing with deionized water |
| Liquid Dispensing | Integrated dispensing for liquid cleaning agent and neutralizing agent |
| EcoDry Function | Door opens automatically at the end of the program for convenient drying support |
| M Touch Flex Display | Full-touch color display for simple and intuitive operation |
| Wi-Fi Connectivity | Standard connectivity for workflow support and digital integration |
| Variable-Speed Heater Pump | Supports efficient use of water, energy, and cleaning chemistry |
| Spray Arm Pressure Monitoring | Monitors wash pressure for reliable cleaning performance |
| Crevice-Free Wash Cabinet | Seamlessly welded stainless steel cabinet supports hygiene and cleanability |
| AutoClose Door Lock | Automatic door lock for user convenience and safety |
Applications
Miele Professional™ ExpertLine™ Laboratory Washers are suitable for:
- Laboratory glassware washing
- Reprocessing of narrow-neck glassware
- Washing laboratory bottles and flasks
- Cleaning test tubes, vials, and pipettes
- Research and academic laboratories
- Pharmaceutical and biotechnology laboratories
- Quality control laboratories
- Clinical and analytical laboratories
- Microbiology and chemistry laboratories
- Laboratories requiring reproducible cleaning and DI water rinsing
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Laboratory washer |
| Product Line | Miele Professional™ ExpertLine™ |
| Construction Type | Freestanding, built-under capable, slim |
| Outer Casing | Stainless steel |
| Control System | M Touch Flex |
| Display | Full-touch color display |
| Glass Door | Yes |
| Number of Wash Levels | 2 |
| Programs | 19 |
| Free Program Slots | 10 |
| Delay Start | Up to 24 hours |
| Wash Cabinet Material | High-quality stainless steel 1.4301 / 304 |
| Wash Cabinet Construction | Seamlessly welded using laser technology |
| Circulation Pump Capacity | 500 L/min |
| Maximum Final Rinse Temperature | 93 °C |
| Usable Wash Cabinet Volume | 145 L |
| Tested Operating Hours | 15,000 hours |
| Sound Pressure Level | ≤70 dB(A) |
| Water Protection System | Waterproof system |
| Connectivity | Wi-Fi as standard; Ethernet optional |
| Safety Class | IP21 |
| Standards | EN 61010-1, EN 61010-2-040, Machinery Directive 2006/42/EC |
Capacity per Cycle
| Load Type | Capacity |
|---|---|
| Narrow-Neck Glassware | 64 pieces |
| Test Tubes | 196 pieces |
| Vials | 196 pieces |
| Laboratory Flasks | 128 pieces |
| Pipettes | 98 pieces |
Electrical and Utility Requirements
| Parameter | Details |
|---|---|
| Standard Electrical Connection | 3 AC 208 V, 60 Hz |
| Electric Heater Rating | 5.4 kW |
| Total Rated Load | 6.2 kW |
| Fuse Rating | 20 A |
| Power Cord Length | 1.9 m |
| Optional Voltage Variant | 2 AC 208 V, 60 Hz, 30 A |
| Cold Water Connection | 1 |
| Hot Water Connection | 1 |
| DI Water Connection | 1 |
| Required Flow Pressure | 200–1000 kPa |
| Maximum Drain Pump Delivery Head | 100 cm |
| Integrated Water Softener | Yes |
Dimensions and Weight
| Parameter | Details |
|---|---|
| Net Height | 820 mm |
| Net Width | 598 mm |
| Net Depth | 598 mm |
| Gross Height | 920 mm |
| Gross Width | 670 mm |
| Gross Depth | 740 mm |
| Usable Wash Cabinet Height | 520 mm |
| Usable Wash Cabinet Width | 530 mm |
| Upper Basket Depth | 474 mm |
| Lower Basket Depth | 520 mm |
| Net Weight | 78 kg |
| Gross Weight | 87 kg |
Programs
| Available Programs |
|---|
| Extra Short |
| Standard |
| Universal |
| Intensive |
| Inorganica |
| Organica |
| Agar |
| Injector Plus |
| Pipettes |
| Plastics |
| Oil |
| Hygiene 93/10 |
| Pasteurizing |
| Cold Water Rinse |
| DI Water Rinse |
Key Built-In Features
| Feature | Details |
|---|---|
| Liquid Cleaning Agent Pump | 1 dispenser pump included |
| Neutralizing Agent Pump | 1 dispenser pump included |
| DS5 Flex Suction Lance | Included depending on configuration |
| Steam Condenser | Included |
| Spray Pressure Monitoring | Included |
| Chamber Lighting | Included |
| Multi-Component Filter System | Included |
| Variable-Speed Heating Pump | Included |
| Load Carrier Direct Coupling | Included |
| AutoOpen | Included |
| Salt Container | Located in base of chamber |
| Optical Service Interface | Included |
| SimpleLoad System | Included |
| External Dispenser Modules | Supported |
| Process Documentation Interface | Optional |
Ordering Information
| Category | Article Number | Model / Configuration | Product Type | Electrical Connection |
|---|---|---|---|---|
| Lab washers 60 cm without drying | 12798940 | PLW 8683 [LD DS5] SST | Laboratory washer | 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz |
| Lab washers 60 cm without drying | 12799100 | PLW 8683 [LD DS5 OIL] SST | Laboratory washer | 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz |
| Lab washers 60 cm without drying | 12799190 | PLW 8683 [LD DS5 GD MON] SST | Laboratory washer | 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz |
| Lab washers 60 cm with drying | 12800690 | PLW 8693 [DS5] SST | Laboratory washer | 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz |
| Lab washers 60 cm with drying | 12800790 | PLW 8693 [DS5 MON OIL] SST | Laboratory washer | 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz |
| Lab washers 60 cm with drying | 12800740 | PLW 8693 [DS5 CM MON] SST | Laboratory washer | 3N AC 400 V 50 Hz / 1N AC 230 V 50 Hz |
Example Product Detail
| Detail | Value |
|---|---|
| Model | PLW 8683 [U GD LD DS5 3/208V] |
| EAN | 4002516884378 |
| Article Number | 62868384NAM |
| Material Number | 12799340 |
| Line | ExpertLine |
| Product Type | Laboratory washer |
| Door Type | Glass door |
| Application | Suitable for laboratories |
Storage, Installation & Handling
Install the washer in a suitable laboratory utility area with access to the required power, cold water, hot water, DI water, and drainage connections. Ensure installation is performed according to local electrical and plumbing requirements. Use compatible Miele load carriers, baskets, inserts, and approved cleaning chemistries for the intended laboratory glassware and application.
The Miele Professional™ ExpertLine™ PLW 8683 / PLW 8693 laboratory washer series delivers reliable glassware reprocessing in a compact 60 cm format. With DI water connection, liquid dispensing, modular loading, M Touch Flex control, EcoDry or drying configurations, spray pressure monitoring, Wi-Fi connectivity, and a seamlessly welded stainless steel wash cabinet, it is well suited for laboratories requiring consistent, efficient, and traceable cleaning performance.
- Drying: With Integrated EcoDry function No Drying
- Model: PLW 8683 [LD DS5] SST PLW 8683 [LD DS5 OIL] SST PLW 8683 [LD DS5 GD MON] SST PLW 8693 [DS5] SST PLW 8693 [DS5 MON OIL] SST PLW 8693 [DS5 CM MON] SST
