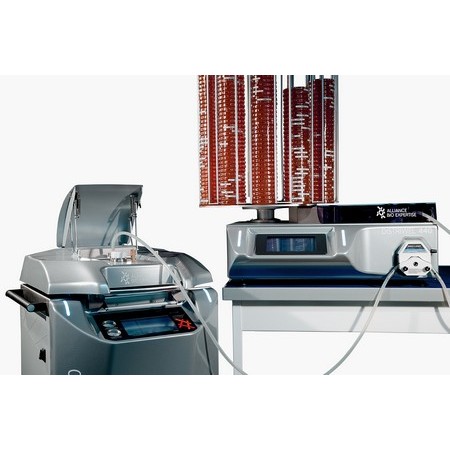

ABE MEDIAWEL 50 Automated Media Preparator, 50 L, 400 V
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Microbiology, sterilization | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Alliance Bio Expertise | ||
| Product Grade | Microbiology grade | ||
MEDIAWEL 50 is a high-capacity automated media preparator designed for rapid, accurate, and reproducible preparation of culture media, agar media, and broths in volumes from 5 to 50 liters. It is ideal for laboratories with high-volume media preparation requirements and supports reliable sterilization, homogenization, dispensing, traceability, and safety in demanding microbiology workflows.
With its 7″ glove-friendly LCD touchscreen, high-performance magnetic stirring system, programmable cycles, USB data export, and optional WiFi/Ethernet real-time monitoring through Labpage®, MEDIAWEL 50 helps laboratories improve productivity, reduce manual handling, and maintain consistent media quality for routine and large-scale operations.
Key Features
| Feature | Details |
|---|---|
| High-Capacity Media Preparation | Prepares culture media volumes from 5 to 50 L |
| Automated Workflow | Supports sterilization, homogenization, cooling, and dispensing workflows |
| Intuitive Touchscreen | 7″ tactile color LCD touchscreen, glove friendly |
| Program Memory | Stores up to 150 programs |
| Excellent Homogeneity | Continuous homogenization with large magnetic stirring blades |
| High Temperature Accuracy | ±0.5 °C temperature accuracy |
| Complete Traceability | Integrated eTRACE® module with USB export in PDF/CSV format |
| Optional Real-Time Monitoring | Labpage® dashboard via WiFi/Ethernet with SD card storage up to 10,000 cycles |
| CFR21 Part 11 Support | User management, password protection, audit trail, data integrity, and automatic operator logout |
| Safe Operation | Lid locks automatically above 80 °C |
| Pressure Safety | 1.7 bar safety pressure release valve |
| Easy Cleaning | Bottom drainage and cleaning evacuation system |
| Mobile Design | Stable and easy to move with four large medical wheels |
| Robust Construction | Antishock ABS PC plastic body with stainless steel AISI 316L vessel |
Key Benefits
Perfect Homogeneity for Culture Media
MEDIAWEL 50 is designed for the production of high-quality culture media, broths, and agar media in large volumes. Its high-performance stirring system ensures optimal agitation across the tank, helping maintain uniform temperature and consistency with variation below 0.5 °C across the full volume.
Simplified Preparation
The MEDIAWEL 50 simplifies media preparation with an intuitive touchscreen interface and ergonomic accessories. Optional accessories such as a dust cover and automatic dispenser can help limit powder dispersion and speed up tank filling.
Complete Cycle Traceability
The integrated eTRACE® module allows production data to be exported via USB in PDF or CSV format. Optional WiFi/Ethernet connectivity enables real-time monitoring through the Labpage® dashboard, accessible from a computer, tablet, or smartphone.
Compliance-Oriented Data Management
MEDIAWEL 50 supports CFR21 Part 11 functions, including user management with password, audit trail, non-erasable and non-editable data integrity, and automatic operator logout, supporting quality control and audit readiness.
Intuitive Operation
The 7″ glove-friendly touchscreen makes operation simple for daily laboratory use. Audio and multicolored visual alarms provide clear status and alert notifications.
Easy Cleaning and Maintenance
The integrated bottom drainage and cleaning evacuation system simplifies cleaning by allowing direct connection to a drain. Smooth internal surfaces help reduce residue buildup and support routine contamination control.
Work with Confidence
MEDIAWEL 50 includes several safety features, including automatic lid locking above 80 °C, pressure regulation through a safety valve, and continuous alarm monitoring. The device is designed for reliable operation in high-volume laboratory settings.
Applications
MEDIAWEL 50 is suitable for:
- High-volume automated culture media preparation
- Agar and broth media preparation
- Microbiology laboratory workflows
- Pharmaceutical microbiology and quality control laboratories
- Food, water, and environmental microbiology laboratories
- Research and academic microbiology laboratories
- Large batch media sterilization and homogenization
- Media preparation for downstream dispensing and Petri dish filling workflows
- Laboratories requiring traceability, reproducibility, and audit-ready documentation
Technical Data Sheet
| Parameter | Specification |
|---|---|
| Product Name | MEDIAWEL 50 Automated Media Preparator |
| Reference | MEDW1050 |
| Capacity | 5 to 50 L |
| Sterilization Temperature | 16 to 125 °C |
| Sterilization Time | 1 to 99 minutes |
| Distribution Temperature | 16 to 80 °C |
| Temperature Accuracy | ±0.5 °C |
| Remaining Volume | <100 mL |
| Addition Cap | Included, with possibility to use septum |
| Traceability | eTRACE® module integrated; USB data export in PDF/CSV |
| Optional WiFi/Ethernet Traceability | Labpage® dashboard; real-time data monitoring; SD card storage up to 10,000 cycles |
| CFR21 Part 11 | User management with password, audit trail, data integrity, non-erasable/non-editable data, automatic operator logout |
| Temperature Probe | 3 probes: 1 standard, 1 optional, and 1 for calibration |
| Safety Pressure Release | 1.7 bar safety valve |
| Dispensing Port | Adapters for 6.4 mm and 12 mm tubes; 8 mm and 17 mm available as options |
| Continuous Homogenization | Yes |
| Touchscreen | Tactile, glove-friendly 7″ LCD |
| Alarm | Audio and multicolored visual alarm |
| Cleaning | Bottom drainage / cleaning evacuation |
| Mobility | Stable and easy to move with 4 large medical wheels |
| Robustness | Antishock body, ABS PC plastic |
| Vessel | Stainless steel AISI 316L |
| Programs | 150 |
| Weight | 178 kg |
| Dimensions | 585 x 735 x 1073 mm, L x W x H |
| Power Supply, MEDW1050 | 400 V ±10%, three-phase, 31 A max per phase, 50/60 Hz, 18700 W ±10% |
| Power Supply, MEDW1051 | 208 V ±10%, three-phase, 46 A max per phase, 50/60 Hz, 14500 W ±10% |
| Country of Origin | France, European Union |
| Warranty | 1 year |
Supplied Accessories
| Included Item | Reference / Details |
|---|---|
| MEDIAWEL Unit | Automated media preparator |
| USB Key | Includes user manual and quality report |
| Large Magnetic Stirrer | MEDW2008 |
| Sampling Tube | MEDW3201 / MEDW4201 |
| Draining Plug | MEDW2028 |
| Sampling Nozzle Seals | MEDW4011, set of 2 |
| Sampling Nozzles | MEDW2003, Ø12 mm and MEDW2004, Ø6.4 mm |
| Inlet and Outlet Water Tubing | 4 m tubing with 4 tubing clamps, MEDW4012 |
| Decompression Filters | MEDW3014, 3 pieces |
| BactiStopper | Calibrated sterile carded cotton, pack of 50, MEDW3003 |
| Sliding Washer Stirrer Axis | MEDW4003, 2 pieces |
| Labpage® Real-Time Data Monitoring License | 3 months free access |
Ideal Users
| User Type | Benefit |
|---|---|
| High-Throughput Microbiology Labs | Efficient preparation of large media volumes up to 50 L |
| Pharmaceutical QC Laboratories | Traceable, reproducible, and documented media preparation |
| Food and Environmental Testing Labs | Consistent media quality for routine microbial testing |
| Research Institutions | Reliable media preparation for large-scale microbiology workflows |
| Industrial Microbiology Labs | High-capacity batch preparation with safety and traceability |
The MEDIAWEL 50 is positioned as a high-capacity automated media preparator for laboratories that require larger batch preparation than typical 10 L or 30 L systems. Its key strengths include 5–50 L capacity, 150 programmable cycles, integrated eTRACE® USB data export, optional Labpage® real-time monitoring, CFR21 Part 11 support, stainless steel AISI 316L vessel, bottom drainage, and mobile design with four medical wheels.
