Haier Biomedical Mini Biological Safety Cabinet, 600mm wide
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Microbiology, molecular biology | Warranty | 1 Year |
| Material | Stainless steel | ||
| Storage Temperature | Room Temperature | ||
| Product Type | Biological Cabinets & Clean Benches | ||
| Product Brand | Haier Biomedical | ||
| Product Grade | Analytical grade | ||

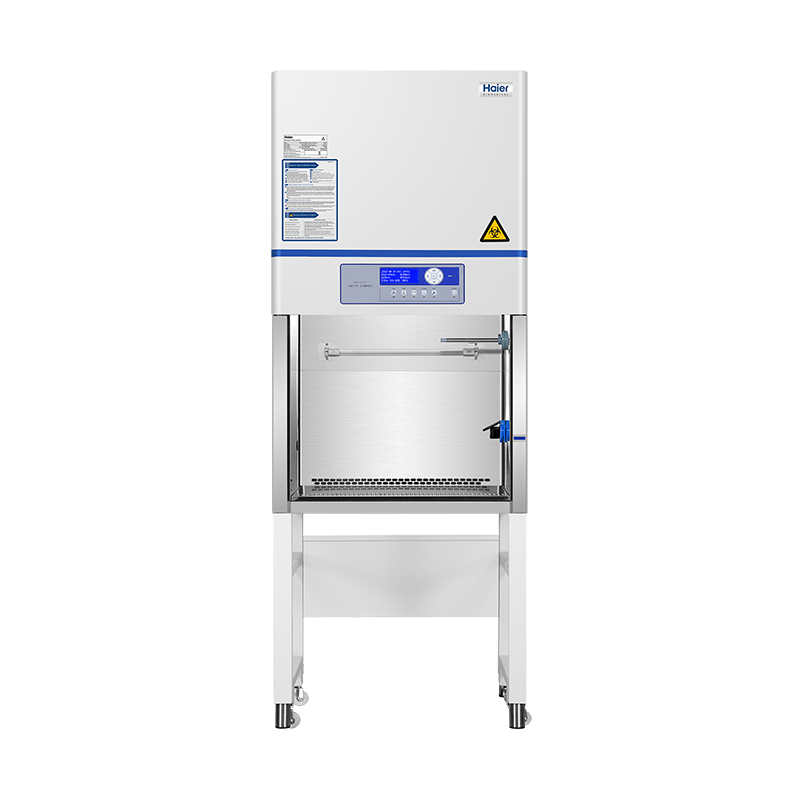

The Haier Biomedical HR700-IIA2 Mini Biological Safety Cabinet is a compact, high-performance air purification system designed for small-scale laboratory operations and confined test environments.
Engineered for single-user applications, it provides Class II A2-level protection for personnel, products, and the environment in compliance with EU standard EN12469.
Ideal for use in virus sampling warehouses, mobile laboratories, airports, railway sampling stations, and on-board facilities, this cabinet ensures safe and sterile handling of biological materials wherever laboratory space is limited.
Key Features
1. Safe and Reliable Protection
- Equipped with AAF high-efficiency filters providing Class 1 cleanliness for maximum contamination control.
- Ensures simultaneous protection for operator, sample, and environment.
- Advanced air circulation design achieves 70% downflow and 30% exhaust balance for consistent containment.
2. Intelligent LCD Display
- Integrated LCD screen displays real-time operating parameters, airflow status, and component service life.
- Provides clear visibility of the system’s operational condition at a glance.
3. One-Click UV Sterilization Control
- UV lamp timer function allows automatic scheduling between 0 to 24 hours, enabling users to preset sterilization intervals.
- Reduces manual waiting time and supports routine disinfection cycles.
4. Integrated Waterproof Power Sockets
- Includes two waterproof sockets with programmable timing functions.
- Supports safe and reliable connection of auxiliary instruments within the workspace.
5. Safety Interlocking System
- Interlocking between UV lamp, fluorescent lamp, front sash, and fan prevents accidental exposure or operation conflicts.
- Automatically disables incompatible functions for operator safety.
6. Audible and Visual Alarms
- Intelligent alarm system alerts users to hardware malfunctions, airflow deviations, and filter or UV lamp life end.
- Ensures real-time safety feedback and maintenance readiness.
7. Uniform, Low-Noise Airflow
- Incorporates a high-quality EBM fan and precision air distribution system.
- Provides uniform airflow and reduced noise, maintaining a stable, low-turbulence work zone.
- AAF HEPA filter delivers high filtration efficiency, low resistance, and consistent performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HR700-IIA2 |
| Power Supply | 220–240 V / 50 Hz |
| Airflow Circulation | 70% Downflow, 30% Exhaust |
| Inflow Velocity | 0.53 m/s |
| Lighting Intensity | ≥780 Lux |
| Internal Dimensions (W × D × H) | 600 × 550 × 540 mm |
| External Dimensions (W × D × H) | 700 × 720 × 1200 mm |
| Filter Type | AAF High-Efficiency HEPA Filter |
| Noise Level | Low noise, uniform airflow design |
| Standard Compliance | EN12469 (European Standard for Microbiological Safety Cabinets) |
Applications
- Virus sampling and analysis in clinical or field laboratories
- Mobile and on-board laboratories for emergency testing
- Airport and railway sampling stations
- Hospitals and public health units for infection control testing
- Universities and research institutions with limited laboratory space
Unique Advantages
- Compact 600 mm-wide design ideal for small spaces or mobile labs
- WHO- and EU-compliant protection and airflow performance
- Automatic UV disinfection scheduling with one-click control
- Real-time LCD monitoring for system parameters and alerts
- Interlocking safety mechanism ensures operator and sample protection
- Low noise and high efficiency through optimized air circulation
The Haier Biomedical HR700-IIA2 Mini Biological Safety Cabinet combines portability, advanced air purification, and intelligent safety controls in a compact 600 mm-wide enclosure.
Its HEPA filtration, one-click UV sterilization, and real-time monitoring deliver consistent and compliant biological protection in confined or mobile settings — making it the ideal choice for field laboratories, clinical sampling units, and compact research facilities.
