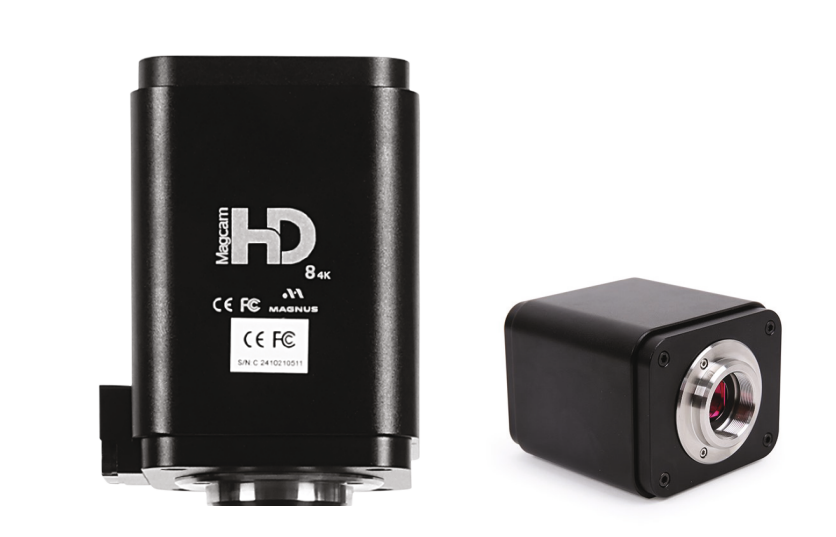

The Magnus MagCam HD 8 4K2 HDMI Camera is an advanced high-resolution digital microscope imaging solution designed for biological microscopes and stereomicroscopes. Equipped with a Sony STARVIS 2 back-illuminated CMOS sensor, this camera delivers ultra-clear 4K UHD imaging (3840 × 2160) with smooth real-time video performance.
With HDMI output for direct monitor display, USB 3.0 connectivity for PC-based imaging, and built-in measurement software, the MagCam HD 8 4K2 is ideal for digital teaching, laboratory documentation, pathology workflows, and research applications.
Key Features
- High-definition 4K HDMI microscope camera for live imaging and teaching
- High-resolution 8.0MP Sony STARVIS 2 back-illuminated CMOS sensor
- Suitable for biological microscopes and stereomicroscopes
- Smooth video output up to 60 fps at 4K resolution
- Standard C-mount optical interface for broad compatibility
- Includes 0.5× C-mount adapter for wider field imaging
- USB 3.0 interface for fast data transfer and PC imaging
- Built-in software for measurement, calibration, and image enhancement
- Durable aluminum alloy housing for laboratory use
Camera Specifications
| Parameter | Specification |
|---|---|
| Camera Model | MagCam HD 8 4K2 HDMI |
| Camera Type | HDMI CMOS Digital Microscope Camera |
| Sensor Type | Sony STARVIS 2 Back-Illuminated CMOS |
| Sensor Size | 1/1.8″ |
| Resolution | 3840 × 2160 (4K UHD) |
| Megapixels | 8.0 MP |
| Frame Rate | 60 fps @ 3840 × 2160 |
| Pixel Size | 2.0 µm × 2.0 µm |
| Binning | 1×1 |
| Optical Interface | C-Mount |
| Adapter Included | 0.5× C-Mount Adapter |
| Data Interface | USB 3.0 |
| Imaging Functions | Gain, Gamma, Contrast, Auto White Balance, Auto Exposure |
| Software Support | Built-in measurement & calibration tools (MagVision compatible) |
| Housing Material | Aluminum alloy |
| Operating Temperature | +10°C to +50°C |
Software & Imaging Tools
The camera includes inbuilt imaging software supporting:
- Point-to-point measurement
- Calibration and micrometry
- Auto white balance
- Auto exposure control
- Image adjustments: Gain, Gamma, Contrast
- Suitable for teaching, documentation, and quantitative imaging
Packing Contents
Standard package includes:
- MagCam HD 8 4K2 HDMI camera
- 0.5× C-mount adapter
- USB 3.0 cable
- Calibration slide
System Requirements
For PC-based operation:
- CPU: Core 2 / i3 / i5 / i7
- Minimum RAM: 2 GB
- Requires: Computer/laptop with USB port + MagVision software
- Compatible microscope interface: C-mount or eyepiece mount
Operating Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature | +10°C to +50°C |
Applications
The MagCam HD 8 4K2 HDMI is ideal for:
- Digital classroom microscopy and live teaching demonstrations
- High-resolution imaging for biological research laboratories
- Pathology and histology documentation
- Stereo microscope inspection and observation workflows
- Real-time specimen display on HDMI monitors
- Laboratory imaging and reporting applications
The Magnus MagCam HD 8 4K2 HDMI Digital Microscope Camera combines advanced Sony STARVIS 2 sensor technology with ultra-smooth 4K imaging performance for modern microscopy teaching and documentation. With HDMI monitor connectivity, USB 3.0 speed, built-in measurement tools, and standard C-mount compatibility, it is an excellent choice for laboratories and institutions requiring reliable, high-resolution digital microscopy imaging.
Datasheet
The Magnus MagCam HD 8 4K2 HDMI Camera is an advanced high-resolution digital microscope imaging solution designed for biological microscopes and stereomicroscopes. Equipped with a Sony STARVIS 2 back-illuminated CMOS sensor, this camera delivers ultra-clear 4K UHD imaging (3840 × 2160) with smooth real-time video performance.
With HDMI output for direct monitor display, USB 3.0 connectivity for PC-based imaging, and built-in measurement software, the MagCam HD 8 4K2 is ideal for digital teaching, laboratory documentation, pathology workflows, and research applications.
Key Features
- High-definition 4K HDMI microscope camera for live imaging and teaching
- High-resolution 8.0MP Sony STARVIS 2 back-illuminated CMOS sensor
- Suitable for biological microscopes and stereomicroscopes
- Smooth video output up to 60 fps at 4K resolution
- Standard C-mount optical interface for broad compatibility
- Includes 0.5× C-mount adapter for wider field imaging
- USB 3.0 interface for fast data transfer and PC imaging
- Built-in software for measurement, calibration, and image enhancement
- Durable aluminum alloy housing for laboratory use
Camera Specifications
| Parameter | Specification |
|---|---|
| Camera Model | MagCam HD 8 4K2 HDMI |
| Camera Type | HDMI CMOS Digital Microscope Camera |
| Sensor Type | Sony STARVIS 2 Back-Illuminated CMOS |
| Sensor Size | 1/1.8″ |
| Resolution | 3840 × 2160 (4K UHD) |
| Megapixels | 8.0 MP |
| Frame Rate | 60 fps @ 3840 × 2160 |
| Pixel Size | 2.0 µm × 2.0 µm |
| Binning | 1×1 |
| Optical Interface | C-Mount |
| Adapter Included | 0.5× C-Mount Adapter |
| Data Interface | USB 3.0 |
| Imaging Functions | Gain, Gamma, Contrast, Auto White Balance, Auto Exposure |
| Software Support | Built-in measurement & calibration tools (MagVision compatible) |
| Housing Material | Aluminum alloy |
| Operating Temperature | +10°C to +50°C |
Software & Imaging Tools
The camera includes inbuilt imaging software supporting:
- Point-to-point measurement
- Calibration and micrometry
- Auto white balance
- Auto exposure control
- Image adjustments: Gain, Gamma, Contrast
- Suitable for teaching, documentation, and quantitative imaging
Packing Contents
Standard package includes:
- MagCam HD 8 4K2 HDMI camera
- 0.5× C-mount adapter
- USB 3.0 cable
- Calibration slide
System Requirements
For PC-based operation:
- CPU: Core 2 / i3 / i5 / i7
- Minimum RAM: 2 GB
- Requires: Computer/laptop with USB port + MagVision software
- Compatible microscope interface: C-mount or eyepiece mount
Operating Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature | +10°C to +50°C |
Applications
The MagCam HD 8 4K2 HDMI is ideal for:
- Digital classroom microscopy and live teaching demonstrations
- High-resolution imaging for biological research laboratories
- Pathology and histology documentation
- Stereo microscope inspection and observation workflows
- Real-time specimen display on HDMI monitors
- Laboratory imaging and reporting applications
The Magnus MagCam HD 8 4K2 HDMI Digital Microscope Camera combines advanced Sony STARVIS 2 sensor technology with ultra-smooth 4K imaging performance for modern microscopy teaching and documentation. With HDMI monitor connectivity, USB 3.0 speed, built-in measurement tools, and standard C-mount compatibility, it is an excellent choice for laboratories and institutions requiring reliable, high-resolution digital microscopy imaging.

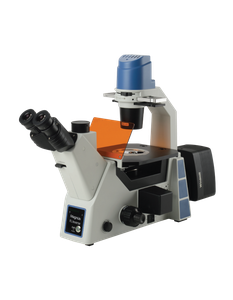

![[INV-FL] Magnus Trinocular Inverted Fluorescence Microscope](/web/image/product.product/48085/image_512/%5BINV-FL%5D%20Magnus%20Trinocular%20Inverted%20Fluorescence%20Microscope%20?unique=65884aa)
![[INV-HL] Magnus Inverted Tissue Culture Trinocular Microscope (LED illumination)](/web/image/product.product/48081/image_512/%5BINV-HL%5D%20Magnus%20Inverted%20Tissue%20Culture%20Trinocular%20Microscope%20%28LED%20illumination%29?unique=65884aa)

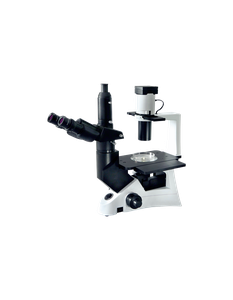

![[INV-HLPK] Magnus Inverted Tissue Culture Trinocular Microscope with Accessory Package (Halogen (6V 30W))](/web/image/product.product/48084/image_512/%5BINV-HLPK%5D%20Magnus%20Inverted%20Tissue%20Culture%20Trinocular%20Microscope%20with%20Accessory%20Package%20%28Halogen%20%286V%2030W%29%29?unique=65884aa)
