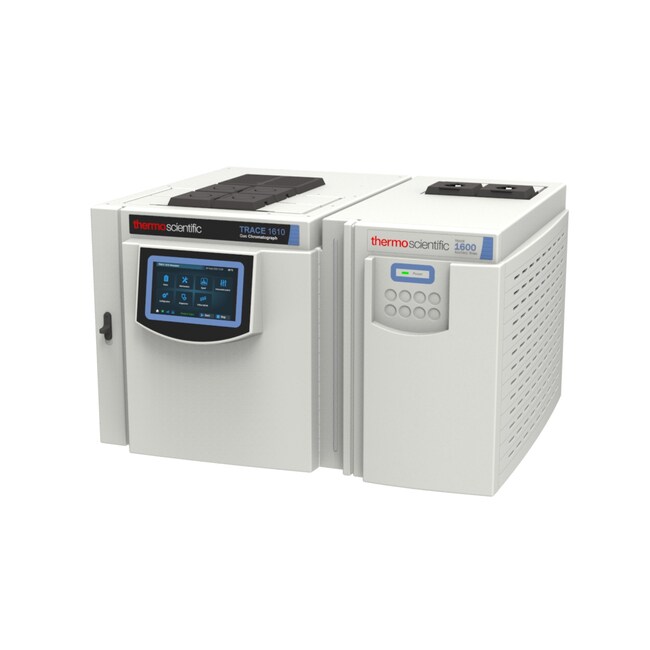

Thermo Scientific™ TRACE™ 1610 Gas Chromatograph, 230 V
Catalog No :
CAS Number :
Brand :
In Stock
Package Components;
1 × Trace 1610 GC instrument
2 × TCD detectors
1 × Auxiliary oven
4 × Packed GC columns
3 × Valves (2 × 10-port, 1 × 6-port)
2 × 250 μL sample loops
All fittings, tubing, actuators, and hardware are preinstalled
Chromeleon 7.3 SE Software for GC
License key
2 × Super Clean Filter Kits (base + triple cartridge)
Complete commissioning package, test data, methods, plumbing diagrams, troubleshooting guides, and consumables list documentation
Specifications:
| Application | Gas Chromatography | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Analytical Instrument | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Analytical grade | ||
Dedicated Analyzer for Hydrogen & Permanent Gas Analysis | 230 V
The Thermo Scientific™ TRACE™ 1610 Permanent Gas Analyzer is a turnkey, high-performance gas chromatography system engineered for precise quantification of hydrogen and permanent gases in industrial, laboratory, and process environments. The configuration H2PGA1602011-230 is a fully integrated system designed to analyze H₂, O₂, N₂, CO, CO₂, and hydrocarbons up to C₃, using a dual-channel GC platform equipped with two independent iConnect™ Thermal Conductivity Detectors (TCDs).
Built on the robust, modular TRACE™ 1610 GC platform, this analyzer arrives fully assembled, configured, and factory tested, complete with validated methods, plumbing schematics, and a comprehensive documentation package. It is optimized for continuous performance, maximum uptime, and ease of maintenance in demanding industrial gas monitoring operations.
System Overview & Analytical Workflow
Dual-Channel Analytical Configuration
-
Channel 1 (TCD 1)
- Dedicated to Hydrogen (H₂)
- Uses Argon (Ar) carrier gas for enhanced sensitivity
-
Channel 2 (TCD 2)
- Analyzes O₂, N₂, CO, CO₂, and hydrocarbons up to C₃
- Uses Helium (He) carrier gas
- Each TCD is independently controlled and recorded as separate channels for maximum analytical flexibility and regulatory compliance.
Turnkey System Integration
-
Fully configured with:
- Auxiliary valve oven
- Four packed columns
- Two 250 μL sample loops
- Three switching valves (Hastelloy C)
- Entire system is pre-plumbed, leak-tested, and validated before shipment.
Detailed Configuration
TRACE™ 1610 Gas Chromatograph
- “1000-holes” fast GC architecture
- Oven temperature range: +3 °C above ambient to 450 °C
- Temperature programming: 32 ramps / 33 plateaus
- Max heating rate: 125 °C/min
- Cool-down: 450 °C → 50 °C in <4 minutes
- Seven independent heated zones
- Communication: LAN + USB
-
User Interface:
- 7" HD 720p color touchscreen
- Real-time signal monitoring
- Instrument & consumable health tracking
- Guided maintenance videos
- Multilingual interface
- USB for updates
Detectors – 2 × iConnect™ TCD Modules
- Dual-filament, single-column micro-volume Ni/Fe cell
- MDL: <400 pg tridecane/mL with He carrier
- Linear dynamic range: 10⁵
- Integrated electronic gas control (IEC)
- Compatible with 1/8" & 1/16" packed columns
- Max temperature: 400 °C
- Acquisition rate: 300 Hz
- Rapid plug-and-play replacement reduces downtime
Column Configuration
- 2 × 6' × 1/8" SS Porapak N 80/100
-
2 × 6' × 1/8" SS Molecular Sieve 5A
Configured for sequential separation of permanent gases and light hydrocarbons.
Valve Package
- 1 × VICI 6-port Hastelloy C valve (series bypass)
-
2 × VICI 10-port Hastelloy C gas-actuated valves
- Equipped with 250 μL sample loops
- Includes column reversal routing for extended column life
- All fittings, actuators, solenoids, and tubing are pre-installed and tested.

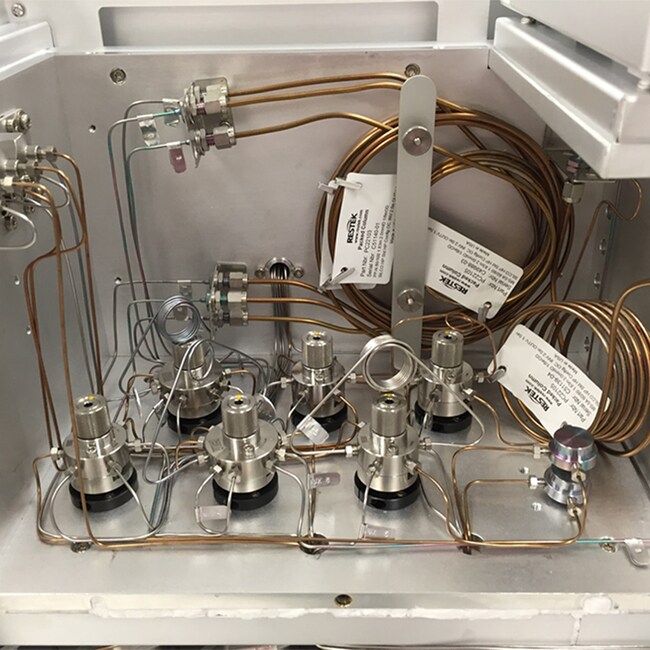

Auxiliary Oven
Large, independently heated chamber providing:
- Up to 2 additional isothermal heated zones (max 300 °C)
- Capacity for 8 diaphragm valves or 6 rotary valves
- Support for mounting additional iConnect™ detectors
- Optimized thermal management to stabilize column performance
Documentation Package
Included:
- Full method details
- Plumbing schematics with annotations
- Setup & troubleshooting guide
- Spare parts and recommended consumables list
- Example chromatograms and performance benchmarks
This ensures rapid installation, validation, and ongoing maintenance.
Included Software & Accessories
| Part Number | Description |
|---|---|
| 7100.0108 | Chromeleon™ 7.3 for GC SE |
| 7350.0104A | Chromeleon 7 License Key |
| 60180-829 | SUPERCLEAN Filter Kit (Base + Triple Cartridge), Qty: 2 |
Specifications
| Parameter | Value |
|---|---|
| Function | Hydrogen + Permanent Gas Analyzer |
| Voltage | 230 V |
| Detector Type | 2 × TCD |
| Inlet Type | Gas Sampling Valves |
| Column Capacity | Up to 4 packed columns |
| Dimensions (L×W×H) | 67 × 75 × 45 cm |
| Unit Size | Each |
The TRACE™ 1610 Permanent Gas Analyzer (H2PGA1602011-230) is a robust, fully optimized solution for laboratories and industrial facilities requiring high-precision hydrogen and permanent gas analysis. Its dual-channel TCD architecture, fast-cycling GC oven, advanced electronics, and modular iConnect detector technology provide unmatched analytical accuracy, speed, and reliability. With its turnkey configuration, comprehensive documentation, and ready-to-run installation, this analyzer minimizes downtime and accelerates productivity in any gas monitoring program.
