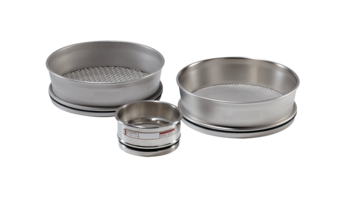

FRITSCH ANALYSETTE™ 3 Test Sieves (8x2-Inches), According to ASTM E11 Mesh with Compliance Certificate

(0 review)

SKU: 35.1020.03

Brand: FRITSCH GmbH

UoM: Each

5,879.45 GH¢

Mesh Width

Store Availability & Pickup

LabMart Limited - Tamale

NS-246, Via, 4388 Tamale-Kumbungu Rd, Tamale, Northern Region, Ghana

Not available

LabMart Limited

10 Rcecourse street, Accra, Greater Accra Region, Ghana

Not available

Add to cart

Estimated delivery: 4-8 weeks

The FRITSCH ANALYSETTE™ 3 Test Sieves (8" diameter, 2" height) are precision-engineered sieves designed for accurate and reproducible particle size analysis in accordance with ASTM E11 standards.

Manufactured from highly alloyed stainless steel, these sieves provide excellent corrosion resistance, mechanical stability, and long service life, making them ideal for both dry and wet sieving applications across a wide range of industries.

Each sieve is laser-engraved, optically measured, and supplied with a compliance certificate, ensuring full traceability and reliability in quality control, research, and regulatory laboratory environments.

Key Features

ASTM E11 Certified Precision
- Meets strict ASTM E11 requirements for mesh accuracy
- Ensures reproducible and standardized results
High-Quality Stainless Steel Construction
- Corrosion-resistant and easy to clean
- Suitable for demanding laboratory conditions
Wide Mesh Size Range
- Available from 63 mm down to 20 µm (No. 635)
- Covers coarse, medium, and fine particle analysis
Laser Engraving & Optical Verification
- Permanent identification and traceability
- Guaranteed mesh accuracy
Contamination-Free Design
- Groove-free mesh transitions
- Prevents material retention and cross-contamination
Compliance Certificate Included
- Supports audits and quality management systems

Technical Specifications

Parameter	Specification
Standard	ASTM E11
Diameter	8 inches (203 mm)
Height	2 inches (50 mm)
Material	Stainless Steel (Frame & Mesh)
Mesh Range	63 mm – 20 µm
Certification	Compliance Certificate Included
Application	Dry and Wet Sieving

Ordering Information

Order No.	Mesh (ASTM / Inch)	Mesh Width
35.0220.03	1"	25 mm
35.0320.03	7/8"	22.4 mm
35.0620.03	3/4"	19 mm
35.0820.03	5/8"	16 mm
35.0920.03	0.53"	13.2 mm
35.1020.03	1/2"	12.5 mm
35.1120.03	7/16"	11.2 mm
35.1220.03	3/8"	9.5 mm
35.1420.03	5/16"	8 mm
35.1520.03	0.265"	6.7 mm
35.1620.03	1/4"	6.3 mm
35.1720.03	3 1/2	5.6 mm
35.1820.03	4	4.75 mm
35.2020.03	5	4 mm
35.2120.03	6	3.35 mm
35.2320.03	7	2.8 mm
35.2420.03	8	2.36 mm
35.2620.03	10	2 mm
35.2820.03	12	1.7 mm
35.2920.03	14	1.4 mm
35.3020.03	16	1.18 mm
35.3220.03	18	1 mm
35.3420.03	20	850 µm
35.3520.03	25	710 µm
35.3620.03	30	600 µm
35.3820.03	35	500 µm
35.4020.03	40	425 µm
35.4120.03	45	355 µm
35.4220.03	50	300 µm
35.4420.03	60	250 µm
35.4620.03	70	212 µm
35.4720.03	80	180 µm
35.4820.03	100	150 µm
35.5020.03	120	125 µm
35.5220.03	140	106 µm
35.5420.03	170	90 µm
35.5820.03	200	75 µm
35.6020.03	230	63 µm
35.6220.03	270	53 µm
35.6620.03	325	45 µm
35.7020.03	400	38 µm
35.7220.03	450	32 µm
35.7620.03	500	25 µm
35.7820.03	635	20 µm

Applications

Construction materials and aggregate testing
Soil and geotechnical analysis
Food and agricultural testing
Pharmaceutical powder analysis
Chemical and mineral processing
Environmental sample testing
Quality control and research laboratories

Comparison Guide

Feature	ASTM E11 Sieves (8")	ISO 3310 Sieves (200 mm)
Standard	ASTM E11	ISO 3310-1
Region	US / International ASTM markets	Europe / International ISO markets
Diameter	8" (203 mm)	200 mm
Mesh Labeling	Mesh number & inch	Metric (mm / µm)
Applications	Construction, aggregates, geotech	Pharma, food, general lab

Unique Advantages

ASTM-compliant precision for regulated testing environments
Wide mesh size selection for full particle distribution analysis
Durable stainless steel construction for long-term use
Traceability through laser engraving and certification
Contamination-free design for reliable results

For optimal workflow:

Use ASTM sieves for construction, civil engineering, and geotechnical labs
Combine with ANALYSETTE™ 3 PRO + AUTOSIEVE software for automated analysis
Build complete sieve stacks (coarse → fine) for full granulometry studies

The FRITSCH ANALYSETTE™ 3 ASTM E11 Test Sieves (8") provide a high-precision, durable, and compliant solution for particle size analysis across demanding laboratory and industrial applications.

With certified accuracy, robust construction, and a wide mesh range, they are essential tools for achieving reliable and reproducible sieve analysis results.

Application: Particle size distribution

Material: Stainless steel

Storage Temperature: Ambient

Product Type: Laboratory Sieves

Product Brand: FRITSCH GmbH

Product Grade: Analytical grade
