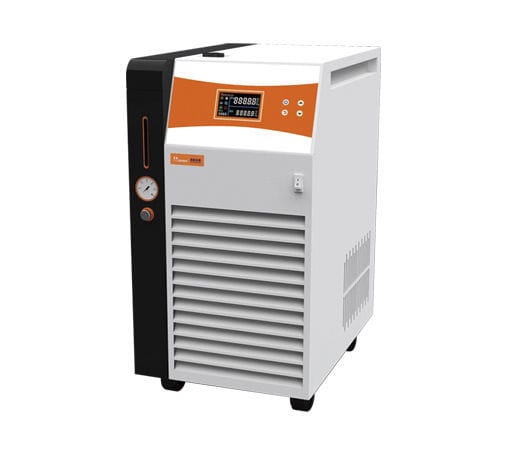

HANON Recirculating Chiller with adjustable temperature control, 220V
Catalog No :
CAS Number :
Brand :
In Stock
Temperature Control Range: 5 °C ~ 40°C
Pump Flow Rate: 20L/min
Pump Capacity Pressure: 0~1.5bar
Filling Volume Litres: 8L
Specifications:
| Application | Temperature Circulation | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Pump | ||
| Product Grade | Laboratory grade | ||
The FC1200 Recirculating Chiller is designed to deliver reliable temperature control and efficient cooling performance for laboratory and industrial applications. Equipped with a TECUMSEH compressor, PID temperature control, and an advanced EEV cooling system, it provides high stability, reduced noise, and enhanced protection for sensitive processes.
With built-in safety features, a color LCD display, and a high-performance circulating water pump, the FC1200 is an ideal solution for long-term continuous operation in demanding environments.
Key Features
- Efficient Cooling System: TECUMSEH compressor ensures strong cooling capacity with low noise.
- Stable PID Temperature Control: EEV technology avoids traditional start-stop cycles and improves thermal stability.
-
Comprehensive Protection:
- Over-temperature protection with auto-alarm.
- Automatic low liquid level detection with alarm.
- Water current detection automatically switches to internal cycle when blocked.
-
High-Performance Water Pump:
- Continuous operation with good sealing to avoid leakage.
- Adjustable pressure (0–1.5 bar) via rotary knob with digital pressure display.
- Easy Monitoring: Color LCD display shows real-time operating data and system status.
- User-Friendly Design: Observation window for water level monitoring, compact footprint, and robust construction.
Applications
- Temperature control for analytical instruments (HPLC, spectroscopy, mass spectrometry).
- Cooling for laboratory reactors and rotary evaporators.
- Industrial and QC labs requiring reliable recirculating cooling.
- Long-duration experiments and continuous operation environments.
Technical Specifications
| Parameter | FC1200 |
|---|---|
| Temperature Control Range | 5°C ~ 40°C |
| Temperature Control | PID |
| Temperature Stability | ±0.3°C |
| Temperature Sensor | PT100 |
| Display Resolution | 0.1°C |
| Pump Flow Rate | 20 L/min |
| Cooling Capacity | 1.2 kW |
| Refrigerant | R134a |
| Pump Pressure | 0–1.5 bar (adjustable) |
| Filling Volume | 8 L |
| Power Supply | AC220V ±10%, 50 Hz |
| External Dimensions (W×D×H) | 550 × 400 × 650 mm |
| Package Dimensions (W×D×H) | 810 × 640 × 980 mm |
| Gross Weight | 87 kg |
The FC1200 Recirculating Chiller provides stable, efficient, and safe temperature control with a robust cooling capacity and intelligent safety features. Its quiet operation, precise PID regulation, and user-friendly interface make it a dependable choice for laboratories and industries requiring continuous cooling performance and process reliability.
