Digital Telethermometer (Without Probe & PC)
Catalog No :
CAS Number :
Brand :
In Stock
For Measuring the Temperature of Laboratory Animals
Temperature: 0 – 60°C
Specifications:
| Application | Temperature Monitoring | Warranty | 1 Year |
| Storage Temperature | Room Temperature | ||
| Product Type | Thermometer | ||
| Product Brand | ORCHID Scientific | ||
| Product Grade | Laboratory grade | ||
The Digital Telethermometer is a precision-engineered instrument designed for continuous, real-time temperature monitoring in laboratory animals. It is an indispensable tool for research and studies in anesthesia, cardiac surgery, hyperthermia, and pyrogen testing.
With its multichannel PC-based architecture and pharmacopoeia-compliant protocol support (USP, EP, JP, KP, BP), the system ensures data integrity, regulatory compliance, and reliable performance in controlled experimental environments.
Key Features
- Research-Ready Design: Ideal for studies in anesthesia, cardiac surgery, hyperthermia, and pyrogen testing.
- Pharmacopoeia Protocol Compliance: Supports creation of USP, EP, JP, KP, and BP-specific test protocols.
-
Dual Operating Modes:
- Normal Mode: Offers manual or automatic data logging, with customizable parameters such as experiment name, animal type, sex, number of channels, readings, and time intervals.
- Pharmacopoeia Mode: Enables setup of predefined pharmacopoeia standards, preliminary and main tests, and automatic grouping of pre-test passed animals.
- High Accuracy & Fast Response: Measures within a range of 0–60°C with ±0.1°C accuracy and 0.01°C resolution.
- Secure Software: Password-protected access with administrative privileges for data protection.
- Comprehensive Data Management: Export data to Excel or PDF, generate calibration and experiment reports, and visualize data graphically.
- Built-in Calibration: Allows external device calibration and automatic calibration report generation.
- Alarm & Error Features: Provides alerts for temperature deviations beyond limits and sensor malfunctions.
- Animal-Specific Probes: Supplied with temperature probes for mice, rats, and rabbits—each optimized for size and connection, including a silicone ring for safe attachment to rabbit tails.
System Specifications and Models
| Model | Number of Channels | Temperature Range | Temperature Resolution | Temperature Accuracy |
|---|---|---|---|---|
| TERM-8 Plus | 8 | 0° to 60°C | 0.01°C | ±0.1°C |
| TERM-16 Plus | 16 | 0° to 60°C | 0.01°C | ±0.1°C |
Optional Temperature Probes
| Probe Type | Tip Diameter | Cord Length | Connector Type |
|---|---|---|---|
| Probe for mouse | 1.5 mm | 3.0 m | 6.3 mm Jack Connector |
| Probe for rat | 3.2 mm | 2.5 m | 6.3 mm Jack Connector |

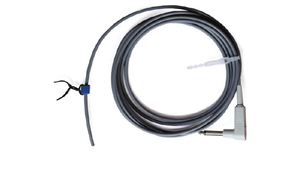

| Probe for rabbit | 4.0 mm | 2.5 m | 6.3 mm Jack Connector (with silicone ring for tail attachment) |
Ordering Information
| Model | Certifications | Power Requirements | Accessories Supplied | Optional |
|---|---|---|---|---|
| TERM-8 Plus | CE Compliant | 220/230V AC 50Hz or 110/120V AC 50–60Hz* | Control unit, IQ & OQ validation documents, temperature probes for rat and rabbit | Temperature probe for mouse; rabbit probe with silicone ring |
| TERM-16 Plus | CE Compliant | 220/230V AC 50Hz or 110/120V AC 50–60Hz* | Control unit, IQ & OQ validation documents, temperature probes for rat and rabbit | Temperature probe for mouse; rabbit probe with silicone ring |
* Power configuration to be specified when ordering.
Software Interface Overview
Normal Mode
- Select experiment mode and choose Auto or Manual Data Logging.
- Record date, time, and temperature readings automatically.
- Review experiment logs and export results in PDF or Excel.
- Generate detailed experiment reports after completion.
Pharmacopoeia Mode
- Select or create Pharmacopoeia Standard (USP, EP, JP, KP, or BP).
- Conduct Preliminary Test and automatically evaluate pass/fail results.
- Group animals based on pre-test outcomes and proceed to Main Test.
- Record, visualize, and export data in Excel or PDF format.
- Generate group-wise or combined reports with graphical presentations.
Additional Information
- Each rabbit probe is equipped with a silicone securing ring for tail attachment.
- System calibration ensures traceable accuracy and performance reliability.
- Ongoing product improvements may lead to specification changes without prior notice.
The Digital Telethermometer represents a highly versatile and accurate solution for monitoring the body temperature of laboratory animals in regulated research environments. Its dual-mode operation, pharmacopoeia compliance, and advanced data handling features make it an essential tool for laboratories conducting toxicological studies, vaccine development, and physiological monitoring.
- Channel: 8-Channels 16-Channels
