Adjustable Mobile Tray Rack Complete with 10 × Euro Containers & Breaks
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Entomology, General use |
| Storage Temperature | Ambient |
| Product Type | Storage Racks |
| Product Grade | Laboratory grade |

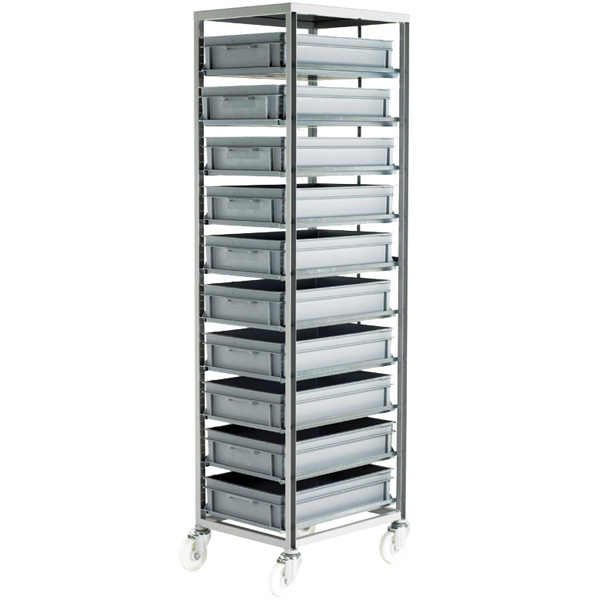

The Adjustable Mobile Tray Rack CT271 is a versatile workplace storage and handling solution supplied complete with 10 Euro containers. Designed with fully adjustable tray levels and up to 60 possible runner positions, it allows users to configure the rack according to the size and frequency of items being stored.
Built with a durable steel rack frame and practical polypropylene containers, this mobile tray rack is ideal for organising small parts, consumables, tools, accessories, samples, and general workplace materials. Its compact footprint, swivel castors, and adjustable tray layout make it suitable for laboratories, warehouses, workshops, manufacturing areas, stores, and technical service departments.
Key Features
- Supplied complete with 10 Euro containers
- Fully adjustable tray levels for flexible storage
- Up to 60 possible runner positions
- Strong steel rack with light grey epoxy finish
- Polypropylene containers for durable small-item storage
- Maximum load capacity of 200 kg UDL
- Mobile design with 4 × 100 mm nylon swivel castors
- Total stop brakes available for secure positioning
- Metal strap prevents trays from being pushed through during loading
- Compact and practical for workplace organisation
Applications
- Laboratory consumables storage
- Warehouse and stockroom organisation
- Small parts and components storage
- Workshop tools and accessories storage
- Production and assembly area organisation
- Maintenance and technical service departments
- Hospital, school, and institutional storage areas
- General workplace material handling
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Adjustable mobile tray rack |
| Reference | CT271 |

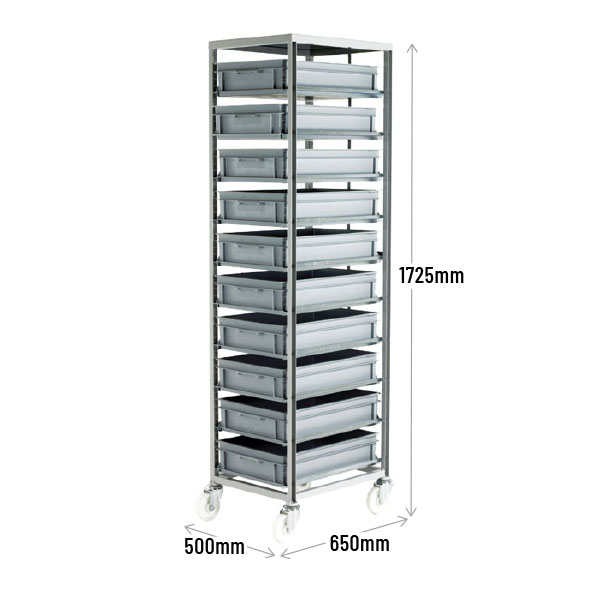

| Overall Dimensions (H × W × D) | 1725 × 500 × 650 mm |
| Container Dimensions (L × W × H) | 600 × 400 × 120 mm |
| Number of Containers | 10 |
| Maximum Load Capacity | 200 kg UDL |
| Rack Material | Steel |
| Container Material | Polypropylene |
| Colour | Grey / light grey epoxy |
| Castors | 4 × 100 mm nylon swivel castors |
| Brakes | Total stop brakes available |
| Empty Weight | 25 kg |
| Runner Positions | 60 possible positions |
Construction Details
| Component | Description |
|---|---|
| Base | Welded square-section steel tube base |
| Uprights | Formed sheet steel uprights |

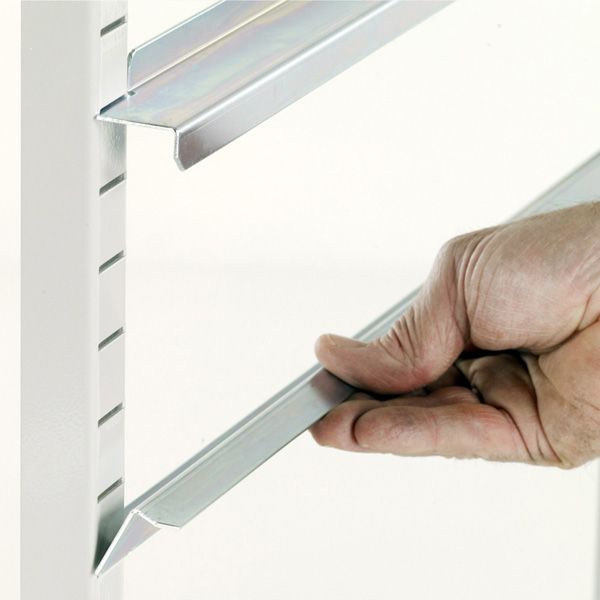

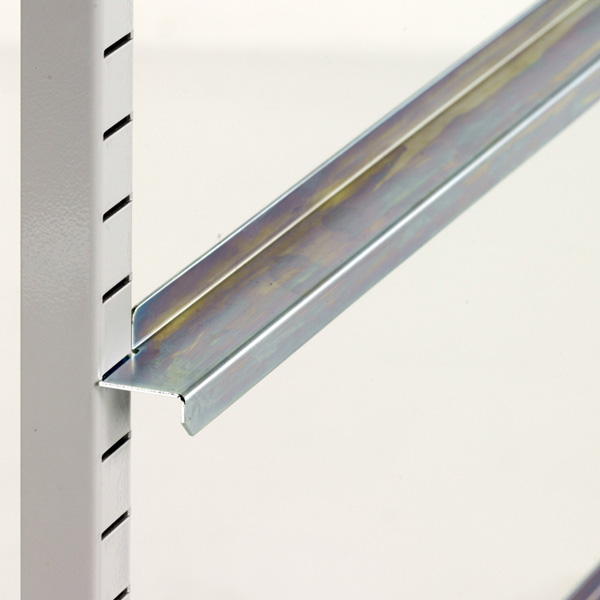

| Tray Supports | Zinc-plated tray supports |
| Containers | 10 × Euro containers |
| Mobility | 4 swivel castors |
| Safety Feature | Rear metal strap prevents trays being pushed through |
Unique Advantages
- Adjustable storage layout for different workplace needs
- Mobile design supports easy movement between work areas
- High storage capacity while maintaining a compact footprint
- Strong 200 kg UDL capacity for routine industrial and laboratory use
- Supplied complete with containers, reducing setup time
- Suitable for organising small items in controlled, clean, or busy environments
The Adjustable Mobile Tray Rack CT271 is a practical and durable storage solution for laboratories, workshops, warehouses, and production environments. With its adjustable runner system, 10 Euro containers, strong steel frame, and 200 kg load capacity, it provides a flexible and mobile way to organise small items efficiently while improving workplace order and accessibility.
