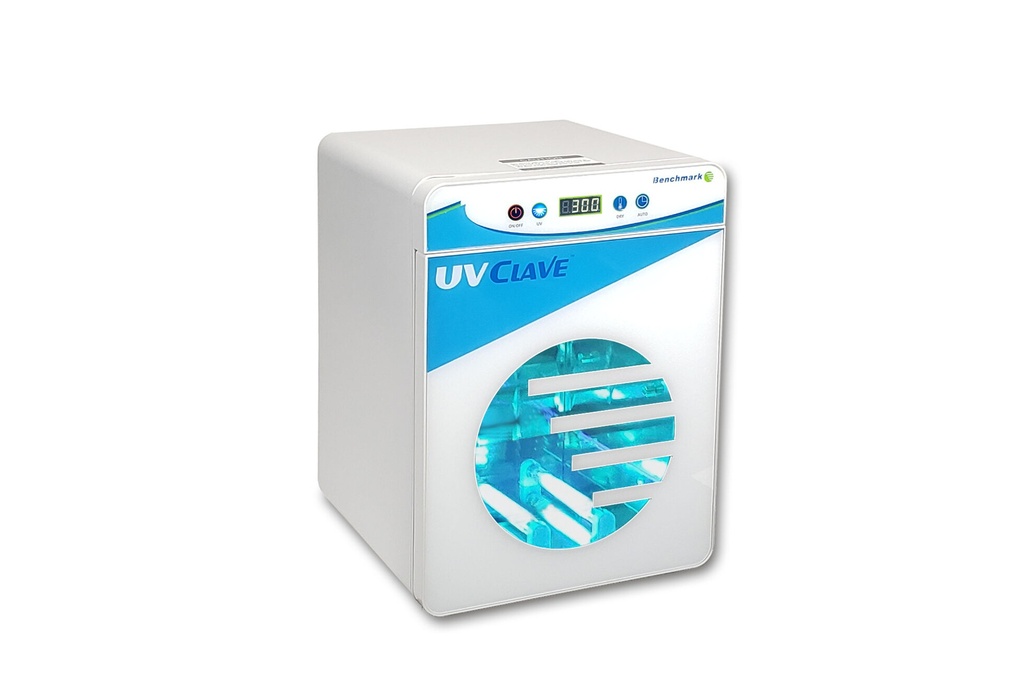

Benchmark Scientific UV Clave™ Ultraviolet Chamber, 230 V
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | sterilization | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | BenchMark Scientific | ||
| Product Grade | Laboratory grade | ||
The UV Clave™ Ultraviolet Chamber is a specialized UVC decontamination system designed to improve the reliability and quality of PCR and molecular biology workflows by effectively reducing the risk of DNA, RNA, viral, and bacterial contamination on PCR vessels, consumables, and small laboratory tools.
Engineered specifically for PCR laboratories, molecular diagnostics units, research institutes, and teaching laboratories, the UV Clave™ provides uniform, high-intensity ultraviolet irradiation in a compact, enclosed chamber to ensure thorough surface decontamination prior to amplification procedures.
Principle of Operation
The UV Clave™ uses short-wave ultraviolet light (254 nm UVC) to inactivate nucleic acids and microorganisms by inducing irreversible damage to DNA and RNA. This prevents amplification of contaminating genetic material and reduces false positives in PCR-based assays.
- Multiple UVC lamps combined with reflective interior walls deliver true 360° irradiation
- A proprietary UV-C transparent shelf eliminates shadowing and blind spots
- Ensures consistent exposure across all surfaces of PCR tubes, plates, pipette tips, and accessories
Key Features & Benefits
Enhanced PCR Contamination Control
- Inactivates DNA, RNA, viruses, and bacteria
- Reduces carryover contamination between PCR runs
- Improves reproducibility and confidence in PCR results
True 360° UV Irradiation
- Six high-output UVC lamps ensure uniform exposure
- Reflective chamber walls maximize UV efficiency
- Eliminates missed coverage common in conventional UV boxes
Proprietary Shelf System
- Combination of UV-C transparent shelf and stainless-steel wire shelves
- Prevents shielding and shadowing of samples
- Allows flexible placement of PCR consumables
Adjustable UV & Heat Cycles
- UV timer: 5–20 minutes (5-minute increments)
- Standard UV dosage: 600 mJ/cm² in a 20-minute cycle
-
Optional heating function:
- Temperature: 55 °C
- Timer: 30–120 minutes
- Supports combined UV + heat decontamination for enhanced effectiveness
Applications
- PCR and qPCR contamination control
- Molecular biology research laboratories
- Clinical and academic research labs (RUO)
- Preparation of PCR tubes, plates, and vessels
- Decontamination of small laboratory tools and accessories
Technical Specifications
| Parameter | Specification |
|---|---|
| SKU | B1450 |
| UV Lamps | 6 × 4 W |
| UV Wavelength | 254 nm (UVC) |
| UV Intensity | >500 µW/cm² (center of chamber) |
| UV Dosage | 600 mJ/cm² (20 min cycle) |
| UV Timer | 5–20 min (5 min increments) |
| Heater Temperature | 55 °C |
| Heater Timer | 30–120 min (30 min increments) |
| Internal Dimensions | 8.5 × 10.1 × 12.2 in (21.6 × 25.6 × 31.8 cm) |
| External Dimensions | 11.5 × 10.5 × 15.7 in (29.2 × 26.7 × 40 cm) |
| Maximum Item Height | 30 cm |
| Shelf Dimensions | 10 × 8 in (25.4 × 20.3 cm) |
| Shelf Material | 2 stainless steel wire + 1 UV-C transparent |
| Weight | 11 lbs (5 kg) |
| Electrical | 230 V / 50 Hz |
| Power Consumption | 110 W |
| Warranty | 2 years |
Safety & Compliance
- Fully enclosed UV chamber minimizes user exposure
- Designed strictly for Research Use Only (RUO)
- Suitable for controlled laboratory environments
- Operate in accordance with institutional UV safety guidelines
The UV Clave™ Ultraviolet Chamber is a high-performance contamination control solution for PCR and molecular biology laboratories. Its combination of high-intensity 254 nm UVC irradiation, true 360° coverage, shadow-free shelf design, and adjustable UV and heat cycles makes it an essential tool for maintaining clean workflows and reliable PCR results
