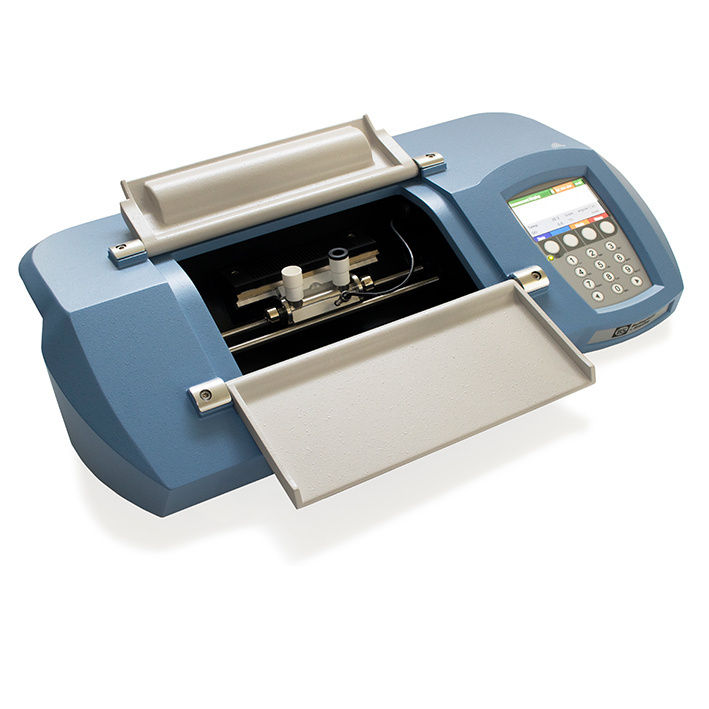

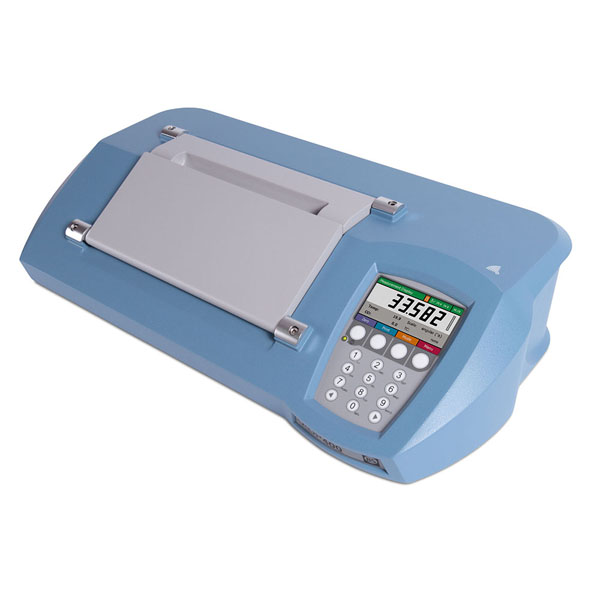

The Bellingham + Stanley® ADP430 Single Wavelength Polarimeter is a high-precision analytical instrument designed for measuring optical rotation in substances that exhibit optical activity. Optical rotation measurement is widely used in sugar analysis, pharmaceutical quality control, food testing, and chemical research to determine the concentration, purity, and stereochemical properties of compounds.

The ADP430 belongs to the ADP400 Series of digital polarimeters, renowned for combining advanced optical technology, robust construction, and compliance with international pharmacopeia standards. The instrument uses a long-life yellow LED light source with an interference filter that produces light at the sodium D wavelength (589 nm). This wavelength is the globally accepted standard for polarimetric measurements in many analytical protocols.

The maintenance-free LED technology eliminates the need for periodic lamp replacement, significantly reducing instrument maintenance while providing stable optical output for accurate measurements over long periods.

The ADP430 is designed for laboratories that prefer to use an external water bath for temperature control or do not require active temperature stabilization. This flexibility makes the instrument particularly popular in sugar laboratories, food processing facilities, chemical industries, and academic research laboratories.

Key Features

Advanced Optical System

• 589 nm sodium wavelength LED with interference filter
• Maintenance-free light source with >100,000 hours lifespan
• Photodiode detector for high sensitivity and stability
• Capable of measuring samples with optical density up to 3.0 OD

High Measurement Accuracy

• Resolution: up to 0.001° angular rotation
• Accuracy: ±0.010°A
• Excellent reproducibility: ±0.002°A
• Wide measurement range for both angular and sugar scales

Flexible Measurement Modes

• Continuous measurement mode
  • Monitors stability of samples and instrument readings
  • Provides averaged stable measurement
• Single-shot measurement mode
  • Provides a discrete measurement value
  • Ideal for pharmaceutical SOP environments where operator interpretation must be minimized

Pharmacopoeia Compliance

The ADP430 is suitable for regulated laboratory environments and complies with:

• USP (United States Pharmacopeia)
• EP (European Pharmacopoeia)
• BP (British Pharmacopoeia)
• JP (Japanese Pharmacopoeia)

Measurements are performed at 589 nm, which is the required wavelength for many official analytical methods.

User-Configurable Scales and Methods

The ADP430 includes a comprehensive methods library allowing users to measure:

• Angular Rotation (°A)
• International Sugar Scale (°Z)
• Specific Rotation
• Concentration calculations
• Invert sugar
• Inversion (A-B) calculations
• Custom user-defined scales and methods

This flexibility makes the instrument suitable for food analysis, pharmaceutical testing, and chemical research laboratories.

Temperature Management

The ADP430 does not include internal temperature control but can be used with external water baths for temperature stabilization.

Temperature features include:

• Operating range: 5–40 °C
• Temperature compensation options: ICUMSA, Quartz, or user-defined
• Sensor accuracy: ±0.1 °C

For laboratories requiring automatic temperature control, the ADP450 model with XPC Peltier temperature technology is recommended.

Data Management and Connectivity

Advanced Data Storage

The instrument features expanded internal memory capable of storing:

• More than 8,000 measurements
• Full instrument configuration logs
• Measurement audit trails

LIMS and Digital Reporting

Data can be exported to:

• Laboratory Information Management Systems (LIMS)
• Secure PDF reports
• External USB storage devices

Connectivity Options

The ADP430 supports multiple interfaces for laboratory integration:

• USB
• Ethernet
• RS232 (via optional USB adaptor)

This enables connection to:

• Barcode scanners
• Printers
• External storage devices

Compliance and Data Integrity

The ADP430 includes features designed for regulated environments, supporting compliance with:

• GLP (Good Laboratory Practice)
• FDA 21 CFR Part 11

Security features include:

• Password-protected calibration and configuration
• Electronic audit trail
• RFID-based login options

These capabilities make the instrument suitable for pharmaceutical, food, and regulated laboratory environments.

User Interface

The ADP430 features a 4-inch high-definition full-colour display that provides clear visualization of measurement results and instrument status.

The intuitive interface allows users to:

• Easily configure measurement methods
• Monitor measurement progress
• Access stored results
• Export data efficiently

Applications

The ADP430 polarimeter is widely used in:

Sugar and Food Industries

• Sugar purity analysis
• Determination of sucrose concentration
• ICUMSA sugar scale measurements
• Beverage and food ingredient testing

Pharmaceutical Industry

• Optical purity determination
• Quality control of chiral compounds
• Compliance with pharmacopeial methods

Chemical Industry

• Optical rotation measurements
• Chiral compound analysis
• Organic compound characterization

Academic and Research Laboratories

• Optical activity studies
• Stereochemistry analysis
• Chemical and biochemical research

General Specifications

Temperature Specifications

The Bellingham + Stanley ADP430 Single Wavelength Polarimeter is a reliable and highly accurate instrument for optical rotation measurements in laboratory and industrial environments. Its maintenance-free LED optical system, high precision measurement capability, flexible method configuration, and strong regulatory compliance features make it an excellent choice for laboratories performing sugar analysis, pharmaceutical quality control, chemical testing, and academic research.
