ChroMate® ELISA Reader

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

This combination does not exist.

Specifications:

Application	Colorimetric Assay, ELISA-Based Assays, Food and feed safety testing, Mycotoxin Analysis	Warranty	1 Year
Storage Temperature	Ambient
Product Type	Laboratory Equipment
Product Brand	Romer Labs, Awareness Technology
Product Grade	Analytical grade

Overview
Resource

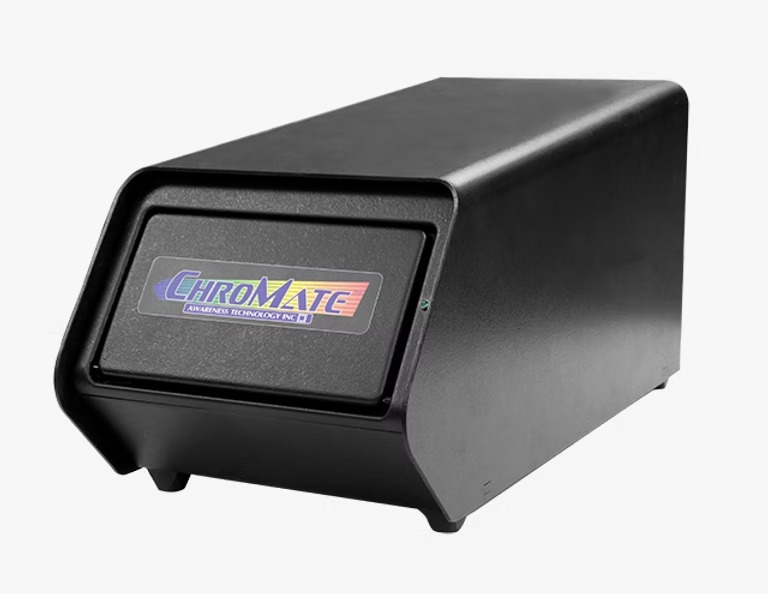

ChroMate® ELISA Reader is a PC-controlled, 8-channel microplate absorbance reader designed for ELISA and microwell plate-based assays. It is suitable for use with multiple microwell plate formats and is equipped with standard absorbance filters for common ELISA wavelengths, making it ideal for AgraQuant® allergen and mycotoxin ELISA test kits.

The reader measures the absorbance of a 96-well plate in approximately 12 seconds, automatically positions the plate, blanks, reads, and calculates results. Supplied with intuitive ChroMate® manager software, it supports several calculation modes and user-friendly data handling for routine laboratory testing.

Key Features

Feature	Details
PC-Controlled Operation	Designed for use with a compatible PC
Fast Plate Reading	Reads absorbance of 96 wells in approximately 12 seconds
8-Channel Reader	Supports rapid absorbance measurement across microwell plates
Standard ELISA Wavelengths	Supplied with 405, 450, 492, and 630 nm standard filters
Additional Filter Options	Optional filters include 405, 450, 492, 545, 600, and 630 nm
Automatic Plate Handling	Automatically positions plate, blanks, reads, and calculates results
ChroMate® Software Included	Manager software supports multiple calculation modes
AgraQuant® Compatible	Suitable for Romer Labs AgraQuant® allergen and mycotoxin ELISA kits
Windows® Compatible Software	Designed for Microsoft® Windows® operating systems

Applications

ChroMate® ELISA Reader is suitable for:

ELISA absorbance reading
Mycotoxin ELISA testing
Allergen ELISA testing
AgraQuant® ELISA workflows
Food and feed safety testing
Agricultural commodity testing
Product testing laboratories
Immunoassay result interpretation
96-well microplate absorbance measurement
Routine quality control and laboratory screening workflows

Technical Specifications

Specification	Details
Product Name	ChroMate® ELISA Reader
Product Number	10002699
Model / Catalog Number	ChroMate 4300 / 4300
Reader Type	PC-controlled ELISA 8-channel microplate reader
Optical Measurement Range	0.0 to 4.0 absorbance units
Photometric Accuracy	±1% of reading + 0.010 from 0 to 1.5 ABS; ±2% of reading + 0.010 from 1.5 to 3.0 ABS
Stability	Drift of no more than 0.005 A in 8 hours
Light Source	Halogen lamp source with lamp saver feature
Standard Wavelengths	405, 450, 492, and 630 nm
Optional Wavelengths	405, 450, 492, 545, 600, and 630 nm
Filter Type	IAD hardcoat interference, 10 nm half bandwidth
Vessel / Plate Format	Standard 96-well microplates or strip trays
Reading Speed	Reads 96 wells in approximately 12 seconds
Plate Transport	Stepper motor
PC Connection	USB port
Power Requirements	100 V or 240 V AC, 70 W, 50–60 Hz, auto-sensing
Software	ChroMate® Manager software included
PC Requirement	PC not included
Enclosure	All metal enclosure
Dimensions	Approx. 7.5 x 8.0 x 16.5 in.; 19 x 20.3 x 42 cm
Weight	11.5 lb; 5.22 kg
Certifications	NRTL listed, CE mark
Country of Origin	Made in U.S.A.
Storage Temperature	-18 °C to -22 °C

Calculation Modes

Calculation Mode
Single point calibration
Point-to-point curve fit
Polynomial regression
Linear and sigmoidal regression
Log and linear curve formats
Cutoff absorbance
Multi-point percentage absorbance

Additional Software Features

Feature	Details
Open System	User-programmable open system
Plate Formatting	Selectable plate formatting
Blank Options	Alpha numeric test naming and automatic blank subtraction
Replicate Handling	Duplicate well options
Data Visualization	Curve plotting and editing
User Feedback	Flags and error messages

Ordering Information

Product Number	Product Description
10002699	ChroMate® ELISA Reader

Storage & Handling

Store according to supplier recommendations. Operate the reader in a clean, dry laboratory environment using a compatible PC and USB connection. Ensure the correct filters and Romer Labs protocols are selected for the relevant AgraQuant® allergen or mycotoxin ELISA test kit.
