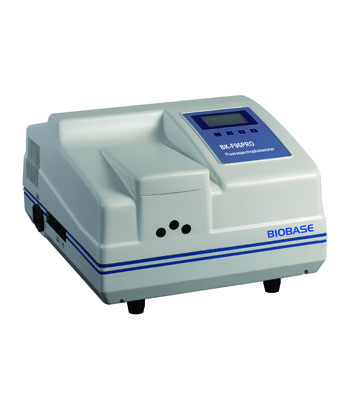

Biobase Fluorescence Spectrophotometer with software
Catalog No :
CAS Number :
Brand :
In Stock
Light Source: Hamamatsu 150W Xenon lamp
Specifications:
| Application | Spectrophotometry, Analytical Chemistry |
| Storage Temperature | Ambient |
| Product Type | Benchtop meters |
| Product Brand | BIOBASE |
| Product Grade | Analytical grade |
The BK-F96PRO Fluorescence Spectrophotometer is a high-performance analytical instrument designed for sensitive fluorescence detection and spectral analysis in scientific laboratories. Fluorescence analysis enables researchers to measure excitation and emission spectra, fluorescence intensity, emission lifetime, and polarization fluorescence, providing valuable insights into molecular interactions and sample composition.
With its high sensitivity, wide dynamic range, and precise optical system, the BK-F96PRO delivers accurate measurements for trace analysis and micro-sample detection. The system supports both online and offline operation modes, and features multi-stage emission spectrum scanning for detailed spectral analysis.
Fluorescence spectrophotometry is widely used in medical research, clinical diagnostics, biochemistry, environmental monitoring, food analysis, and organic and inorganic chemistry.
Key Features
- Dual measurement modes: fluorescence intensity and luminous intensity
- High sensitivity detection with Raman peak S/N ≥150
- 10-stage emission spectrum scanning for detailed spectral analysis
- Wide linear measurement range ensuring accurate quantification
- Hamamatsu 150W Xenon lamp for stable, high-intensity excitation
- Interference optical filter system for precise wavelength selection
- Support for online and offline operation modes
- Multiple optional LED excitation wavelengths
- Adjustable response time and sensitivity settings
- Stable and reliable optical design for micro-sample analysis
Applications
The BK-F96PRO Fluorescence Spectrophotometer is suitable for a wide range of laboratory applications, including:
- Clinical and medical research
- Biochemistry and molecular biology
- Environmental pollution monitoring
- Food and beverage analysis
- Organic and inorganic chemical analysis
- Pharmaceutical research
- Trace compound detection
- Fluorescent dye and biomolecule analysis
Technical Specifications
| Parameter | BK-F96PRO |
|---|---|
| Light Source | Hamamatsu 150W Xenon Lamp |
| Display | 4-digit LED |
| Excitation Filters | Interference optical filter (365 nm standard) |
| Optional Filter Range | 250–700 nm (25 mm diameter) |
| LED Options | Standard: 365 nm; Optional set: 365, 376, 392, 405 nm |
| Custom LED Range | 360–600 nm |
| Emission Monochromator | C-T diffraction grating |
| Emission Range | 200–900 nm |
| Bandwidth | 10 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | ≤0.5 nm |
| Sensitivity | Raman peak of water S/N ≥150 |
| Detection Limit | 1 × 10⁻⁹ g/mL (quinine sulfate standard) |
| Linear Measurement (r) | ≥0.995 |
| Stability | Better than 1.5% / 10 min |
| Response Time | 0.1–4 seconds (6 stages adjustable) |
| Fluorescence Display Range | 0.00 – 600.00 |
| Power Supply | AC 110/220 V, 50/60 Hz |
| Package Size | 550 × 540 × 380 mm |
| Gross Weight | 13 kg |
Standard Accessories
- 365 nm interference optical filter (preassembled)
- F96PRO software package
- USB interface
- Quartz fluorescence cuvette (10 mm), 1 pair
- RS232 serial port
- Glass fluorescence cuvette (10 mm), 1 pair
Optional Accessories
- 200–700 nm interference optical filters
- Quartz fluorescence sample cells
- Multi-function fluorescent sample rack holder
- Membrane sample rack
- Powder sample rack
- Sample cell jacket
- Octave filters
- 200 µL microcentrifuge tube accessory
- Upconversion fluorescence accessory
- Optional LED excitation set (365, 376, 392, 405 nm)
- Data processing software package
The BK-F96PRO Fluorescence Spectrophotometer offers high sensitivity, flexible excitation options, and precise spectral analysis, making it an excellent solution for laboratories requiring reliable fluorescence detection in research, clinical, and environmental applications.
