The BIOBASE Class II A2 Biological Safety Cabinet (BSC) is a compact, high-performance containment system designed to provide superior protection for personnel, products, and the environment during microbiological and molecular biology procedures. With its 700 mm space-saving footprint, this cabinet is ideal for laboratories with limited bench space while still delivering full Class II A2 biosafety protection compliant with international biosafety standards.
Engineered with a high-efficiency H14 HEPA filtration system (99.995% efficiency at 0.3 μm) and a balanced airflow system (70% recirculation and 30% exhaust), the cabinet ensures optimal containment of hazardous aerosols. The inclusion of a motorized front window, microprocessor control system, LCD display, and remote control operation enhances usability, operator safety, and workflow efficiency. Its robust construction with a 304 stainless steel work zone and antimicrobial-coated steel exterior ensures durability, ease of cleaning, and long-term laboratory reliability.
This biosafety cabinet is ideally suited for applications in microbiology, molecular biology, clinical diagnostics, pharmaceutical research, and biosafety-sensitive laboratory environments.
Key Features and Benefits
Compact, Space-Saving Design
- Narrow 700 mm width ideal for laboratories with limited space
- Fully functional Class II A2 biosafety protection in a compact footprint
Advanced HEPA Filtration System
- Dual H14 HEPA filters with 99.995% efficiency at 0.3 μm
- Filter life indicator and pressure monitoring for preventive maintenance
- Protects personnel, samples, and environment from hazardous aerosols
Optimized Airflow Protection
- Class II A2 airflow design: 70% recirculated air, 30% exhaust
- Stable inflow velocity: 0.53 ± 0.025 m/s
- Stable downflow velocity: 0.33 ± 0.025 m/s
- Provides sterile work environment and operator protection
Motorized Front Window and Remote Control Operation
- Motorized sash allows convenient one-hand operation
- Remote control operation up to 6 meters for enhanced safety and convenience
- Ideal for emergency operation and workflow flexibility
Intelligent LCD Display and Microprocessor Control
-
Real-time display of:
- Airflow velocities
- Filter status and life indicator
- Temperature and humidity
- UV lamp working time
- System alarms and diagnostics
Integrated Safety Alarm System
Audio and visual alarms for:
- Abnormal airflow velocity
- Unsafe sash position
- Filter replacement alerts
- High filter pressure
- System malfunction warnings
UV Sterilization System
- 253.7 nm UV lamp ensures efficient decontamination
- UV timer and life indicator for optimal maintenance
- Interlock protection prevents accidental UV exposure
Durable, Laboratory-Grade Construction
- Work surface made of corrosion-resistant 304 stainless steel
- Antibacterial powder-coated cold-rolled steel exterior
- Easy to clean and maintain
Power Failure Memory Function
- Automatically restores previous working state after power interruption
Applications
The BIOBASE Class II A2 Biological Safety Cabinet is suitable for:
- Microbiology laboratories
- Molecular biology and PCR workflows
- Cell culture laboratories
- Clinical diagnostic laboratories
- Pharmaceutical and biotechnology research
- Virology and infectious disease research
- Academic and research institutions
- Biosafety Level 1, 2, and 3 laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 11231 BBC 86 |
| External Dimensions (W × D × H) | 700 × 640 × 1230 mm |
| Internal Dimensions (W × D × H) | 600 × 500 × 530 mm |
| Tested Opening Height | 200 mm |
| Maximum Opening Height | 370 mm |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Downflow Velocity | 0.33 ± 0.025 m/s |
| HEPA Filter Efficiency | 99.995% at 0.3 μm |
| Airflow System | 70% recirculation, 30% exhaust |
| Noise Level | ≤ 67 dB |
| UV Lamp | 15W, 253.7 nm |
| LED Lighting | 2 × 8W |
| Illumination | ≥ 1000 Lux |
| Display | LCD Display |
| Control System | Microprocessor |
| Work Surface Material | 304 Stainless Steel |
| Exterior Material | Antibacterial powder-coated steel |
| Power Consumption | 500 W |
| Power Supply | AC 220V ±10%, 50/60Hz (Optional 110V) |
| Socket | 2 waterproof sockets |
| Work Surface Height | 750 mm (with base stand) |
Standard Accessories
- LED lighting system (2 units)
- UV sterilization lamp
- Remote control unit
- Waterproof electrical sockets (2 units)
- LCD display with microprocessor control
Optional Accessories
- Base stand
- Stainless steel water tap
- Stainless steel gas tap
Compliance and Safety Features
- Class II A2 biosafety containment
- HEPA H14 filtration standard
- Microprocessor-controlled safety monitoring
- UV safety interlock system
- Filter life monitoring and alarm system
The BIOBASE Class II A2 Biological Safety Cabinet (Model 11231 BBC 86) provides an ideal balance of compact design, advanced biosafety protection, intelligent monitoring, and user-friendly operation. Its high-efficiency HEPA filtration, motorized sash, remote control capability, and integrated safety systems ensure reliable protection and efficient workflow in modern laboratories. This cabinet is an excellent solution for laboratories requiring professional-grade biosafety containment in a space-efficient configuration.
Brochure: Class II A2 Biosafety Safety Cabinet
The BIOBASE Class II A2 Biological Safety Cabinet (BSC) is a compact, high-performance containment system designed to provide superior protection for personnel, products, and the environment during microbiological and molecular biology procedures. With its 700 mm space-saving footprint, this cabinet is ideal for laboratories with limited bench space while still delivering full Class II A2 biosafety protection compliant with international biosafety standards.
Engineered with a high-efficiency H14 HEPA filtration system (99.995% efficiency at 0.3 μm) and a balanced airflow system (70% recirculation and 30% exhaust), the cabinet ensures optimal containment of hazardous aerosols. The inclusion of a motorized front window, microprocessor control system, LCD display, and remote control operation enhances usability, operator safety, and workflow efficiency. Its robust construction with a 304 stainless steel work zone and antimicrobial-coated steel exterior ensures durability, ease of cleaning, and long-term laboratory reliability.
This biosafety cabinet is ideally suited for applications in microbiology, molecular biology, clinical diagnostics, pharmaceutical research, and biosafety-sensitive laboratory environments.
Key Features and Benefits
Compact, Space-Saving Design
- Narrow 700 mm width ideal for laboratories with limited space
- Fully functional Class II A2 biosafety protection in a compact footprint
Advanced HEPA Filtration System
- Dual H14 HEPA filters with 99.995% efficiency at 0.3 μm
- Filter life indicator and pressure monitoring for preventive maintenance
- Protects personnel, samples, and environment from hazardous aerosols
Optimized Airflow Protection
- Class II A2 airflow design: 70% recirculated air, 30% exhaust
- Stable inflow velocity: 0.53 ± 0.025 m/s
- Stable downflow velocity: 0.33 ± 0.025 m/s
- Provides sterile work environment and operator protection
Motorized Front Window and Remote Control Operation
- Motorized sash allows convenient one-hand operation
- Remote control operation up to 6 meters for enhanced safety and convenience
- Ideal for emergency operation and workflow flexibility
Intelligent LCD Display and Microprocessor Control
-
Real-time display of:
- Airflow velocities
- Filter status and life indicator
- Temperature and humidity
- UV lamp working time
- System alarms and diagnostics
Integrated Safety Alarm System
Audio and visual alarms for:
- Abnormal airflow velocity
- Unsafe sash position
- Filter replacement alerts
- High filter pressure
- System malfunction warnings
UV Sterilization System
- 253.7 nm UV lamp ensures efficient decontamination
- UV timer and life indicator for optimal maintenance
- Interlock protection prevents accidental UV exposure
Durable, Laboratory-Grade Construction
- Work surface made of corrosion-resistant 304 stainless steel
- Antibacterial powder-coated cold-rolled steel exterior
- Easy to clean and maintain
Power Failure Memory Function
- Automatically restores previous working state after power interruption
Applications
The BIOBASE Class II A2 Biological Safety Cabinet is suitable for:
- Microbiology laboratories
- Molecular biology and PCR workflows
- Cell culture laboratories
- Clinical diagnostic laboratories
- Pharmaceutical and biotechnology research
- Virology and infectious disease research
- Academic and research institutions
- Biosafety Level 1, 2, and 3 laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 11231 BBC 86 |
| External Dimensions (W × D × H) | 700 × 640 × 1230 mm |
| Internal Dimensions (W × D × H) | 600 × 500 × 530 mm |
| Tested Opening Height | 200 mm |
| Maximum Opening Height | 370 mm |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Downflow Velocity | 0.33 ± 0.025 m/s |
| HEPA Filter Efficiency | 99.995% at 0.3 μm |
| Airflow System | 70% recirculation, 30% exhaust |
| Noise Level | ≤ 67 dB |
| UV Lamp | 15W, 253.7 nm |
| LED Lighting | 2 × 8W |
| Illumination | ≥ 1000 Lux |
| Display | LCD Display |
| Control System | Microprocessor |
| Work Surface Material | 304 Stainless Steel |
| Exterior Material | Antibacterial powder-coated steel |
| Power Consumption | 500 W |
| Power Supply | AC 220V ±10%, 50/60Hz (Optional 110V) |
| Socket | 2 waterproof sockets |
| Work Surface Height | 750 mm (with base stand) |
Standard Accessories
- LED lighting system (2 units)
- UV sterilization lamp
- Remote control unit
- Waterproof electrical sockets (2 units)
- LCD display with microprocessor control
Optional Accessories
- Base stand
- Stainless steel water tap
- Stainless steel gas tap
Compliance and Safety Features
- Class II A2 biosafety containment
- HEPA H14 filtration standard
- Microprocessor-controlled safety monitoring
- UV safety interlock system
- Filter life monitoring and alarm system
The BIOBASE Class II A2 Biological Safety Cabinet (Model 11231 BBC 86) provides an ideal balance of compact design, advanced biosafety protection, intelligent monitoring, and user-friendly operation. Its high-efficiency HEPA filtration, motorized sash, remote control capability, and integrated safety systems ensure reliable protection and efficient workflow in modern laboratories. This cabinet is an excellent solution for laboratories requiring professional-grade biosafety containment in a space-efficient configuration.
![[11231BBC86] BIOBASE Class II A2 Biological safety Cabinet With Base Stand & Remote Control, 700mm Wide](/web/image/product.product/7281/image_512/%5B11231BBC86%5D%20BIOBASE%20Class%20II%20A2%20Biological%20safety%20Cabinet%20With%20Base%20Stand%20%26%20Remote%20Control%2C%20700mm%20Wide?unique=96c5da2)
![[BYKG-I] BIOBASE Class I Biological Safety Cabinet, 540 mm wide](/web/image/product.product/7282/image_512/%5BBYKG-I%5D%20BIOBASE%20Class%20I%20Biological%20Safety%20Cabinet%2C%20540%20mm%20wide?unique=96c5da2)
![[BYKG-II] BIOBASE Class I Biological Safety Cabinet, 680 mm wide](/web/image/product.product/7283/image_512/%5BBYKG-II%5D%20BIOBASE%20Class%20I%20Biological%20Safety%20Cabinet%2C%20680%20mm%20wide?unique=96c5da2)

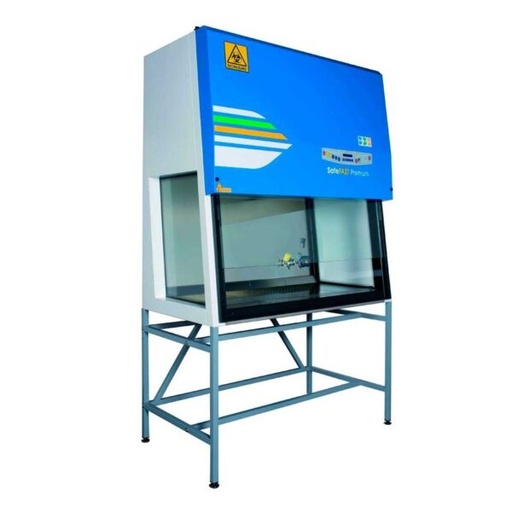

![[F0A025200000] SafeFAST Premium 212, Class II Microbiological Safety Cabinet, 4ft/1.2m](/web/image/product.product/25110/image_512/%5BF0A025200000%5D%20SafeFAST%20Premium%20212%2C%20Class%20II%20Microbiological%20Safety%20Cabinet%2C%204ft-1.2m?unique=aa1ae57)

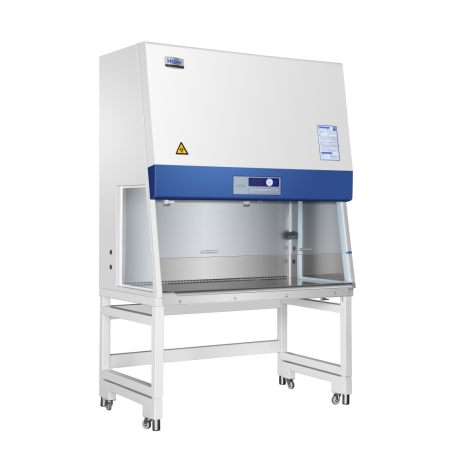

![[HR1200-IIA2] Haier Biomedical Biological Safety Cabinet, Class II, Type A2 (Internal Lenght: 1.31 Meters)](/web/image/product.product/33218/image_512/%5BHR1200-IIA2%5D%20Haier%20Biomedical%20Biological%20Safety%20Cabinet%2C%20Class%20II%2C%20Type%20A2%20%28Internal%20Lenght:%201.31%20Meters%29?unique=f3713d6)
