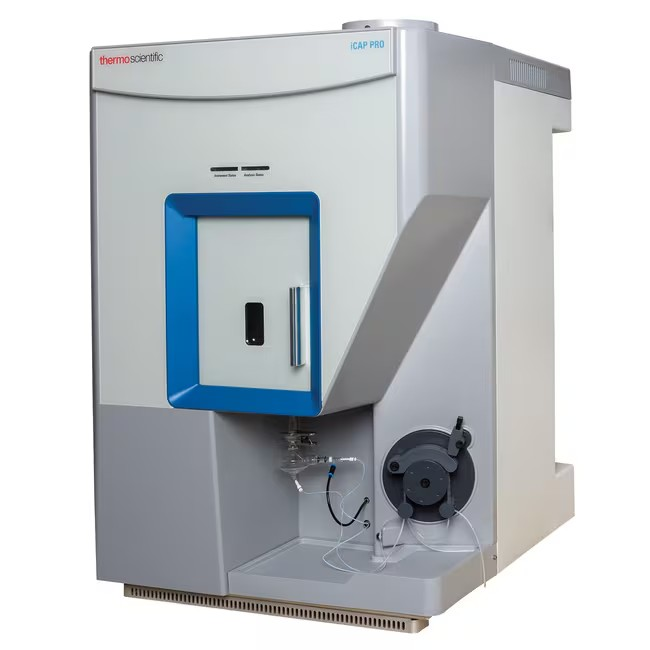

Thermo Scientific™ iCAP™ PRO ICP-OES Radial System with PC
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Elemental Analysis | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Analytical Instrument | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Analytical grade | ||
The Thermo Scientific™ iCAP™ PRO ICP-OES Radial system delivers robust, high-throughput, and interference-resistant elemental analysis for laboratories requiring dependable trace metal quantification. Engineered with a compact benchtop footprint, this instrument combines vertical plasma geometry, thermostated optics, CID detection, and advanced gas control to produce exceptional analytical stability across a wide range of matrices.
Designed for high productivity in environmental, food, pharmaceutical, mining, petrochemical, academic, and industrial QC laboratories, the iCAP PRO ICP-OES Radial provides superior multi-element performance compared to single-element AAS systems. Its automated workflows, durable construction, and intuitive software make it ideal for both routine and demanding applications.
Key Features
High Robustness & Matrix Tolerance
- Vertical torch configuration prevents salt buildup, enhances plasma stability, and improves tolerance to challenging matrices.
- Corrosion-resistant inner torch box extends system life and reduces maintenance needs.
High Sensitivity & Spectral Resolution
- Purged echelle polychromator with thermostatic temperature control ensures long-term wavelength stability.
- Cross-dispersing prism enables a fine 7 pm spectral bandpass for reduced spectral interferences.
- CID821 detector delivers full-spectrum simultaneous detection from 167 to 852 nm.
Stable Plasma Generation
- Solid-state 27.12 MHz RF generator optimized at 1150 W for high-energy, consistent plasma.
- Three independent mass flow controllers precisely regulate nebulizer, plasma, and auxiliary gases.
Improved Workflow & Ease of Use
- Qtegra™ ISDS software simplifies method creation, data acquisition, and batch processing.
- Built-in diagnostics, real-time signal monitoring, and health tracking features minimize downtime.
- Quick-release semi-demountable torch enables fast cleaning and replacement.
Safety & Reliability
- Interlock drain sensor automatically shuts down system if sample leaks occur.
- ACT label certification supports sustainable laboratory operation with reduced environmental impact.
Included System Components
The iCAP PRO ICP-OES Radial package includes the following:
1. ICP-OES Instrument Core
- iCAP PRO simultaneous echelle spectrometer
- CID821 random-access full-wavelength detector
- Vertical EMT radial torch
- Thermostatically controlled polychromator
- Built-in RF generator (27 MHz, 1150 W)
2. Gas and Sample Handling
- Three-channel peristaltic pump (0 or 45 rpm) for internal standard addition and sample delivery
-
Three mass flow controllers (MFCs):
- Plasma gas: 12.5 L/min (fixed)
- Auxiliary gas: 0.5 L/min (fixed)
- Nebulizer gas: 0.3–0.8 L/min (tunable)
3. Standard Sampling Kit
- Concentric glass nebulizer
- Glass cyclonic spray chamber
- EMT Radial torch body
- 1.5 mm bore quartz center tube
4. Software
-
Thermo Scientific™ Qtegra™ Intelligent Scientific Data Solution™ (ISDS):
- Automated optimization
- Wavelength selection
- Method editing and batch analysis
- Integrated QC tools
- Post-processing and reporting
5. Built-In Safety & Maintenance Tools
- Interlock drain system
- Torch alignment aids
- Real-time plasma monitoring
- System diagnostic tools
- Preventive maintenance alerts
| Product Code | Description | Qty |
|---|---|---|
| BRE731400 | iCAP PRO Radial ICP-OES (main instrument) | 1 |
| BRE0020413 | iCAP PRO CountKit UK/IE Type D (compatible with ThermoFlex/Labtech chillers) | 2 |
| BRE0020564 | Qtegra ISDS Software + License Card (1 instrument, 3 desktop seats) | 1 |
| 842313050711 | Test Solutions for iCAP Series ICP-OES (including Multi-Element Test Solution & Blank Solution) | 1 |
| 430122821401 | Multi Element Test Solution (10 elements in 0.2% HNO₃) | 1 |
| BRE0032826 | 27-inch PC Monitor | 1 |
| 842314050004 | Data Station (100/230 V, 50/60 Hz) | 1 |
| BRE0019958 | iCAP PRO Radial Organics Kit | 1 |
| 842312051531 | Viton Sample Pump Tubing for Organics (Orange/White, Pack of 6) | 1 |
| 842312051541 | Viton Drain Pump Tubing for Organics (White/White, Pack of 6) | 1 |
Specifications
| Parameter | Value |
|---|---|
| Detector Type | CID821 |
| Wavelength Range | 167–852 nm |
| Spectrometer | Simultaneous echelle |
| Spectral Bandpass | 7 pm at 200 nm |
| Plasma Viewing | Radial |
| Torch Orientation | Vertical |
| RF Source | 27 MHz, 1150 W |
| Nebulizer Gas Flow | 0.3–0.8 L/min (MFC) |
| Plasma Gas Flow | 12.5 L/min (MFC stabilized) |
| Auxiliary Gas Flow | 0.5 L/min (MFC stabilized) |
| Peristaltic Pump | 3-channel |
| Warm-Up Time | 1 hr (cold), 15 min (standby) |
| Dimensions | 690 × 615 × 933 mm |
| Sampling Kit | Nebulizer, spray chamber, torch, center tube |
| Purge Gas Flow | 3.4 L/min |
| Unit Size | Each |
The Thermo Scientific™ iCAP™ PRO ICP-OES Radial is a powerful, reliable, and user-friendly solution for laboratories requiring high-quality, simultaneous multi-element analysis. Its rugged design, advanced optics, precise gas control, and intelligent software platform ensure exceptional accuracy, long-term stability, and reduced operating costs. Backed by ACT environmental certification, the iCAP PRO supports both scientific performance and sustainability goals. It is an ideal choice for high-throughput elemental workflows across diverse industries, offering superior performance compared to conventional AAS systems.
